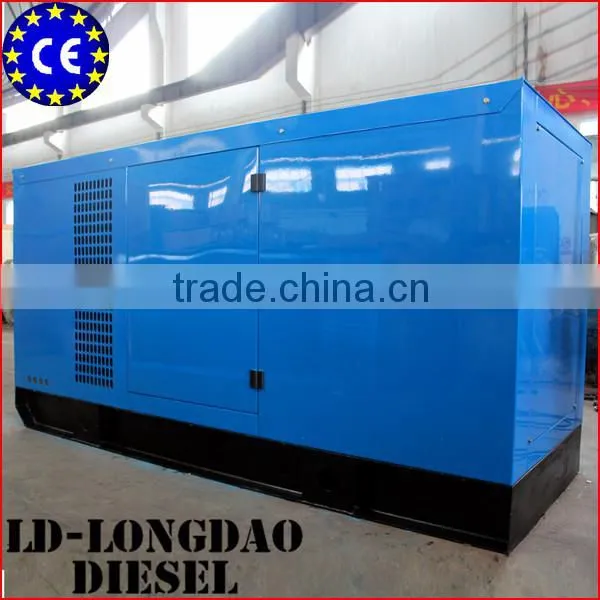

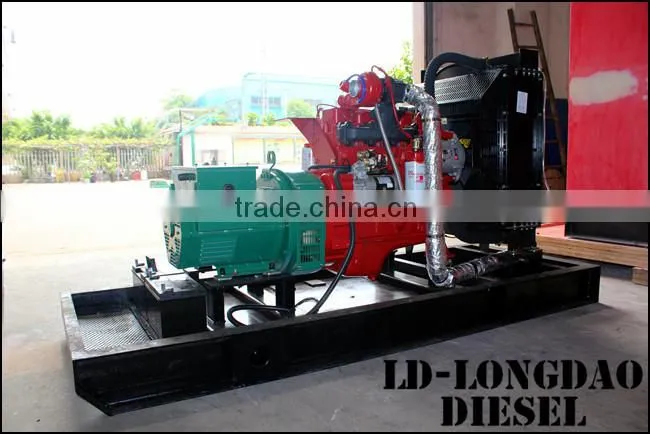

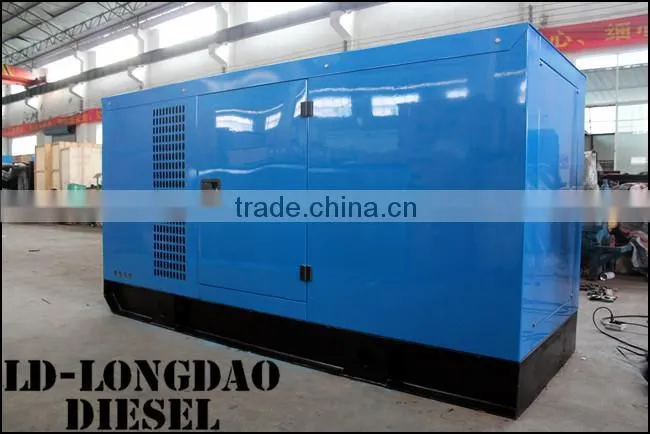

LD30GF 30KW Super 4BT3.9 Silent Diesel Generators

Name: LD30GF 30KW Super 4BT3.9 Silent Diesel Generators
Brand: LD Brand
SKU: 109102005

US$ 4,150 - 5,565 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

LD Brand

Model Number:

LD30GF

Liuzhou Long Dao Industrial And Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name LD Brand

Model Number LD30GF

Output Type AC Three Phase

Speed 1500, 1800 r/min

Frequency 50, 60 HZ

Rated Power 30KW/37KVA

Rated Voltage 400/230 V, 380/220 V

Rated Current 54 A

Specifications

1. DCEC Technology
2. Price less 20%~30% than Origin
3. ISO9001, CE Approved
4. Share DCEC Origin 4BT Engine Pars

LD30GF 30KW Super 4BT3.9 Silent Diesel Generators

LD 4BT diesel Generator is design by our factory Liuzhou Power Co.,Ltd, which our factory has been

specialized in this power machine field more than 15 years; a morden engines and generator set production line

is built! Now our facotry have approve ISO9001:2008 and CE certiicates. Base on good quality and super

experience in our LD generator set, products have sold to all over the world, country like Thailand, Indonesia,

Laos, Albania, Haiti etc.

LD 4BT3.9 diesel geneartor technology is origin from China DCEC Engine conpanies; For our LD

4BT 20~200KW diesel generator set, we assembly it with our own produced LD Diesel Enigne

4BT, 6BT, 6CT, 6LTAA.

l Engines Applications Equipped our own LD4BT disel engines, lower fuel consumption, lower noise, convenient

maintanecne and share spare parts with DCEC parts supply system;

l Alternator & Controller Wattek brand alternator 184, 224, made by Stamford technoloty; Smartgen controller 6120;

l Genset Characteristics 24V Electric start; radiator can meet environment temperature 50 degree;

Genset Model (LD Brand)		LD22GF	LD30GF	LD40GF	LD50GF
Rated Power/Speed (kw/r/min)		22/1500	30/1500	40/1500	50/1500
LD4BT Engine	Engine Model	LD4B3.9-G1	LD4BT3.9-G1	LD4BTA3.9-G1	LD4BTAA3.9-G2
	Rated Power/Speed kw/r/min	24/1500	36/1500	50/1500	55/1500
	Type	Vertical,inline, water-cooled, four stroke
	Intake Way	Natural	Turbocharged	Turbocharged & Inter-cooled
	cylinders-bore×stroke (mm)	4-102x120
	Total displacement(L)	3.9
	Min fuel consumption (g/kw.h)	≤225	≤205	≤195	≤195
	Starting type	Electric
	Speed governor model	Mechanical			Electric
	Oil capacity(L)	10-12
	Low noise limit dB (A)	98
Wattek Alternator	Alternator model	184F	184H	224D	224E
	Rated voltage (V)	400/230 or 380/220
	Current( A)	39.6	54	72	90
	Freq( Hz)	50 or 60
	Regulator approach	AVR
	Power factor (CosØ)	0.8 Lagging
	Phase	3Phase 4Wire
	Insulation Class	F / H
	Protection Class	IP22 / IP23
Genset Packing	Net weight (kg)	680
Genset Packing	Genset dimension LWH (mm)	1800x800x1400
