Home > Industrial Equipment & Components > Engine & Part > Engine > LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine

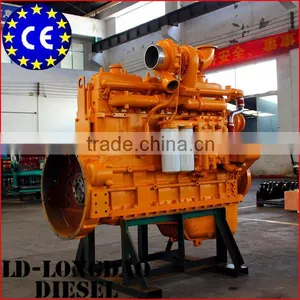

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine thumbnail-1
LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine thumbnail-2
LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine thumbnail-3

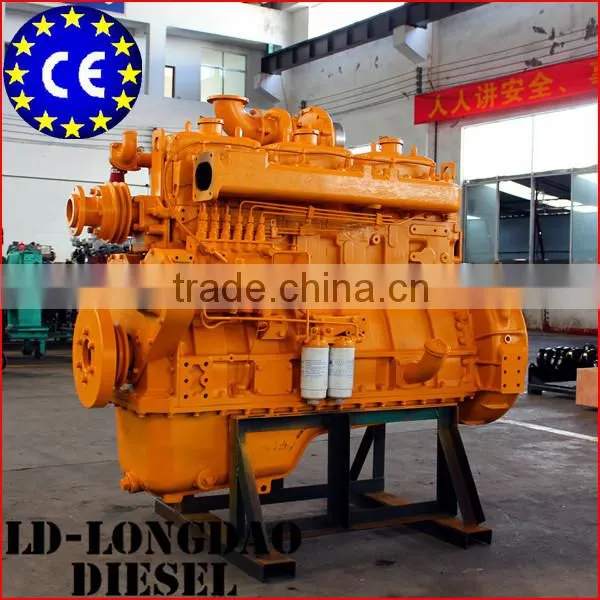

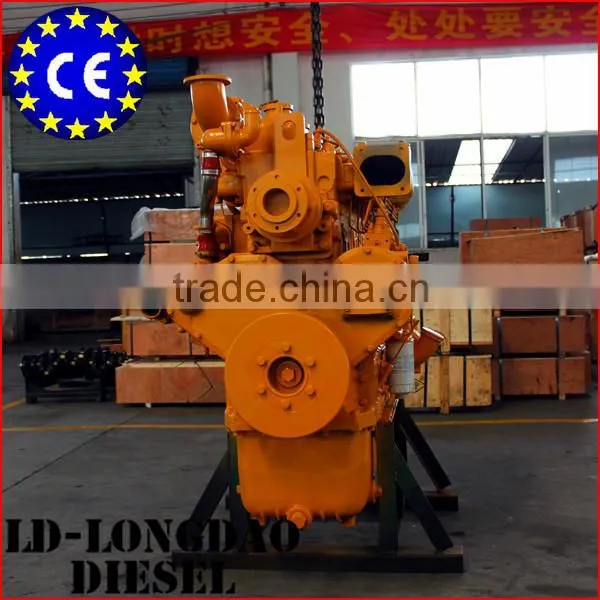

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine photo-1
LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine photo-2
LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine photo-3
US$ 9,830 - 11,050 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Diesel Generator Set, Power generation
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Diesel Generator Set, Power generation
Fuel Diesel
Stroke 4 Stroke
Cylinder Other, 6 Cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Guangxi, China
Brand Name LD Brand
Model Number LD6MJ570L
Dimension(L*W*H) 1680x920x1120 mm
Weight 1300 kg
Certification ISO9001:2008, CE
Warranty 12 Month
After-sales Service Provided Overseas third-party support available

Specifications

1. Germeny FEV, Yuchai Technology
2. China Diesel Engines, Generator Manufacturer
3. ISO9001:2008, CE Certificates

LD6MJ570L Manufacturer 6 Cylinder Intercooler 4 Stroke Engine

     LD brand diesel engines 6MJ series is our biggest power engine of 6 cylinder, which apply turbocharged

and inter cooled technology, its power range from 364kw to 401kw! Electric start, governor.

Model

LD6MJ550L

LD6MJ570L

LD6MJ600L

Type

Veitical, in-line, water-cooled, 4-stroke

Intake Way

Turbocharged Inter-cooled

No Cylinders, Bore x Stroke(mm)

6-138x168

Displacement(L)

15.1

Compression ratio

17:1

Rated power/speed(kW/r/min)

364/1500

382/1500

382/1800

401/1800

Standby power/speed(kW/r/min)

404/1500

420/1500

420/1800

441/1800

Min fuel consumption g/(kW·h)

≤195

Oil capability(L)

28~30

Oil Consumption g/(kW·h)

≤1.2

Starting Type

Electric Sart

Noise limit dB(A)

≤103

Regulator Approach

Electric

Governing Rate

≤1%

Flywheel house/flywheel

1#14

Suitable height above sea level

≤2500

Dimmension(mm)

1680x920x1120

Net weight(kg)

1300



    LD6MJ  has three different models 6MJ550L, 6MJ570L, 6MJ600L, with 1500rpm and 1800rpm, for

which can be suit for 50HZ or 60HZ alternator to diesel generator set. Good choise for diesel generator

power from 325kw to 360kw.

    With high intessity crankshaft, wet cylider liner, LD6MJ engine is easy to make the maintenance, the max

overhaul can reach over 8,000 hours.

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine

    Besides, we apply P model high pressure fuel pump and model P injection nozzle, which result of lower

fuel consuptions and higher efficient. All engines are characteristic of lower noise, high stability, less fuel consumption, perfect construction, etc.

    If you want to equip with famous alterantor, like Standford, Siemens, it is ok, our 6MJ engines are fully

meet this request.



LD6MJ570L 6 Cylinder Intercooler 4 Stroke Engine Performance

Engine Feature

Lower oil/fuel consumption; lower noise; Small vibration

Combustion Type

Direct Injection

Matched Power of Genset

320kw~360kw

Mached AC Alternator

Stanford, Siemens, any brand AC Three Phase Alternator

Matched Alternator Speed

1500rpm, 1800rpm

Maintanence Spare Parts

Yuchai and LD Brand Engine Parts

Cylinder Block Material

Alloy Cast Iron

Max Overhaul

More than 18,000 hours

Factory Production Period

Within 7 days

 LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine





LD6MJ570L 6 Cylinder Intercooler 4 Stroke Engine Technoloty

1.OEM engine manufacturer in China, Diesel Engine Seller and Chinese Diesel Engine;

2.Technology origin from Germany, FEV, Yuchai companies;

3.With certificates ISO9001:2008, CE(2006/42/EC) approved;

4.Share parts supply system with origin Yuchai engines;

5.D&R (Develop and Research) team/experts have more than 15 experience in this field;

6.Engine assembly solution and CKD service is available to offer to customers;

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine





LD6MJ Diesel Engines Warranty and Maintenance Service

1.Warranty iterms will be issued by our own factory, which is simple and quick;

2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;

3.Parts replacement under warranty will be sent (include sea freight) tobuyers without charges;

4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;

5.Problems caused by customer's incorrect man-made operation will be covered by the user;

6.Part use for overhual and ordinary maintanence will be offered by us in factory price;

7.Skillful engineers of us are available dispatched to customers place for training and service;

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine





Mr.Guangbin Liang (Tony)

(Export/Sales Manager)

Tel: +86 18978043291   Fax: +86 (0)772 2875155

Email: guangbinliang(at)

Skype: guangbin.liang             QQ:491383357

LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine
