Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.

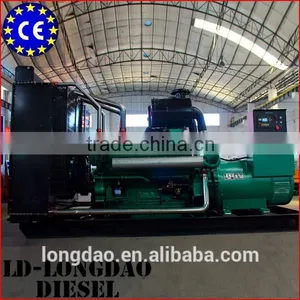

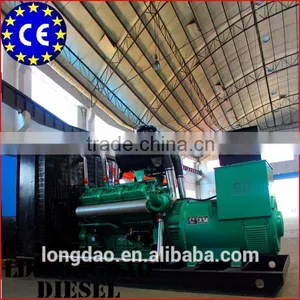

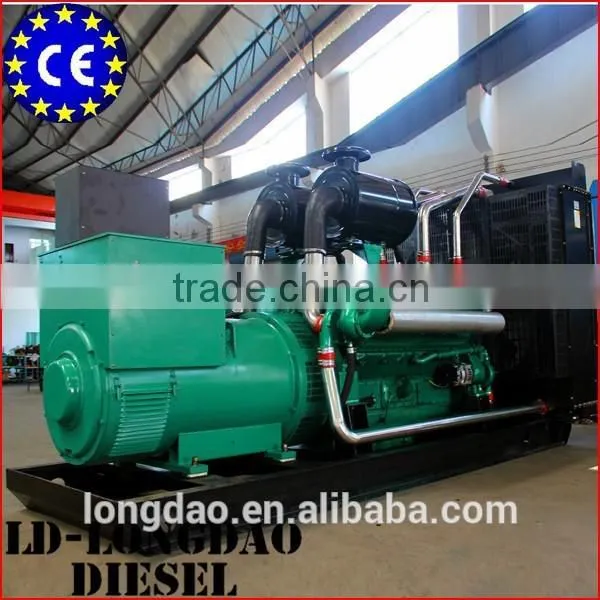

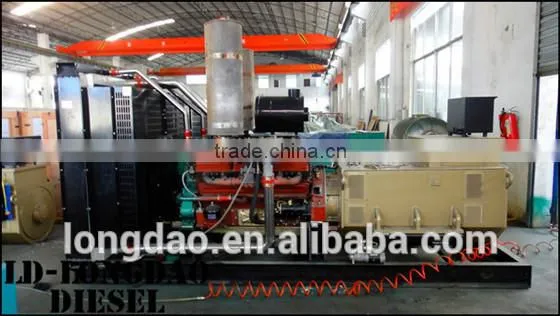

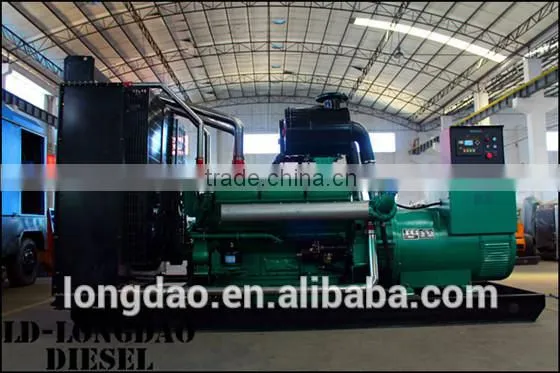

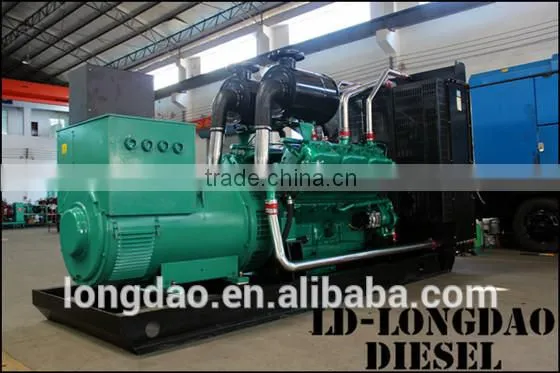

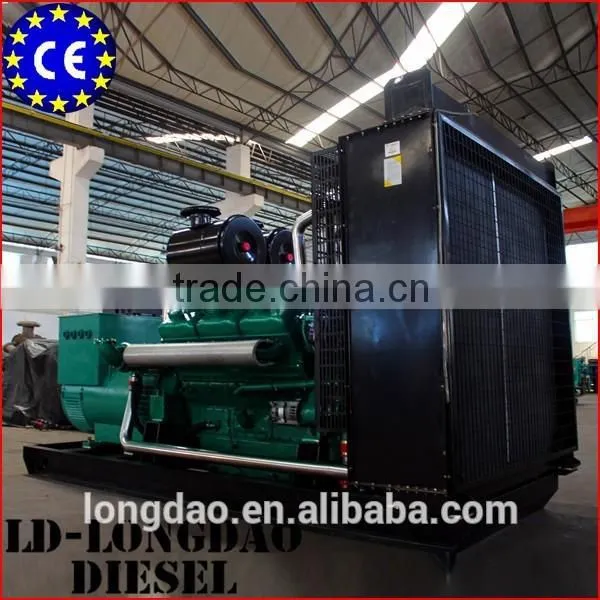

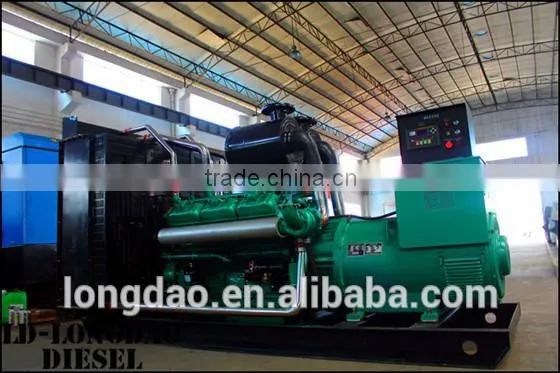

400kw China High Power 12v 3phase Generator Supplier Specification
| Genset Model (LD Brand) | LD400GF | |
| Rated Power/Speed (kw/r/min) | 400/1500 | |
| LD Diesel Engine |
Engine Model | LD12M690L |
| Rated Power/Speed kw/r/min | 459/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged&intercooled | |
| Number of cylinders×bore×stroke(mm) | 12-138×150 | |
| Total dispalcement(L) | 25.8 | |
| Min fuel consumption (g/kw.h) | ≤205 | |
| Starting type | Electric | |
| Speed governor model | Electric | |
| Oil capacity(L) | 50~60 | |
| Low noise limit dB(A) | ≤ 110 | |
| Wattek Alternator (Stamford Technology) |
Alternator nodel | 544C |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 720 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing |
Net weight(kg) | 5000 |
| Genset dimension L*W*H(mm) | 4500×1500×2000 | |
lAdvanced Technology & Design Origin fromYuchai companies,
with more compact structures, engine overhaul can met more than 12000 hours;
lCommon Parts Supply System Parts will share Yuchai engines parts supply system,
cheap and easy to get in current market;
lEnvironmentally Operation Fuel consumption will lower 205g/kw.h, with lesser vibration,
noise; best choice for samll machines
lApplication Diesel genset power range from 400kw to 640kw.
400kw China High Power 12v 3phase Generator Supplier Service
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
|
Ms.Miranda Wang (export/sales manager) Tel: +86 18276782715 Fax: +86 (0)772 2875155 Email: longdao04(at) Skype: LDmirandawang QQ:961156293 |
