CD6112/CD6622 Dual EoC Master Unit

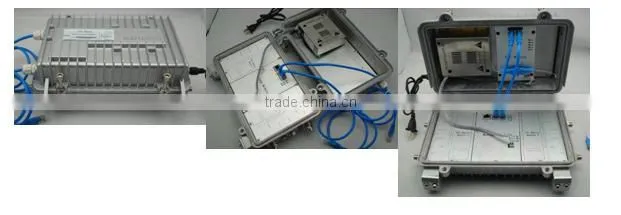

CD6112/CD6622 Ethernet over Coax (EoC) Master unit has dual EoC master units based on Intellon 6400 chips, offering 2 TV RF inputs and 2 COM (TV + Ethernet) RF outputs in one aluminum die casting housing. CD6112/CD6622 has physical layer speed 200Mbps and MAC data rate of 100Mbps, working with up to 506 units EoC slave units based on HomePlug AV. With CD6112/CD6622 excellent high-speed Ethernet distribution capability, CATV operators can have more value-added services besides TV RF. The pictures below are CD6112 outlooking (left), CD6112 with external two Ethernet inputs (central), CD6622 with built-in ONU (right).

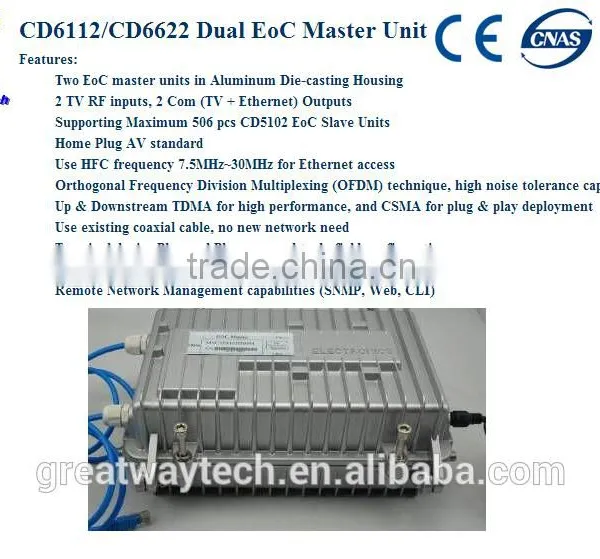

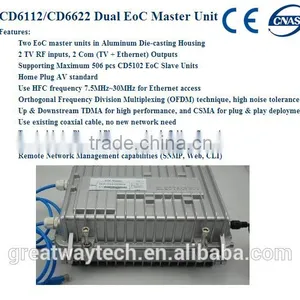

Features:
l Two EoC master units in Aluminum Die-casting Housing
l 2 TV RF inputs, 2 Com (TV + Ethernet) Outputs
l Supporting Maximum 506 pcs CD5102 EoC Slave Units
l Home Plug AV standard
l Use HFC frequency 7.5MHz~30MHz for Ethernet access
l Orthogonal Frequency Division Multiplexing (OFDM) technique, high noise tolerance capability
l Up & Downstream TDMA for high performance, and CSMA for plug & play deployment
l Use existing coaxial cable, no new network need
l Terminal device Plug and Play, no need to do field configuration
l Up to 60dB link dynamic range from Master to slave device
l Remote Network Management capabilities (SNMP, Web, CLI)
l Local Consol management port
l Up & Downstream manageable bandwidth and Dynamic Bandwidth Allocation
l Broadcast Storm Suppression
l Mutual isolation among EoC slave units followed
l Support Slave terminal auto configuration
l Support VLAN, QoS setting
l On-line upgrade
l 60V AC or 110/220V AC power supply
l Using external Ethernet uplink port or optional built-in ONU module
Application

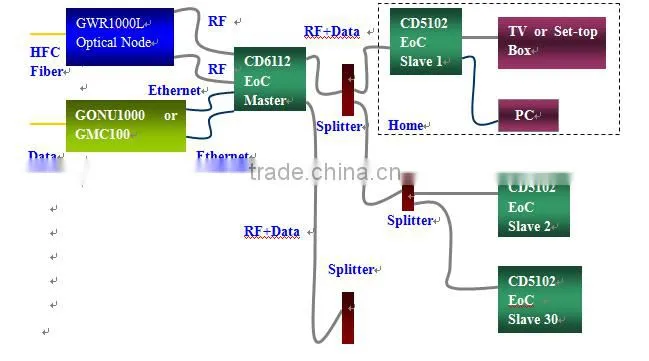

EoC system mainly includes one CD6112/CD6622 Master Unit and a few CD5102 Slave Units. Typically, CD6112/CD6622 Master Unit is located together with CATV Optical Node such GWR1000L and CD5102 Slave Unit is installed next to TV set. One CD6112/CD6622 Master unit can linked with up to 506pcs CD5102 Slave units (To have enough bandwidth for each subscriber on line, we recommend that the slave unit number is less than 60). The typical EoC network architecture is:
Specifications
Parameters |
Specifications |
Model Number |
CD6112 (without built-in ONU), CD6622 (with built-in ONU) |
EPON Standard |
IEEE802.3ah |
Protocol of Network |
IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE802.1P, IEEE802.1Q |
EoC Standard |
IEEE1901(Draft), Home Plug AV |
PHY Speed |
200Mbps |
MAC Speed |
100Mbps |
Frequency Range |
7.5MHz~30MHz |
Multiplex Technology |
TDMA, CSMA |
RF Output Level |
120dBμV |
RF receiving sensitivity |
45dBμV |
Media and impedance |
Coaxial Cable 75 |
RF Return Loss |
>15dB |
Modulation Mode |
OFDM 1024/256/64/16/8-QAM, QPSK, BPSK |
Management |
SNMP, WEB, CLI |
Software |
VLAN, QoS, Dynamic Bandwidth Control, Broadcasting Storm Control |
User Interface |
Two RF Input Port: American F-Type, 75 Two 10/100M Data and one Console Management Port: RJ45 Two RF and Data Hybrid Output: American F-Type, 75 |
Security |
AES-128 |
Operating Temperature |
-10~50°C |
Operating Humidity |
10%~90% Non-condensing |
Dimension |
288×175×125(mm) |
Weight |
3.0Kg (CD6112 without ONU), 3.3Kg (CD6622 with built-in ONU) |
Power Supply |
60V AC or 110/220V AC |
Power Consumption |
<12W (CD6112 without ONU), <16W (CD6622 with built-in ONU) |
Network Management
CD6112/CD6622 has embedded 32 digit CPU for status monitoring, function setting and online management. All EoC slave units connecting to the CD6112/CD6622 master unit can be managed via layer-2 OAM. It is not necessary to set the IP address of EoC slave units. CD6112/CD6622 supports WEB, CLI(Telnet), SNMP Management

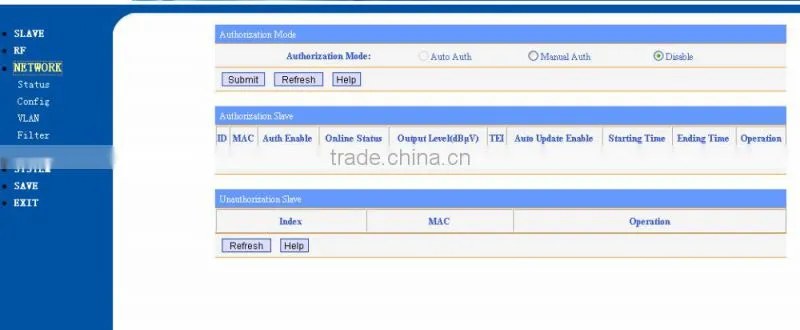

WEB Management Interface is as follows:

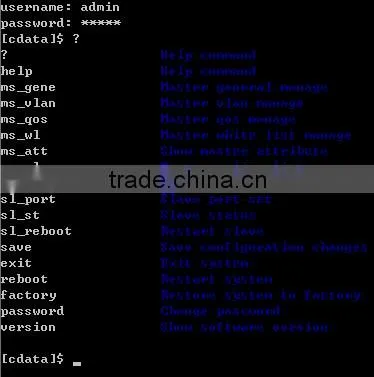

Remote CLI (TELNET) typical command lines are as follows:
CD6112/CD6622 has SNMP AGENT software, supporting any third party SNMP software or Greatway/C-Data EMS software.
