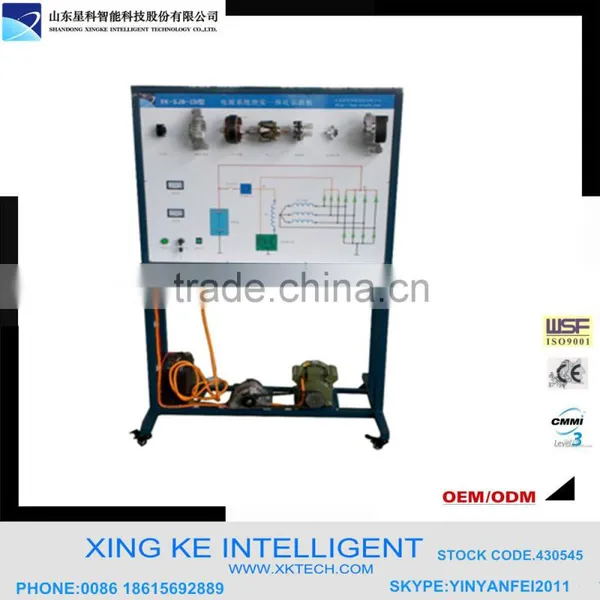

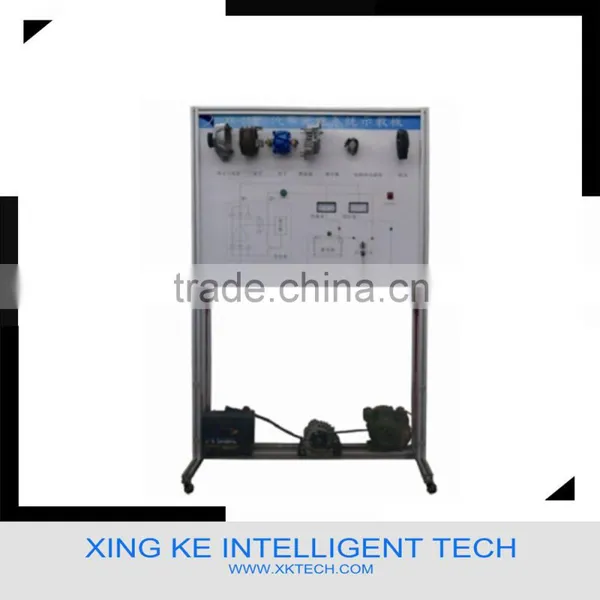

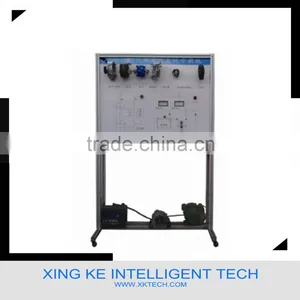

XK-SJB-CD vehicle charging system teaching board
Product Overview:
1. Based on engine generator assembly, training board installed with resolved generator dismounted parts ranged in sequence, different parts marked in different color.
2. Training board below equipped with normal running generator, connect charging circuit to terminal of training panel, under drive of AC motor, could real represent automobile generator working condition.
3. Colorful circuit diagram, in relevant measuring point setting external detection terminal, convenient for students to be familiar with circuit and electrical control principle compared with real object, and directly operate measurement analyze practical training on panel.
4. LED light indication charging working condition.
5. Training panel frame adopts with advanced aluminium alloy section, beautiful appearance, durable. Movable wheels with self lock device, flexbile, convenient to teach. Or training frame adopts with high quality steel tube welded, surface spraying plastics treatment. Equipped with 30 CM width stand for books and tools.
6. Equipped with manual for teacher, suitable for automobile professional teaching and education.
Main parameters:
1 Power supply voltage: 220V AC
2 The generator output voltage: DC14V
3 The working environment: -40 °C ~ 50 °C
4 Size: 1600mm * 1100mm * 200mm
5 Weight:50KG
Main function:
1 Automobile generator physical assembly
2 Physical disintegration of automobile generator
3 DC Ammeter
4 DC voltage meter
5 Single-phase asynchronous motor
6 Color circuit diagram panels, external detection terminal
7 Removable aluminum bench
8 Manual
