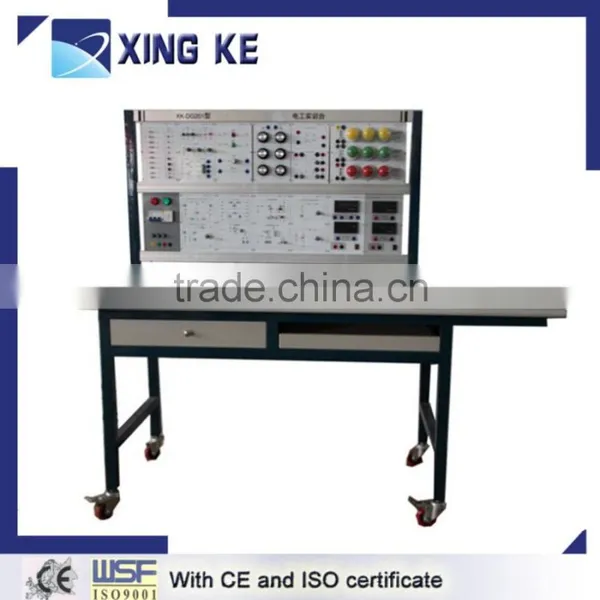

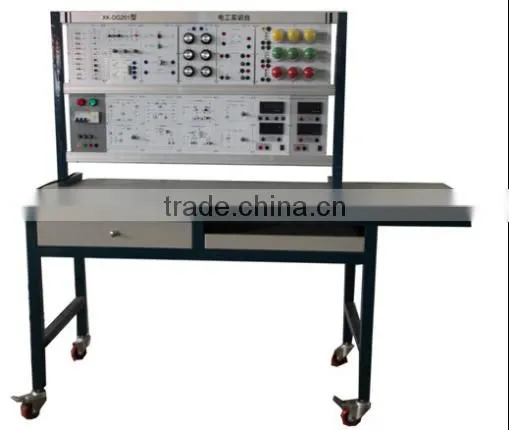

Basic Electrician Skill Training Bench, Electrical Lab Device XK-DG201

                        Basic Electrician Skill Training Bench, Electrical Lab Device XK-DG201

1. Product overview:

XK-DG201 type basic electric training device is designed for electrician law verification, three phase circuit measuring training, electrical components application training and other electrician training content.

Training bench constitutes with moveable platform, power source module, signal source module, adjustable power source module, DC measuring module, AC measuring module, power measuring module, series electrician training module and accessories. This experimental bench can by combination method to finish most basic electrician experiment. Hanging box is complete molded, same size, beautiful appearance.

2. Experiment technical parameters:

  2.1 Power: AC220V±10%, 50HZ, ≤100W

  2.2 Dimension:1700mm×700mm×1600mm (L*W*H)

  2.3 Working environment: 0~+50℃

  2.4 Storage temperature:-20℃~+80℃

  2.5 Humidity: 40~90%RH

2.6 With accident sudden stop button, power source indicator, power supply indicator

3. Signal source technical parameter

3.1 AC15V voltage source

3.2 AC8V voltage source

3.3 DC±5V voltage source

3.4 DC±12V voltage source

3.5 DC24V voltage source

3.6 DC1.25~12V adjustable voltage source output

3.7 Digital signal generator: can generate sine wave, square wave, triangle wave, TTL electrical level;

3.8 Measuring instrument:

Digital DC voltmeter: 0~250VDC

Digital DC amperemeter: 0~500mA

Digital AC voltmeter: 0~500V

Digital AC amperemeter: 0~5A

Digital wattmeter: 0~450V, 0~5A

4. Experimental bench accessories

4.1 Experimental lead wire 30 pcs

4.2 Experimental manual 1 book

5. Experiment list

5.1 Simplest circuit measurement

5.2 Component recognition and resistance serial/parallel connect circuit

5.3 Electrical level, voltage measurement and circuit electrical level diagram drawing

5.4 Circuit component volt-ampere characteristic drawing

5.5 Kirchhof law verification

5.6 Superposition principle verification

5.7 Thevenin law and Norton law verification

5.8 Voltage source and current source equivalent conversion

5.9 Dual port network test

5.10 R,L, C component impedance characteristics determination

5.11 R, L, C serial connect resonance circuit research

5.12 RC frequency selective network characteristic test

5.13 First order dynamic circuit

5.14 Two order dynamic circuit

5.15 By three meters method to measure AC circuit equivalent parameter

5.16 Sine wave steady state AC circuit phase quantity research

5.17 Mutual inductance circuit observe

5.18 Single phase iron core transmission characteristic test

5.19 Three phase AC circuit voltage, current measurement

5.20 Three phase circuit power measurement

5.21 Power factor and phase sequence measurement

5.22 Single phase watt hour meter verification.
