XK-EIM Electrical installation and maintenance training model
1. Product overview
XK-EIM type electrical installation and maintenance training evaluation, is a training platform developed based on factory and indoor electrical installation training. Suit for various colleges and technician school maintenance electrician, electrical installer, plumber and other related professions as public training platform.

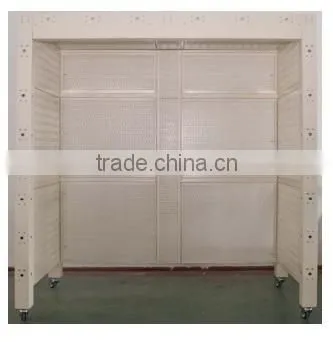

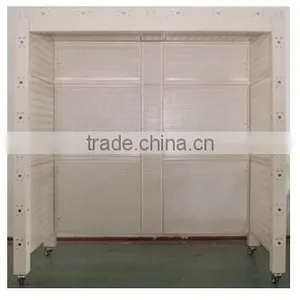

Training device provide various electrical module and assorting tools, training bench can as moveable platform, convenience for install wiring.
2. Product technical parameter
2.1 Size: (L)2000mm*(W)1004mm*(H)2480mm
2.2 Power supply source: three phase five wires power supply AC 380V/220V ±7.5% 50 Hz
2.3 Working environment: with isolation floor (or isolation carpet)
2.4 Training device main mesh board size: L(mm)*W(mm)=798*768
2.5 Training device material: steel board, thickness≥1.5mm;
2.6 Maximum power consumption: ≤1.5KW

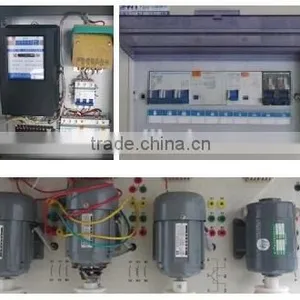

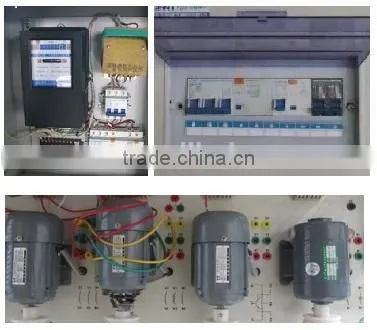

3. Product accessories
3.1 Power distribution box 1 pcs
3.2 Lighting distribution box 1 pcs
3.3 Electrical control box 1 pcs
3.4 Three phase AC motor group 1 set
Includes: single speed motor, single speed with speed relay motor, double speed motor, DC excited motor, etc.
3.5 Wiring material: soft wire, wire slot, guide track, etc.
3.6 Experiment manual 1 book
4. Experiment list
4.1 Configuration box installation and wiring training
4.2 Various light tool installation training
4.3 PVC wire tube and metal tube bend and installation wiring training
4.4 Switch and socket installation and wiring training
4.5 Concealed work construction training
4.6 Distributing line wiring training
1) Metal bridge combination and installation training
2) Plastic wire slot lay out training
4.7 Electrical control box installation
4.8 Electrical control circuit installation training
1) Three phase asynchronous motor direct start, park control circuit wiring
2) With interlock three phase AC asynchronous motor front, reverse turn control circuit connect
3) Button, contactor interlock three phase AC asynchronous motor front, reverse control circuit wiring
4) Three phase AC asynchronous motor Y-deta start control circuit wiring
5) Three phase asynchronous motor reverse connect braking control circuit connection
6) DC motor front reverse turn control
7) Button switch or time relay switch double speed motor speed regulation control circuit wiring
8) Centrifugal switch assorted reverse connect braking control circuit wiring
