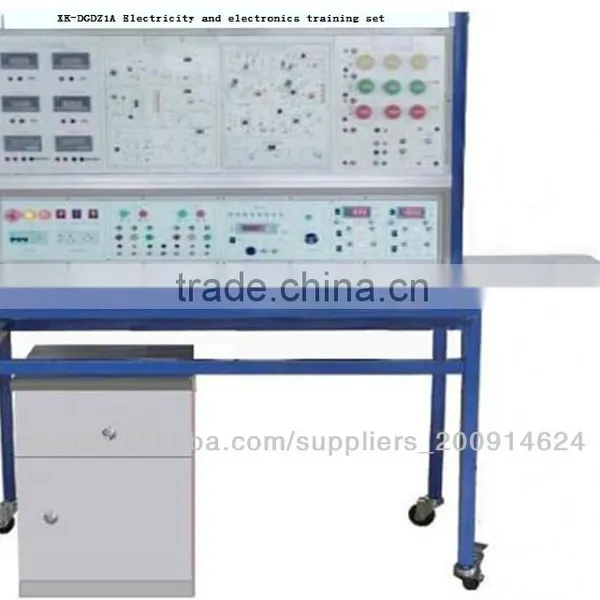

XK-DGDZ1A Electricity and Electronics Trainer, Training Equipment for Teaching Aid
1. Product Introduction
XK-DGDZ1A training for application of electronic components,electrician basic,three phase AC circuit measurement. It suitable for electrician technology course teaching.
XK-DGDZ1A will finish combination of training handled box, easy for organize the experiments. Training bench is equipped with experiment required signal source, and leakage protection,short circuit protection etc to ensure the experiment safety.
Training bench adopts the steel structure, double working-station designing, bench main structure is made by steel pipe spraying plastics structure, desktop is made of high density board which is fire prevention,waterproof and wear-resistant; bench is equipped with universal wheels, convenient for moveable.
2. Experiment Bench Technology Parameter:
2.1 Three phase power supply main switch with leakage protection IΔn≤30mA, time≤0.1S
2.2 With emergency stop button etc. and power indication light,power supply indication
3. Signal Source Technology Parameter
3.1 Adjustable 4mA ~ 20mA DC current source capacity 0.5A
3.2 Adjustable 1.25 V ~ 30V DC voltage source capacity 2A
3.3 Dual AC 15V voltage source capacity 1A
3.4 Dual AC 8V voltage source capacity 1A
3.5 ± 5V DC voltage source capacity 0.5A
3.6 ± 12V DC voltage source capacity 0.5A
3.7 Digital signal generator: output square wave, sine wave,sharp pulse
4. Accessory for training bench
4.1 Experiment jumper wires: 30 pieces
4.2 Experiment English manual: 1 piece
5. Experiment Project
5.1 Fundamental projects
1)Voltage transformation of power transformer
2)Isolation of power transformer
3)Detection of power transformer
4)Application of audio-frequency transformer
5)Understanding and application of rectifier diode
6)Understanding and application of voltage-regulator diode
7)Understanding and application of light-emitting diode
8)Understanding and application of photosensitive diode
9)Understanding and application of bidirectional trigger diode
10)Understanding and application of unijunction diode
11)Application of thermistor
12)Understanding and application of rectifier bridge
13)Understanding and application of transistor
14)Understanding and application of photosensitive transistor
15)Checking diode with multimeter
16)Application and detection of capacitor
17)Understanding and application of optocoupler
18)Understanding and detection of three-terminal integrated voltage regulator
19)Understanding and application of micro-relay
20)Understanding and application of integrated operational amplifier
21)Understanding and application of electric microphone
22)Understanding and application of piezoelectric ceramic
23)Understanding and application of infrared transceiver geminate transistor
24)Typical application of 555 time-base circuit
25)Typical application of frequency decoder
26)Understanding and application of unidirectional thyristor
27)Understanding and application of bi-directional thyristor
28)Understanding and application of stepper motor
5.2 Comprehensive electronic projects
1)Rectifier filter circuit training
2)Voltage-stabilizing circuit training
3)Water level control circuit training
4)Light control circuit training
5)Burglar alarm circuit training
6)electronic doorbell
7)Temperature control circuit training
8)Colored lamp control circuit training
9)Water level acousto-optic informing training
10)Industrial touch switch training
11)Infrared remote control transceiver circuit training
12)Four people responder
13)Acousto-optic double control time delay switch circuit
14)Push-button combination lock
15)Colored lamp inversion controller
5.3 Electro technology experiment
1)Knowing and use of multimeter
2)Use of basic electrical instruments and calculation of measurement error
3)Method of reducing the instrument measurement error
4)Potential/voltage measuring and circuit potential chart mapping
5)Surveying and mapping of circuit component volt-ampere characteristics
6)Measurement of DC ammeter/voltmeter internal resistance
7)Verification of Kirchhoff's law
8)Verification of superposition theorem
9)Verification of Thevenin theorem
10)Verification of Norton theorem
11)Measurement of Active two-terminal network equivalent parameters
12)Equivalent transformation between voltage source and current source
13)Knowing and use of inductor and capacitor
14)Understanding of Sine AC circuit
15)Testing of relationship between voltage and current of RL/RC series circuit
16)Testing of RC frequency-selective network characteristics
17)Use of oscilloscope and signal generator
18)Fluorescent lamp circuit and the raising of power factor
19) Y connecting of three-phase load and measurement of three-phase circuit power
20)Delta connecting of three-phase load and measurement of three-phase circuit power
21)Testing of AC component frequency characteristics
22)RLC series resonance circuit
23)Measuring AC circuit equivalent parameters with multi meter
24)Calibration of single-phase watt-hour meter
25)Testing of single-phase iron core transformer characteristic
26)Measurement of three-phase AC circuit voltage and current
27)Measurement of three-phase AC circuit active power
28)Measurement of three-phase AC circuit power factor and phase sequence
