Teaching aid equipment,Electrical Wiring and Assembly Technology Training Kit (double station)
1. System overview

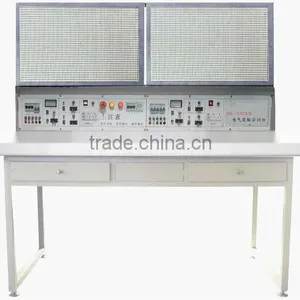

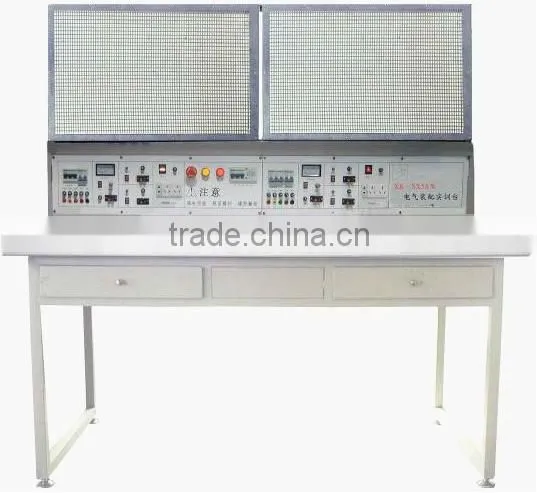

XK-SX5A electrical wiring and assembly technology training device consists of training table and mesh board. The
training platform offers AC power, DC power. The power part has short circuit, over current and leakage
protection and so it is safe and reliable. The training table body is a steel plate structure and sprayed, its table
top is a high density plate which is fire prevention, waterproof and wearproof. It suitable for double persons to
sit, provides two electrician training mesh boards, two sets of reference power supply and two person can do
practice training at the same time. Its power is independent and they will not interfere with each other.
Students can refer to practical training circuits to arrange and equip the components, Connecting is all finished
by themselves and thus benefits to cultivate the students’ manipulative ability and operational skills. Training
platform can be determined by oneself ,can select the corresponding components according to actual training
project and so it is easy to expand
Technical specificatio
2.1.Power part
1.Input voltage:AC380V±10%,50Hz,three-phase four-wire
2.Three-phase main power switch equipped with leakage protection:In ≤30mA,time≤0.1s
3.Three-phase,single-phase output equipped with automatic air switch, volume 10A
4.Accident emergency button, power indication, power supply indication
5.Mains socket
2.2.signal source
1.+24V DC voltage source equipped with switch and short-circuit protection
2.24V AC voltage source equipped with switch and short-circuit protection
2.3.Product oversize
1530 mm×700 mm×1700mm
2. Experiment content:
1.Direct starting control of three-phase asynchronous motor
2.Inching control circuit of three-phase asynchronous motor contactor
3.Self-locking control circuit of three-phase asynchronous motor contactor
4.Inching and self-locking control circuit of three-phase asynchronous motor
5.Positive and negative rotation control circuit of button interlocking control motor
6.Positive and negative rotation control circuit of contactor interlocking control motor
7.Positive and negative rotation control of dual-interlocking button contactor
8. Manual sequence control of three-phase asynchronous motor
9.Auto-sequence control of three-phase asynchronous motor
10.Multi-sets control of three-phase asynchronous motor
11.Delta/star starting manual control circuit of three-phase asynchronous motor
12.Delta/star starting automatic control circuit of three-phase asynchronous motor
13.The start-up and stop test of motor controlled by single button
14.Reverse braking test of three-phase motor
15.Control test of timing operation for the motor
16.Installation test of incandescent lamp
17.Test of control one lamp by two switches
18.Test of control two lamps by single button and lighting in sequence
19.Test of time relay control two lamps and bright in circulation
20.The test for the bright in circulation of three lamps;
