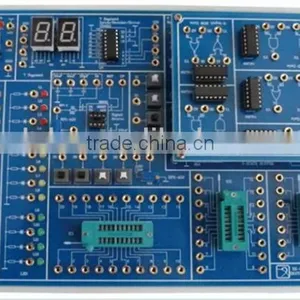

Education Equipment, Digital Electronic Training Set (standard)
1.Product Overview:
General experiment and training board based on digital technology...
2.Main parameters:
The power supply: DC +5V;
Machine capacity: ≤5W;
Working environment: Temperature-10°C~+40°C Relative humidity<85%(25°C);
Size: 280mm*200mm*32mm;
Power supply module of this training board provides interfaces of VCC (+5V), -5V and GND;
This training board provides 12 LED lights;
Training board provides 12 logical switches;
Training board provides 8 high/low electrical level buttons;
Training board provides 1- road adjustable pulse output signal;
Training board provide one 16P, one 14P and one 20P locking block;
Training board provides 2-digit Nixie tube display circuit;
Training board provides DA and RAM experiment principle circuit;
Training board provides an expand board position of 109.2mm×90.9mm;
Training board provides 8 expand boards, for AD and ALU experiments, etc.
3.Main functions:
1) BASIC GATE CIRCUIT
2) COMBINATIONAL LOGIC CIRCUIT (BASED ON SSI)
3) DECODER AND DISPLAY CIRCUIT
4) DATA SELECTION AND DATA DISTRIBUTOR
5) NUMERICAL VALUE COMPARATOR EXPERIMENT
6) ALU EXPERIMENT
7) INTEGRATED TRIGGER
8) COUNTER
9) 555 TIMER AND SCHMIDT TRIGGER
10) AD CONVERTER EXPERIMENT
11) DA CONVERTER EXPERIMENT
12) RAM READING AND WRITING EXPERIMENT...
