Specifications
"1.Fundamental Logic experimental board;2.electronic technology training box;
3.vocational school teach"

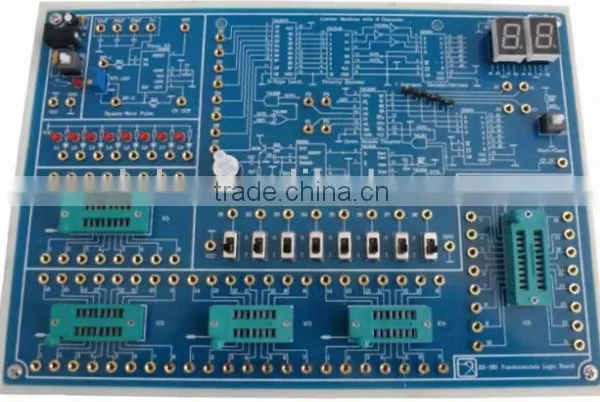

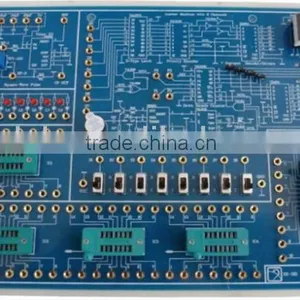

Electronic Experiment Box, Logic Circuits Training Fundamental Logic Board
1. Main function:
Basic Experiment and Training board based on digital technology.
2. Main parameters:
The power supply: DC +5V;
Total capacity: ≤ 5W;
Size: 280 * 200 * 32(mm);
Power supply module of this board provides the interface for VCC (+5V) and GND.
This board provides 8 LED lights;
This board provides 8 logical switches;
This board provides a 1-way adjustable pulse output signal;
This board provides two 16P, two 14P, and one 20P locking seat;
This board provides two-digit Nixie tube display circuit;
This board provides a complete 8-way Responder experiment principle circuit;
This board provides a expansion board position of size 109.2mm*90.9mm...
3.Main functions:
1) Basic gate circuit;
2) Combinational logic circuits (based on the SSI);
3) Encoder and decoder;
4) Data selector and data comparator;
5) Trigger;
6) Counter;
7) Register;
8) 555 Time base circuit;
9) 8-way responder...
