1,System overview

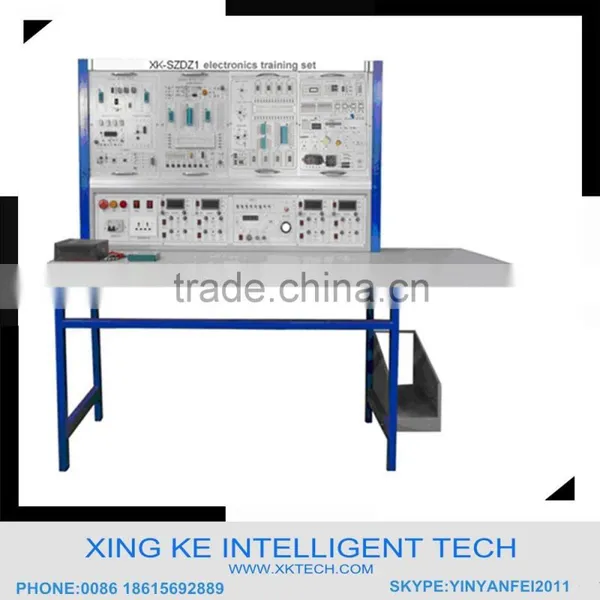

XK-SZDZ1 Digital electronics training set can carry out experiment and practical teaching on digital electronics, electronic circuits, fundamentals of circuit and other related courses. The training set adopts modular structure, can be collocated flexibly according to different needs. The lower part of the test bed is equipped with four functional modules containing DC stabilized power supply, signal source and the required test instruments and meters. Experimental screen can be put into two sets of digital circuit multifunction test modules, to meet two students doing digital circuit experiments independently and easy operation.
2,Specifications
2.1 Power Supply
Single-phase AC 220V ; ≤ 500W
With power source indicator and power supply indicator
With ground protection
With leakage protection
With over-current protection
2.2 Experimental power source
DC voltage source ± 5V 2-way
DC voltage source ± 12V 2-way
Adjustable DC voltage source 1.25 ~ 30V 2-way
2.3 Digital Signal Source: (with a frequency meter)
Count pulse source: 1Hz ~ 1MHz continuously adjustable, digital display, the number of pulse adjustable
Single pulse source: each positive and negative outputs of the 2
Logic Level: 8-way logic level output
BCD Code: 2 BCD output
Frequency meter: range 2MHz
Instrument
Voltmeter: range DC200V 0.5 level
Ampere meter: range DC200mA 0.5 level
Digital multimeter: three half digital readout
2.4 overall dimensions: 1700mm×700mm×1400mm
3,Experiments and Training Projects
3.1 Digital electronics basic experiment
Transistor switching characteristics, limiter and clamper
Logic functions and parameter testing of TTL logic gate
Logic functions and parameter testing of CMOS logic gate
TTL open collector and three-state output gate
Connection and drive of Integrated logic circuit
Experimental analysis of combinational logic circuit
Design and testing of combinational logic circuit
Understanding and application of decoder
Understanding and application of trigger
Understanding and application of counter
Understanding and application of shift register
Understanding and application of pulse divider
Gate circuit generating pulse signal
Waveform shaping circuit
555 Circuit and Its Application
D / A conversion and application
A / D conversion and application
GAL design experiments of programmable logic device
3.2 Electronic integrated project
Three half DC digital voltmeter
Music door-bell circuit
Simple game machine circuit
