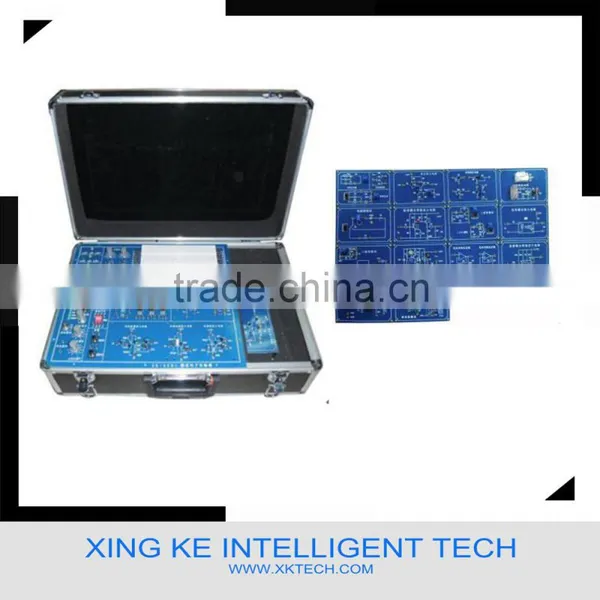

Analog Circuit Trainer Operational, Test, PCB Board, Basic Electronic Technology Training
1. Product overview
Modular digital electronics experiment box constitutes with mother board and expansion board, expansion board is fixed by four copper cylinders, convenient to plug-in mother board to experiment, mother board can plug-in four expansion board to operate experiments. Experiment box’s mother board integrated power supply, signal source, logic lever swtich, display circuit, breadboard, discrete components, basic gate circuit, commonly used trigger and etc.; expansion board covers most experiments in digital electronic class, can according requirements match different configurations.
2. Main Character
Module structure, experiment more flexible, easy for function update. Selecting extend module to do experiment, if need increase function, only increase relative extend board.
Experiment source is abundant on the main board, integrated kinds of modules:
Power multi-way output, output current is big, with regulated output voltage power source;
With wide signal source frequency range, from 0.5Hz to 10MHz continuous regulation, amplitude, duty ratio regulation independently, with three waveform output, waveform changing no effect the frequency and range value.
Supply various single-loop potentiometer and multi-loops precision potentiometer for selection.
Single pulse source supply up delay or down delay trigger signal.
Bread board do kinds of small experiments, equipped with port connection will be convenient for components and experiment box connection.
3. Technical parameter
Oversize:485mm*320mm*190mm
Power supply
Single Phase :AC220V,≤50W
Power indicator
Grounding Protection
Over current Protection
Experiment Power
AC15V,1A,double way
DC18V,1A,double way
DC+12V,0.5A;DC-12V,0.5A
DC+5V,0.5A;DC-5V,0.5A
DC1.25~30V,1A
Function signal generator
Frequency range:0.5Hz~10MHz
Signal type:sine wave, triangular wave, square wave
Signal level type:TTL,CMOS
Duty ratio regulate range:15%~85%
Frequency, waveform selection, and duty ratio regulation, noninterference
Range adjusted:-10V~+10V
Frequency range LED indication
Single impulse source
