Specifications
chanical training equipmentchatronics training equipment
3.four-freedom manipulator training

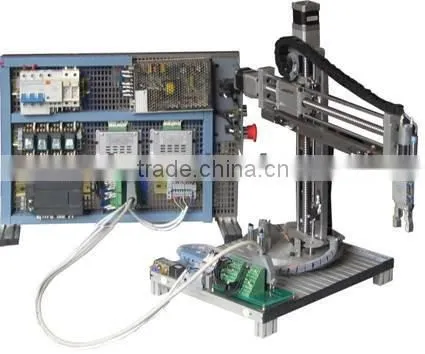

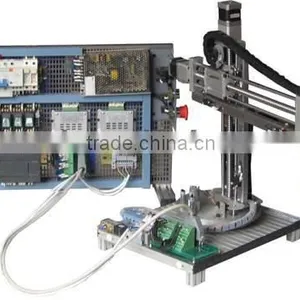

Mechatronics and Mechanical Training Equipment,Four-Freedom Manipulator Training Model
duct overview:
this device is four degrees of freedom mechanical arm physical model, PLC and single-chip microcomputer as the controller unit, step motor, dc motors, electromagnetic valve as actuator to
achieve various action of the mechanical arm.
2.main parameters:
Ø size :1000 mm x 550 mm x 550 mm;
Ø The power supply: single phase AC220V, power < 200 VA.
3.main components:
(1) mechanical components for can dismounting outfit type modular aluminium structure, basically have
the ball screw, slippery course, gas claw, unique shape aluminum and stainless steel nets plate unit etc;
(2) electric training screen for nets plate, PLC,electric parts mainly by step motor, dc motors, stepping
motor drive, switch power, electromagnetic valve, approach switch and travel switch etc.
4.main functions:
sensor training, pneumatic technology training, PLC technology training, electrical control system training,
mechanical system installation debugging training, motor drive technology training, system maintenance
and fault detection technology training. Have a safety protection function.
5.annex:
commonly used tools, software disc, the product specification.
6.Training Projects
1 Pneumatic technology
2 Electronics technology
3 PLC Application technology
4 Sensor technology
5 Automatic control technology
6 Industrial transmission technology
7 Industrial communication technology
8 MCGS applications and OPC technology
9 System integration design, optimization, fault diagnosis technology
