XK-YSJ2
COMPRESSOR CONTROL TRAINER
PRODUCT INTRODUCTION
- Refrigeration system components are all displayed outside on the bench, easy to observe and learn
- Electrical components are arranged in the panel, on the top with transparent acrylic cover and equips with electrical symbols and wiring jacks, control circuit of compressor can be built up by safety wires.
- Two types of compressor start up mode: current start and PTC start
- Trainer equips with high and low pressure gauge and liquid lens for observing static pressure and working pressure of the system as well as the status and direction of the refrigerant
- The condenser and the evaporator are all mounted with fan and can be controlled by the switch, used to adjust the heat transfer of the condenser and evaporator
- Trainer equips with voltage meter, ammeter and 8 way temperature digital displayer for observing the voltage, current and temperature of each key point during the operation of the equipment
- Refrigeration system high and low pressure pipelines are respectively painted to red and blue, easy to teaching and beautiful appearance.
- Bench with four universal wheels, easy for moveable.
TECHNICAL PARAMETERS
Input power: Single phase three wire AC220V + 10% 50Hz
Device capacity: < 0.5kva
Overall dimension: 805mm * 545mm * 870mm
Refrigerant type: non fluorine environmental protection refrigerant
The power switch with a leakage protection I delta n ≤ 30mA, time ≤ 0.1s
With power supply indication, voltage, current indication and temperature indication
Net weight: About 50kg

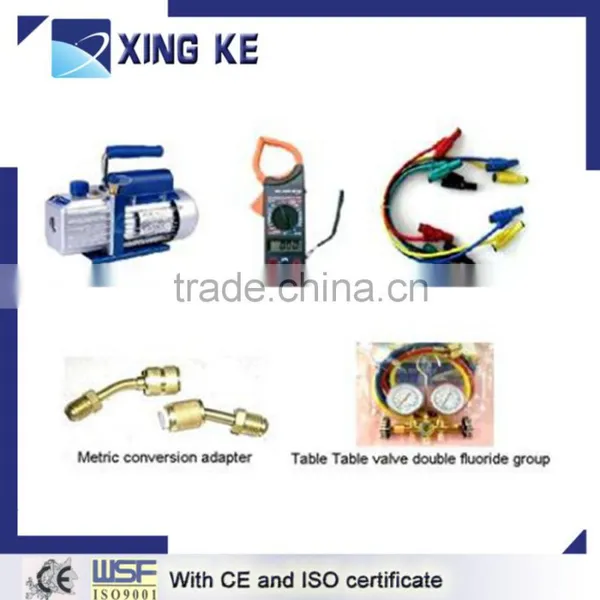

ACCESSORIES
Digital clamp meter: 1
Vacuum pump: 1 set
Double table valve filling fluorine table group: 1 set
Metric conversion: 2 sets of joints
Safety connecting line: 15
TRAINING ITEMS
- Understanding the components and functions of the compressor refrigeration system
- Understand the working principle of compressor refrigeration system
- Understanding of the electrical control components of the compressor refrigeration system
- Understand the function and principle of electrical control components
- Current starting circuit training of compressor refrigeration system
- PTC start circuit training of compressor refrigeration system
- The compressor refrigeration system leakage detection training and pressure maintenance operation training
- The training operation of the vacuum pumping and filling refrigerant
- Effect of heat exchange in the system of condenser and evaporator in compressor refrigeration system
