XK-BX01 Two-door Refrigerator Comprehensive Training and Examination Equipment for School Lab
1,Equipment Overview:

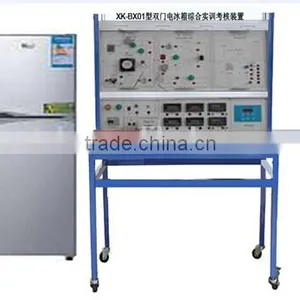

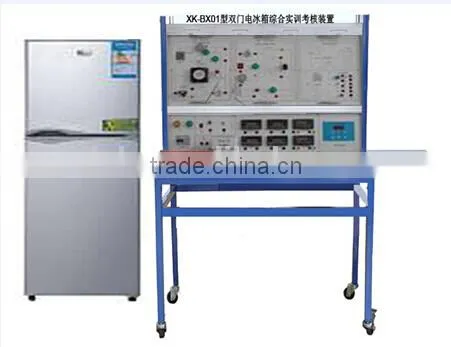

XK-BX01 Two-door Refrigerator Comprehensive Training and Examination Equipment for School Lab directly displays the system structure and working principle of the two-door refrigerator. It provides refrigerator overall training and internal main components training.
Main function: User masters the electronic control principle and common faults maintenance of the refrigerator.
This Equipment consists of the real two-door refrigerator,training bench,power module,digital indicator module,intelligent faults assessment module,principle diagram module and refrigerator electrical components etc. Equipment with four universal wheels, convenient for moving.
2,Technical Parameter:
1)Input power: Single phase three wires AC220V ±10% 50Hz
2)Equipment capacity: <0.5kVA
3)Overall size: 1500mm×700mm×1200mm
4)Refrigerant type: Fluoride-Free environmental protection refrigerant
5)Power main switch with earth leakage protection IΔn≤30mA, time≤0.1S
6)With power indication,power supply indication,voltage,current indication and temperature indication
7)Equipment net weight: Appr.80KG

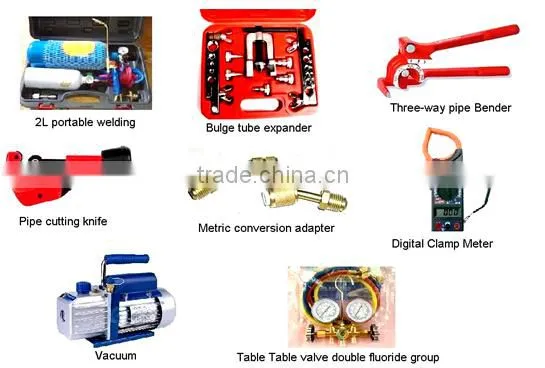

3,Attachment of equipment (non-standard configuration)
1)Tube expanding flaring kit: 1 set
2)Three purpose of pipe bender: 1pcs
3)Pipe cutter: 1pcs
4)Digital display clip-on ammeter: 1pcs
5)Vacuum pump: 1set
6)Double table valve fluorine filling meter set: 1set
7)Metric / British system conversion connector: 2sets
8)2L portable gas welding: 1set
4,Training project
1)Special tools operation method
2)Refrigerating system pipe fitting welding
3)Refrigerating system pressure test and leakage detecting
4)Refrigerating system vacuumize and charging refrigerant
5)Understanding and measurement of refrigerator electrical circuit components
6)Refrigerator non-refrigeration fault
7)Refrigerator refrigeration effect is bad fault
8)The judgment and solution for refrigerator whole set does not work
9)The judgment and solution for refrigerator compressor does not work
10)The judgment and solution for refrigerator lamp is not bright
11)The fault judgment and solution for refrigerator fan do not work
12)The fault judgment and solution for refrigerator defrosting circuit
