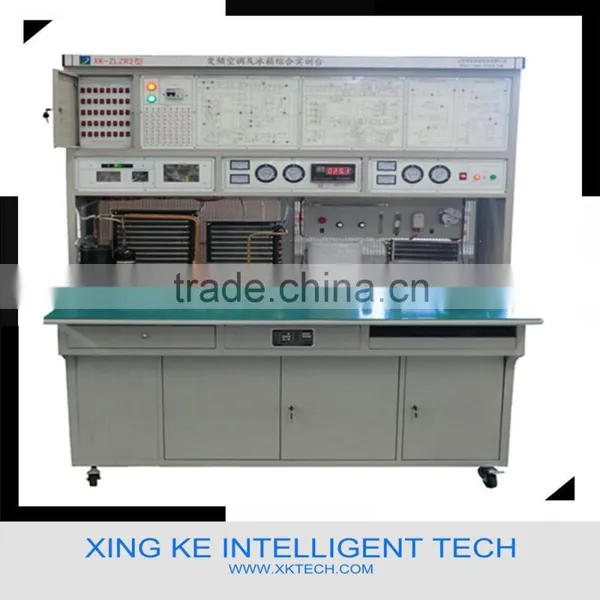

Education trainer,Frequency Conversion Air Conditioner and Refrigerator Comprehensive Training Device
1. System characteristics
1) The equipment adopt 180 - degree vector dc frequency conversion technology and dc frequency conversion compressor for designing,
the whole air conditioner system is real and integrity, its massive structure and property is as similar as remote
control frequency conversion air conditioner on market.
2) The system adopt real refrigerating unit, connect with the practical teaching
3) Refrigerator system contains two system structure as air-cooled type and direct-cooled type.
4) The whole training equipment connect refrigerating system, electrical system and fault simulation system
together, its structure is clear, compact and accordance with real refrigerating system and electrical system,
it has circuit principle diagram and can set the voltage measuring point, so it satisfy to the training requiring.
5)The training platform equipped with digital temperature display system, can intuitively observe each key point
temperature in refrigeration and heating system. The pipe system equipped with watching liquid mirror and
pressure gauge, can intuitively show refrigerating liquid flow direction and pressure value when the system is
in working state, can real time observe the system working parameters
6)The training platform intuitively shows the system structure and working principle of frequency conversion air
conditioner and refrigerator, can clearly see structure of refrigerator cycle system and material object of major
components, equipped with AC voltmeter, AC ampere meter, let the real-time working state of the whole system be clear at a glance.
7)Equipped with fault evaluation module, according to principle, students can analyze the reason caused by the
fault, and then troubleshoot.
8)Equipped with leakage protection equipment, enhance the safety when students are operating the equipment.
2. Equipment parameters
1)Input power supply: single-phase three-wire AC220V ±10% 50Hz
2)Equipment capacity: <1.5kVA
3)Dimension: 1630mm×800mm×1850mm
4)Refrigerating fluid type: air conditioner system R22
Refrigerator system R12
5)Safety protection: have leakage voltage and leakage current protection equipment
6)Equipment suttle weight: about 100Kg
3. Device basic equipment
Training device consists of training table, air conditioner system module, refrigerator system module, measuring
meters and experiment box.
1)Training table: The iron double inferior smooth dense coating structure, table top properties: fire protection,
waterproofing, Wear resistant high density board, firm structure, have drawer and cabinet with lock which are
used to place tools and data, etc..
2)Air conditioner unit consists of evaporimeter, condenser, compressor, four way reversing valve and remote
controller. Refrigerator consists of evaporimeter, wire-steel type condenser, frost fuse and frost timer, etc..
3)AC power supply control unit: single-phase three-wire, supply 220V AC power,1 AC ampere meter, measuring range is 0~250V,is used to monitor power grid
voltage;1 AC ampere meter, measuring range is 0~10A,is used to observe system starting current and monitor
system normally working current.
4)Temperature detection unit: adopt PT100 sensor, three and a half bit digital display, respectively measuring
indoor environment temperature, indoor evaporimeter pipe temperature, outdoor environment temperature,
outdoor condenser pipe temperature, air conditioner condenser temperature and air conditioner evaporimeter
temperature, etc..
5.Equipment function
1.Air conditioner training project
u Know each major components of refrigeration system
u Cognition and detection of each electronic components of circuit system
u Understand the system structure of frequency conversion air conditioner.
u Familiar with refrigeration working principle of air conditioner
u Familiar with heating working principle of air conditioner
u Master system air leakage detection operation
u Master operation of system taking out vacuum and charging refrigerating fluid
u Understand frequency conversion principle of frequency conversion air conditioner
u Analyze each unit circuit principle of frequency air conditioner
u Judgment method of lacking fluorine fault of air conditioner
u Judgment method of too much refrigerating fluid fault in the system
u Power indicator is not bright, the machine can not work, those two fault examining and repairing process
u Compressor can not work and its fault examination and repairing process
u Outdoor fan can not rotate and its fault examination and repairing process
u Air conditioner has a bad refrigerating effect and its fault examination and repairing process
u Remote controller can not work and its fault examination and repairing process
u Buzzer has no voice and its fault examination and repairing process
u Air conditioner can not heating and its fault examination and repairing process
u
2. Refrigerator training project
u Know each major components of refrigerator system
u System structure and working principle of direct and indirect type of refrigerator
u Electrical system working principle of direct type refrigerator
u Electrical system working principle of indirect type refrigerator
u Fault judgment of not enough refrigerating fluid
u Fault judgment of too much refrigerating fluid
u The whole machine of direct type refrigerator can not work and its fault examination and repairing process
u Compressor of direct type refrigerator can not work and its fault examination and repairing process
u The spotlight of direct type refrigerator is not bright and its fault examination and repairing process
u The whole machine of indirect type refrigerator can not work and its fault examination and repairing process
u The compressor of indirect type refrigerator can not work and its fault examination and repairing process
