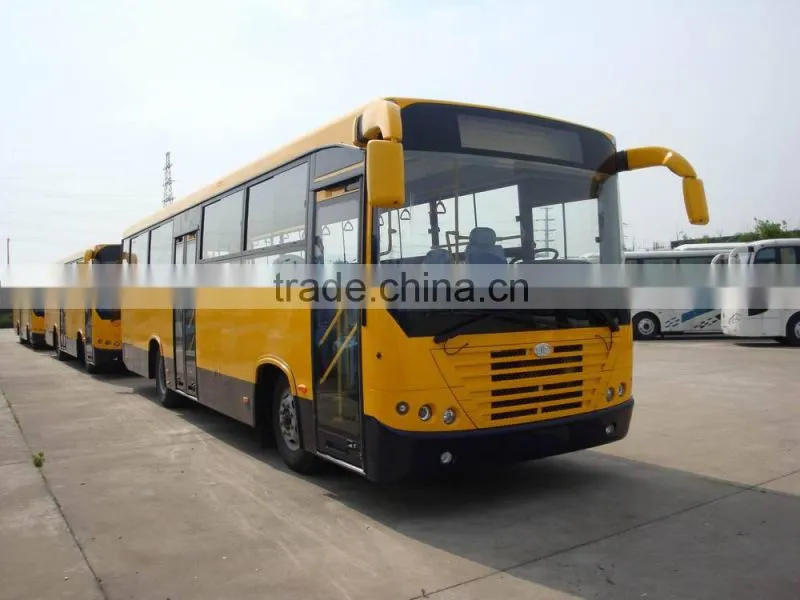

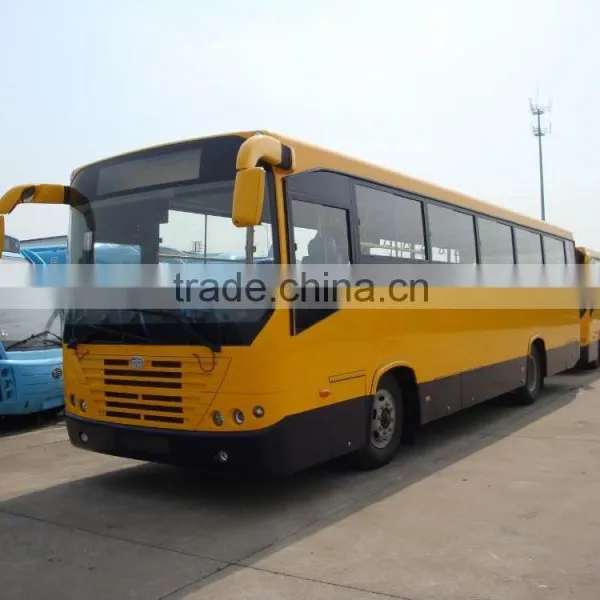

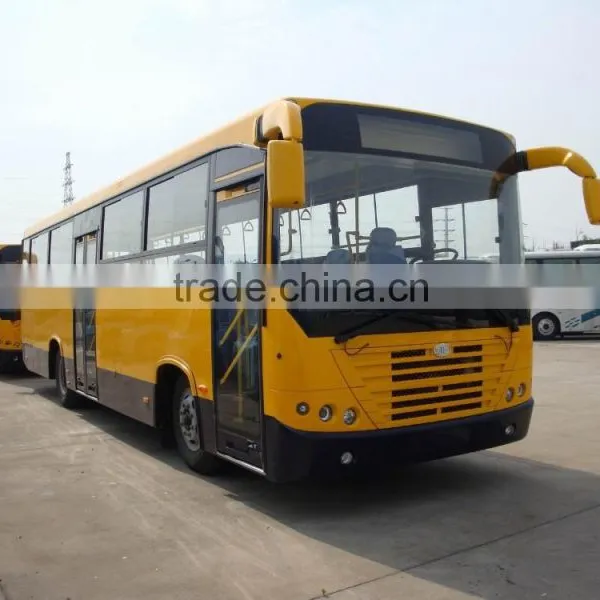

Popular Made in China 10m 19-40 Seats CNG Public Bus With Price

Name: Popular Made in China 10m 19-40 Seats CNG Public Bus With Price
Brand: HUAXIN
SKU: 109271303

US$ 32,480 - 32,500 MOQ: 1 Unit

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 3

Transmission Type:

Manual

Wuxi Huace Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 3

Transmission Type Manual

Max Speed 71 - 90 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 10400*2480*3090

Place of Origin Jiangsu, China

Brand Name HUAXIN

Model Number HM1001

Name: Popular 10m 19-40 seats CNG public bus with price

Specifications
Model			HM6101(CNG)
DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	10400
		Width	2480
		Height	3090
Wheelbase (mm)			5000
Thread (mm)		Front/rear	2020/1847
Gross vehicle weight (kg)			10500
Seating capacity (persons)			19-40/55
ENGINE
Model			CA6SH-NE3
Type			6-cylinder, in line, water-cooled, direct injection, turbocharged, inter-cooling
Displacement (cc)			5560
Max. Power (hp/rpm)			105/2800
Max. Torque (N-m/rpm)			380/1600

DRIVE TRAIN
Clutch			Hydraulic, Single plate, dry type
Gearbox			6 speed manual ,with synchronizer
Max. gradeability (%)			25
CHASSIS
Frame			Ladder shaped, ‘] ’ section
Suspension, front/rear			Leaf springs
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball,power steering
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Tires			9.00-20 14PR, Without spare tire
FOB SHANGHAI
