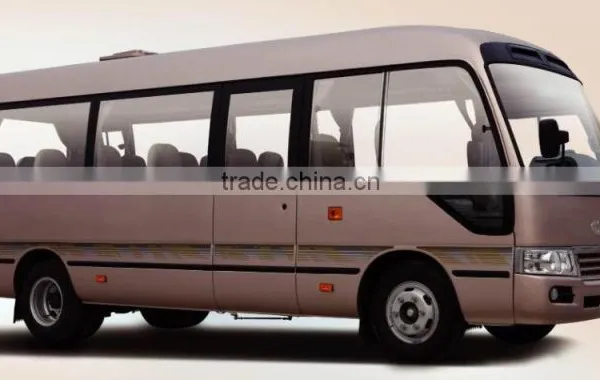

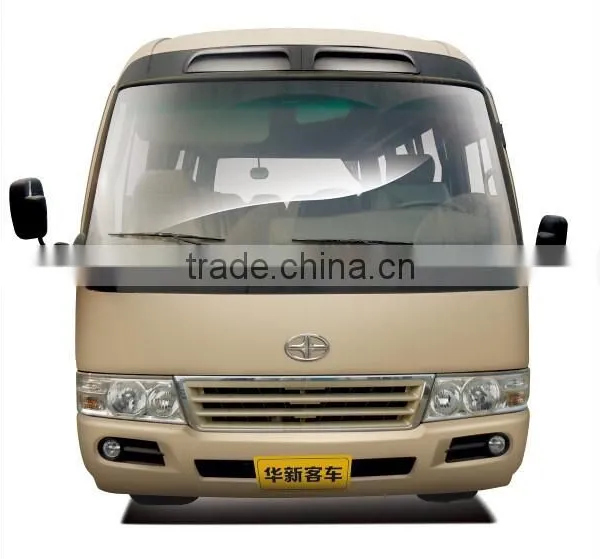

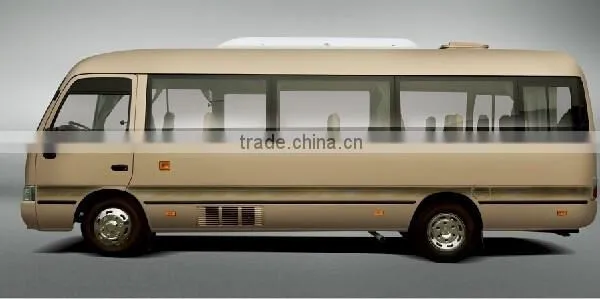

7m 23 Seats Luxury Coaster Bus

Name: 7m 23 Seats Luxury Coaster Bus
Brand: HUAXIN
SKU: 109272947

US$ 17,500 - 35,000 MOQ: 2 Units

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 3

Transmission Type:

Manual

Wuxi Huace Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 3

Transmission Type Manual

Max Speed 111 - 130 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7005*2040*2730

Place of Origin Jiangsu, China

Brand Name HUAXIN

Model Number HM6700

Name of Product: 7m 23seats manual diesel luxury coaster mini bus

Specifications
Model			HM6700
DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	7005
		Width	2040
		Height	2730
Wheelbase (mm)			3935
Thread (mm)	Front/rear		1665/1525
Curb vehicle weight (kg)			4100
Gross vehicle weight (kg)			6500
Seating capacity (persons)			23+6
ENGINE
Model			Cummins ISF3.8S3141 (Euro III)
Type			4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged
			Inter-cooling
Displacement (cc)			3800
Max. Power (hp/rpm)			141/2600
Max. Torque (N-m/rpm)			450/1300
Fuel tank (liter)			85
DRIVE TRAIN
Clutch			Hydraulic, Single plate, dry type diaphragm spring
Gearbox			6 speed manual 5.896/3.395/2.113/1.386/1.000/0.792,R=5.622
Max. gradeability (%)			30
CHASSIS
Frame			Ladder shaped, ‘] ’ section
Suspension, front/rear			Leaf springs 3/4
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Min. turning radius (m)			7.5
Tires			7.00-16 14PR
