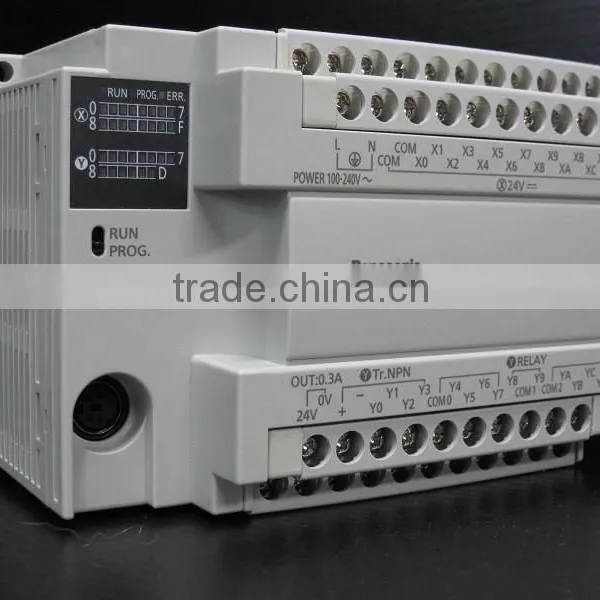

FP-XO AFPX0L30R PANASONIC PLC FP-X0 L30R Control Unit AFPXOL3OR

FP-XO AFPX0L30R PANASONIC PLC FP-X0 L30R Control Unit AFPXOL3OR thumbnail-1
FP-XO AFPX0L30R PANASONIC PLC FP-X0 L30R Control Unit AFPXOL3OR photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Panasonic
Model Number:
FPX0L30R
Contact Supplier Request Quote Chat Now
Beijing Shuntu Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Panasonic
Model Number FPX0L30R

FP-XO AFPX0L30R PANASONIC PLC FP-X0 L30R control unit AFPXOL3OR
Authorized Panasonic distributor PLC
FP-X0L30R CONTROL UNIT
Performance



Product Description



modle FPX0L30R
Brand Panasonic
I/O point DC input 16 points, Ry output 10 points, Tr putput 4 points
Supply 100-240VAC
Program capacity 2.5K steps
comment memory Available (Built-in memory)
Oprtation Speed 0.08μs
Response time 0.2ms or less



Performance
Super-high Processing Speed
Program Memory: 2.5 k steps
The Maximum Number of I/O Points
One control unit can be connected with up to 3 expansion units.
Therefore, the maximum number can reach 150 points.
In addition, if the expansion FP0 adaptor is used,
Network
Maximum 2-channel Communication Port
One RS232C programming port is equipped on the body.
Modbus-RTU
Non-program communication with the devices (such as the temperature controller and the inverter etc.)
using global universal industry standard Modbus-RTU (binary)
can be realized simply.
Computer Link
Non-program communication with the devices (such as the display, image processor,
temperature controller and wattmeter etc.) using Panasonic open protocol "MEWTOCOL" can be realized simply.
Universal Serial Communication
It can generate or send the corresponding commands according to the communication protocol
used by the pairing device. In addition, it can also receive the flow data,
such as the data from the measuring instrument, bar code reader and RF-ID etc.
Line Up
3 units max. can be added.
E16X, E16T, E16P upgraded to Ver.3 or later can be connected (The number of connected units is limited.)

56 Kinds of Combinations (of I/O number)
14 to 150 points (FP0R expansion units excluded)
Positioning / Function
Built-in 2-axis Pulse Output Function

Power supply: 100 to 240 V AC


24 V DC input, 16 points
0.5 A/5 to 24 V DC transistor output, 4 points
2 A relay output, 10 points

Panasonic AFPX0L30R
FP-X0 relay output L30R
AFPXOL30R; FPXO-L3OR; FPXO-L30R
AFPX-E30P; AFPX-E30P;
AFPX0L30R; AFPXOL30;
AFPX0L30R, AFPX0L30R-F,AFPX0L30
AFPX0L3OR, AFPX0L3OR-F, AFPXOL30R-F,
AFPXOL30R; AFPX0L3O; AFPXOL3OR;
AFPXOL6OR, AFPXOL3OR, AFPXOL3OR-F,
FP-X0 L30R; FP-X0L30R;
FP-XO L30R; FP-XOL30R;
FP-XO L3OR; FP-XOL3OR;
FPX0L3O, FP-XO L30R;
FPXOL30R, FPXOL30R-F,
AFPXOL30R, FPXOL30,
FPXOL3OR, FPXOL3OR-F,
FPXOL3O, AFPXOL3O
FP-XO L3OR; FPX0L30R, FPX0L30R-F,





Packaging & Shipping

 Standard Carton Box for export
