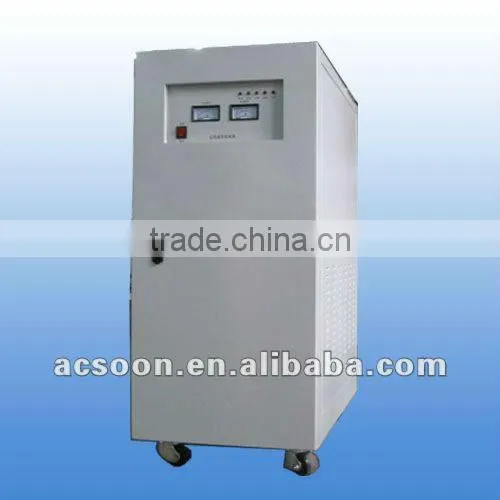

Help Center2KVA dc 24v Power Supply
US$ 100 - 1,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
acsoon
Model Number:
AF24-11002
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Voltage Current Regulator 110v dc Power SupplyUS$ 100 - 4,000MOQ: 1 Unit -
ADC-28400 28.5V DC Aircraft Ground Power Units (GPU) for SaleUS$ 999 - 1,999MOQ: 1 Set
-
ADC-28800 High Precision Airport Ground Support Equipment 28.5vUS$ 999 - 1,999MOQ: 1 Set
-
Aircraft 28.5V DC Power SupplyNegotiableMOQ: 1 Unit
-
30v 500A High Power Switching Variable Voltage dc Power SourceUS$ 100 - 500MOQ: 1 Piece
Place of Origin
China
Brand Name
acsoon
Model Number
AF24-11002
Output Power
1 - 200KW
Output Type
Triple
Size
on your need
Weight
on y our need
Input Voltage
DC24V
Output Voltage
AC220
Output Frequency
50HZ
Output Current
83.3
Specifications
1. 24v power supply2.pure sine wave
3.isolated transformer
4.good protection
5.accurancy indication
| capacity | 2kva/1.6kw | |
| run mode | pure inverter | |
| DC input | rated voltage | 24VDC |
| voltage range | 24-40VDC | |
| current(A) | 83.3 | |
| AC by-pass input | voltage range | 220±5% |
| max current(A) | 9 | |
| reaction time(ms) | 4ms | |
| AC output | rated power(kw) | 0.8 |
| rated current(A) | 9 | |
| power factor(PF) | 0.8 | |
| voltage accuracy | AC220V±1% | |
| waveform | pure sine wave | |
| frequency accuracy | 50HZ±0.1% | |
| THD | ≤3% | |
| instantaneous change | ±5%(0-100% load) | |
| CF | 3:1 | |
| inverter efficiency | 90%(80% resistive load) | |
| protector | Output overload protection,output short circuit protection,DC undervoltage protection, overheat protection, input reverse protection | |
| working condition | noise(1m) | ≤40dB |
| insulation strength | 3000VAC/1min | |
| working temperature | –10°c—45°c | |
| relative humidity | 20%~90% non-condensing | |
| altitude | ≤1000m | |
| cooling | forced fan cooling | |
