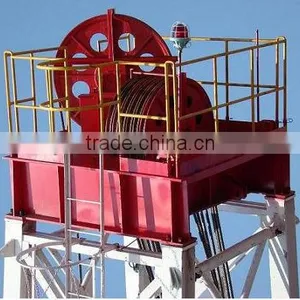

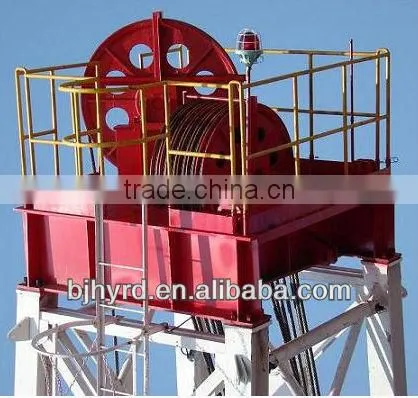

TC225 Crown block for drilling rig supplier
Specification
1.Model: TC225
2.Forged with hight strength steel,
3.the grooved sheaves are hardened bu medium frequency induction to provide extended service life.
4.Double tow conical roller bearing on the sheaves are designed with independent lubricating points for safety
5.rope guards are installed to prevent the wire rope from running out of sheaves.
6.Each crown block conforms to API 4F & API 8C mandates.
Technical Parameters
Model |
|
TC225 |
Max.hook load |
KN(lbf) |
2,250(500,000) |
O.D. of sheaves |
mm(inch) |
1,120(44) |
Number of sheaves |
nos |
6 |
Dia. of wire line |
mm(inch) |
32(1 1/4) |
Overall dimension(L*W*H) |
mm(inch) |
3,200*3,347*3,640 (126*131*99) |
Weight |
kgs(lbs) |
5,310(11,700) |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico andDubai.
