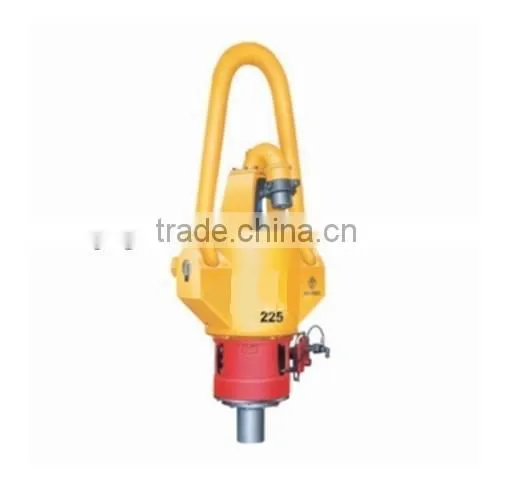

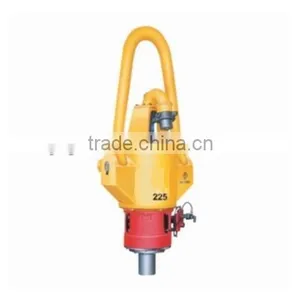

XSL225 Drilling Rig Swivels with spinner
1.Model: XSL225,XSL225Y
2.XSL swivel with spinner is a combination of swivel and kelly spinner
3. driven by air motor or hydraulic motor
4. with keyless connection adopted between spinner and central pipe of swivel.
5.Standard: API Spec 8C “Specification for Drilling and Production Hoisting Equipment”
Technical Specification:
Model |
XSL225 |
XSL225Y |
||
Max. Static Load |
kN |
2250 |
||
US ton |
250 |
|||
Dynamic Load Rating |
kN |
1600 |
||
US ton |
175 |
|||
Max. Speed |
rpm |
300 |
||
Max. Pressure |
MPa |
35 |
||
psi |
5000 |
|||
Bore thru stem |
mm |
75 |
||
in |
2.95 |
|||
Gooseneck Connection |
|
4 LP |
||
Sub connection |
|
6 5/8 REG -LH |
||
Size |
mm |
2743×1010×957 |
||
in |
108×39.8 ×37.7 |
|||
Weight |
kg |
3000 |
3078 |
|
lb |
6614 |
6786 |
||
Note:Y means the swivel with hydraulic spinner. Without Y means the swivel with pneumatic spinner.
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
