Sucker Rod Power Tong With Hydraulic Hose Line XQ28/2.6Y

Name: Sucker Rod Power Tong With Hydraulic Hose Line XQ28/2.6Y
Brand: OCEAN RENDA
SKU: 109374239

Sucker Rod Power Tong With Hydraulic Hose Line XQ28/2.6Y thumbnail-1

Sucker Rod Power Tong With Hydraulic Hose Line XQ28/2.6Y photo-1

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

OCEAN RENDA

Model Number:

XQ28/2.6Y

Contact Supplier Request Quote Chat Now

Beijing Ocean Renda Petroleum Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name OCEAN RENDA

Model Number XQ28/2.6Y

Type Other, sucker rod power tong

Machine Type Other, drilling wellhead tools

Certification API

Material Carbon Steel

Processing Type Forging

Use Well Drilling

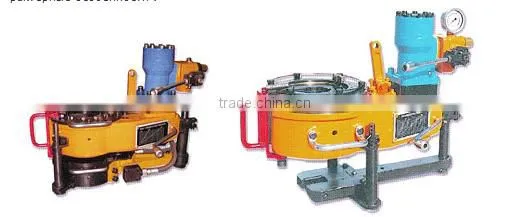

XQ28/2.6Y Sucker Rod Hydraulic Power Tong

Product Description

Main Parameters

Model XQ28/2.6 hydraulic power tong is an improved type of XYQ1.8 which is used to make up and break out sucker rod thread in Well Service. This product has the following features:

A. The structure is compact ,concise and light.Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner. Total weight is approximately equal to XYQ1.8.

B. The operating is briefness and convenience with high efficiency. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong , turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed,snapping at low speed, spinning at high speed .

C. Large low gear torque,especially suitable for the instance that is difficult to break out sucker rod thread.

Model	XQ28/1.8	XQ28/2.6
The range of master tong	Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube ⁵/8"~1¹/8"	Sucker rod GYG 16 19 22 25 28 ⁵/8"~1¹/8"
the range of Back tong	Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube ⁵/8"~1¹/8"	Sucker rod GYG 16 19 22 25 28 ⁵/8"~1¹/8"
High gear rated torque	700 N.m 516 ft-lbs	1000 N.m 737.5 ft-lbs
Low gear rated torque	1800 N.m 1327.6 ft-lbs	2600 N.m 1918 ft-lbs
High gear rated speed	104 r/min	98 r/min
Low gear rated speed	40 r/min	32 r/min
Rated the system pressure	10 MPa 1450 psi	10 MPa 1450 psi
Maximum supply oil	65 L/min 17 gpm	80 L/min 21 gpm
Overal dimension L×W×H(mm)	543×334×404 21.4"×13.1"×15.9"	670×383×490 26.4"×15.1"×19.3"
Removed quality(including back clamp)	105 kg 231 lbs	100kg 220lbs
