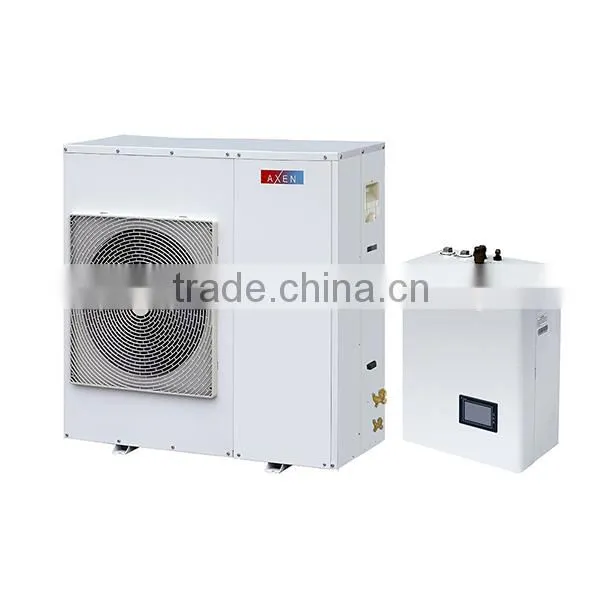

Air to water heat pump heating efficiency high
AXEN inverter heat pump is a very intelligent heat pump system with flexible capacity output.It could automatically according to requirement.It is energy-saving with a long lifespan.
Features:
1.Advanced Dc Inverter Technology
2.Galvanized steel casing
3.Groundfos or Wilo pump built-in
4.Reliable compressor with R410A refrigerant
5.Safety valve and vent valve built-in
6.Fully sealed control box with water proof level IPX4
7.Thermostatic heating element for anti-frost protection
8.Electronic expansion valve
9.Automatic defrosting function included(with reserse valve inside)
10.General and operational test carried out for every unit before package in the factory
Specification:
| Technical Data | AXAI-06S | AXAI-09S | AXAI-12S | AXAI-15S | ||
| Heating | Nominal capacity | KW | 6(2.1-6.13) | 9(2.3-9.8) | 13(2.5-13.8) | 15(2.5-15.9) |
| Power input | KW | 1.29 | 1.95 | 2.82 | 3.36 | |
| COP | W/W | 4.65 | 4.6 | 4.61 | 4.47 | |
| Cooling | Nominal capacity | KW | 5(1.9-5.33) | 7(2.1-8.3) | 11(2.1-11.5) | 12(2.1-12.6) |
| Power input | KW | 1.34 | 2 | 3 | 3.5 | |
| EER | W/W | 3.73 | 3.5 | 3.66 | 3.43 | |
| DHW | Nominal capacity | KW | 5(2.0-5.8) | 8(2.2-8.8) | 12(2.2-12.5) | 14(2.2-14.5) |
| Power input | KW | 1.34 | 2.2 | 3.2 | 3.95 | |
| COP | W/W | 3.74 | 3.63 | 3.75 | 3.54 | |
| Power supply | V/Ph/Hz | 220~240/1/50 | ||||
| Max leaving water temperature(without using backup heater) | ℃ | 58 | ||||
| Water temperature range | ℃ | -20~43 | ||||
| Refrigerant | R410A | |||||
| Compressor Type | Toshiba/Hitachi Rotary(DC inverter) | |||||
| Capacities and power inputs based on the following conditions: | ||||||
| Heating:Water Inlet/Outlet temperature 30℃/35℃.Outdoor air dry bulb/wet bulb temperature 7℃/6℃. | ||||||
| Cooling:Water Inlet/Outlet temperature 23℃/18℃,Outdoor sir dry bulb temperature 35℃. | ||||||
| Domestic Hot Water:Water temperature in the tank 40℃.Outdoor air dry bulb/wet bulb temperature 7℃/6℃. | ||||||
| Data are based on approx 5m length of well insulated refrigerant pipes. | ||||||
| Refrigerant content is suitable for a 10m long pipes. | ||||||
Packaging&Shipping
Our services
- Supply OEM service for customers.
- Produce heat pump according to customer's special demands.
- Supply free spare parts according to order quantity.
- Long warranty period
Workshop&Lab
About AXEN
AXEN is a professional company engaged in sales, R&D and production of refrigeration and heating products. The company is fully owned by Populace Group, which is one of the largest heat pump heat exchanger manufacturers in China as well as high quality metal cabinet and copper tube manufacturer with annual turnover nearly 2 billion RMB. We have rich experience in refrigeration and heating for over ten years. In line with our objective to provide environmental and climate friendly products, AXEN keeps creating more innovative and efficient energy saving product. By year's growth, our product line covers full range air to water heat pump, water to water heat pump and swimming pool hate pump. We would like to grow together with our customers by providing high quality service and unique high end products.
Exhibition
