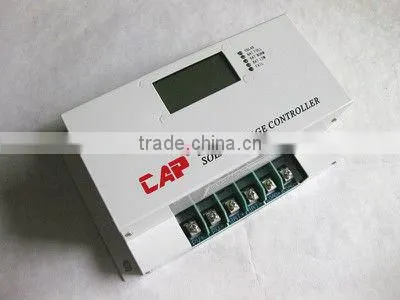

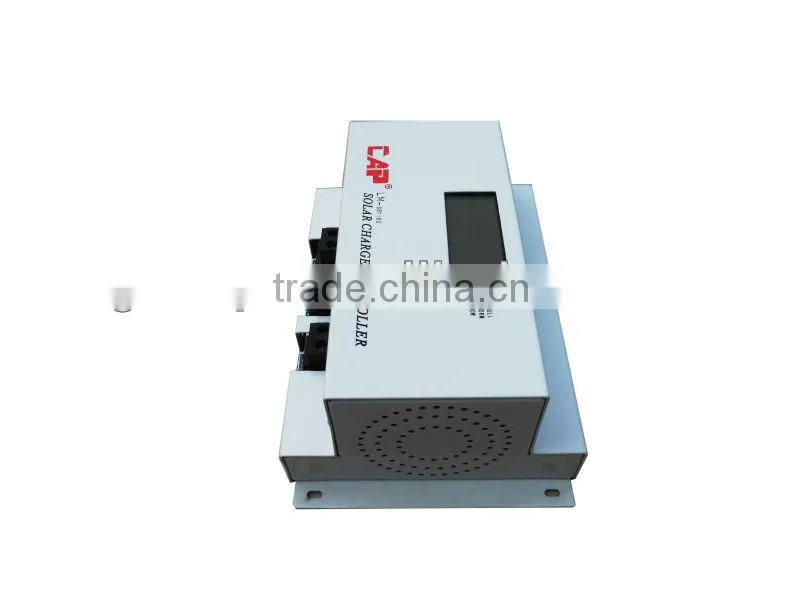

cap MPPT solar charge controller 12v 24v 36v 48v 72v 96v 120v vautomatic recognition 10a 20a 30a 40a ~100a with lcd from chain
1. CAP solar charge controller with over-load protection, short circuit protection, over-charge protection, over-discharge protection, anti-connection-reverse protection for battery.
2. CAP solar charge controller with LVD function (Low Voltage Disconnect) to protect battery in order to extend the life span of battery. If the voltage in battery go down to 11.0V in 12V battery bank, then CAP solar charge controller will stop the battery discharging.
The Low Voltage Disconnect for 24V system is 22.0V, 36V system is 33.0V, 48V system is 44.0V, 72V system is 66.0V, 96V system is 88.0V, 120V system is 110.0V.

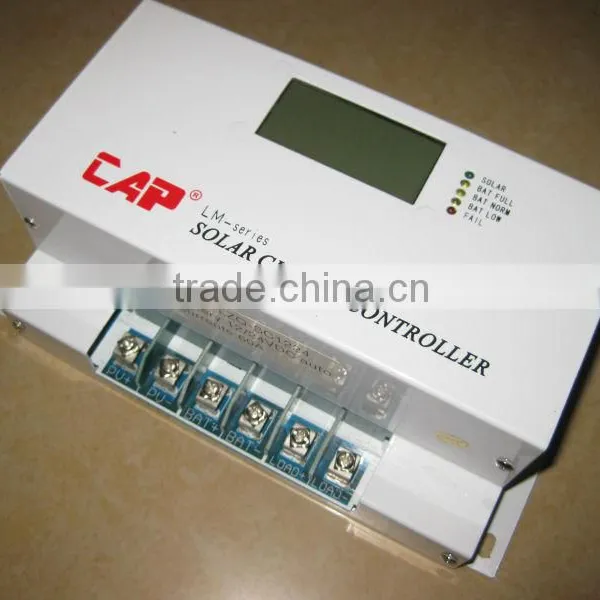

3. CAP solar charge controller with LCD display and LED indicator.
State of the LED light as following:
1). Battery FULL LED on, battery available energy >75%
2). Battery NORM LED on, battery available energy 25%-75%
3). Battery LOW LED on, battery available energy 10%-25%
4). Battery LOW LED flashes: specially , battery available energy <10%

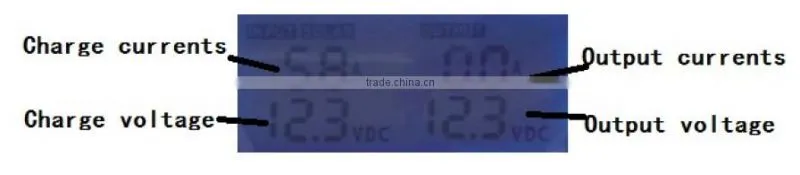

LCD screen display the charging voltage, current and output voltage, current.
4. We have 12/24V automatically recognition solar charge controller, 36/72V automatically recognition solar charge controller, 48/96V automatically recognition solar charge controller, 60/120V automatically recognition solar charge controller.
Technical Data:
Model series |
LM series A LM01A/LM02A/LM03A/LM04A |
LM series B LM01B/LM02B/LM03B/LM04B |
LM series C LM01C/LM02C/LM03/C/LM04C |
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
36/72 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
43.5/87V (25'C),2 hours |
|
Equalization voltage |
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
44.4/88.8 V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8/109.6 V (25'C) |
41.1/ 82.2 V (25'C) |
|
Low Voltage Disconnect Function |
11.4- 11.9/22.8-23.8 V controlled by state of charge 11.0/ 22.0 V controlled by voltage |
45.64- 47.6/91.2-95.2V controlled by state of charge 11.0/ 22.0 V controlled by voltage |
34.2-35.7/68.4-71.4 V controlled by state of charge 33.0/ 66.0 V controlled by voltage |
|
Load reconnect voltage |
12.8/25.6V |
51.2/102.4V |
38.4/76.8V |
|
Temperature compensation |
-4 mV/cell*K |
||
|
Max. solar panel current |
40A/50A/60A/80A according to model number @ 50'C |
||
|
Max. load current |
40A/50A/60A/80A according to model number @ 50'C |
||
Dimension |
230 x 150 x 85 mm |
||
Weight |
1.2kg |
||
Max wire size |
20 mm2 |
||
Self consumption |
16mA |
30mA |
30mA |
|
Ambient temperature range |
-40 to+ 50°C |
||
Case protection |
IP 22 |
||
Standard Export Packing in carton+foam, 1Unit/Carton: 250*200*140mm 1.8kg 20' container: 3500pcs
1. Door to door shipping service.
2. We assist our customer how to connect the solar charge controller and connect the solar system.
3. 24hours online to assist our customer to find the most suitable solar charge controller.
4. 24hours online for after-sale-service.
CAP Solar is one of the leading manufacturers of solar in China, based with a factory area of about 5000 square meters. CAP Solar specialized in the design, sales and installation of solar electric equipment for residential, commercial, and government customers.We produce solar charge controller, solar inverter, power inverter with charger. Our main products include solar power inverter, solar controller, solar panel and battery. We have our own team of engineers, electricians, and certified solar installers and sales professionals, which allows us to provide customers with a single point source for turn key photovoltaic systems. For more than 10 years, CAP Solar Power Company has been providing clean, renewable power to its customers along with the highest quality of service and support.
*************************************************
