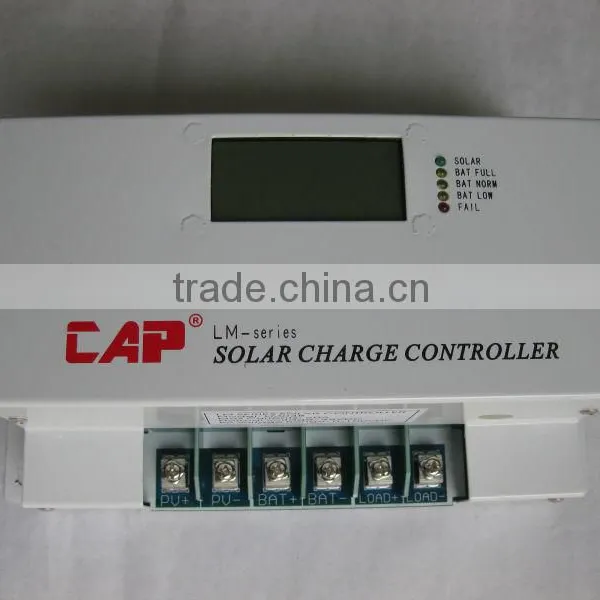

100A Inverter Controller with mppt
Input Voltage:12v/24v 36v/72v 48v/96v 120v
Description of Functions
1. Microcomputer chip ensures accurate control
2. Perfect protections: over charge, over-discharge, reverse connection, PV cell panel reverse connection protection
3. Automatic brake and manual brake ensures that the wind turbine and the PV & wind hybrid charging controller operate safely and reliably
4. Voltage for automatic brake (rectified voltage of solar panel) and the recovery time after automatic brake can be adjusted in accordance with customer’s demands
5. High efficiency, soft braking, independent input circuits for wind turbine and the PV. As a result, if there is something wrong with one circuit, the other circuit can operate smoothly to provide stable power supply for load.
6.The charge controller adjusts itself automatically to 12V or 24V. It also has 36V,48V, 72V and 96V DC input voltage.
Technical Data:
Model series |
LM series A
LM01A/LM02A/LM03A/LM04A
|
LM series B
LM01B/LM02B/LM03B/LM04B
|
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
|
Equalization
voltage
|
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8/109.6 V (25'C) |
|
Low Voltage
Disconnect
Function
|
11.4- 11.9/22.8-23.8 V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
45.64- 47.6/91.2-95.2V controlled
by state of charge 11.0/ 22.0 V
controlled by voltage
|
|
Load reconnect
voltage
|
12.8/25.6V |
51.2/102.4V |
|
Temperature
compensation
|
-4 mV/cell*K |
|
|
Max. solar panel
current
|
40A/50A/60A according to model number @ 50'C |
|
|
Max. load
current
|
40A/50A/60A according to model number @ 50'C |
|
Dimension |
230 x 150 x 85 mm |
|
Weight |
1.2kg |
1.3kg |
Max wire size |
20 mm2 |
|
Self consumption |
16mA |
30mA |
|
Ambient
temperature range
|
-40 to+ 50°C |
|
Case protection |
IP 22 |
|
Any questions pls feel free to contact me
