Specifications
charge controller display1. LCD display
2. mppt solar charge controller
3.factory price
4.12v24v 40-100a

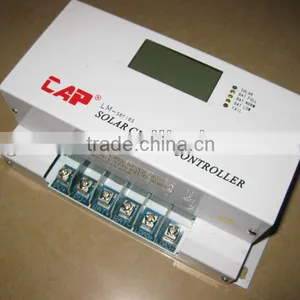

mppt lcd and led solar charge controller display
Detailed Product Description:
new LM controller is a state-of-the art device which was developed in accordance with the latest available technical standards. It comes with a number of outstanding features, such as:
1. Clear, readable display of the state of charge
2. Acoustic signal when the state of charge changes
3. Low voltage disconnect regulated by state of charge or voltage
4. 20 mm2 connector clamps maximum
5. Complete electronic protection
Description of Functions:
1. The charge controller protects the battery from being overcharged by the solar array and from being
deep discharged by the Loads. The charging characteristics include several stages which include
automatic adaptation to the ambient temperature.
2. The charge controller adjusts itself automatically to 12V or 24Vand 48V or 96V system voltage.
3. The charge controller has a number of safety and LED & LCD display functions.
Mounting and Connecting:
The controller is intended for indoor use only. Protect it from direct sunlight and place it in a dry
environment. Never install it in humid rooms (like bathrooms). The Controller measures the ambient
temperature to determine the charging voltage. Controller and battery must be installed in the same
room.
The controller warms up during operation, and should therefore be installed on a non flammable
surface only.
Specification
Model series |
LM series ALM01A/LM02A/LM03A/LM04A |
LM series BLM01B/LM02B/LM03B/LM04B |
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
Equalizationvoltage |
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8109.6/ 27.4 V (25'C) |
Low VoltageDisconnectFunction |
11.4- 11.9/22.8-23.8 V controlledby state of charge 11.0/ 22.0 Vcontrolled by voltage |
45.64- 47.6/91.2-95.2V controlledby state of charge 11.0/ 22.0 Vcontrolled by voltage |
Load reconnectvoltage |
12.8/25.6V |
51.2/102.4V |
Temperaturecompensation |
-4 mV/cell*K |
|
Max. solar panelcurrent |
40A/50A/60A according to model number @ 50'C |
|
Max. loadcurrent |
40A/50A/60A according to model number @ 50'C |
|
Dimension |
230 x 150 x 85 mm |
|
Weight |
1.2kg |
1.3kg |
Max wire size |
20 mm2 |
|
Self consumption |
16mA |
30mA |
Ambienttemperature range |
-40 to+ 50°C |
|
Case protection |
IP 22 |
|

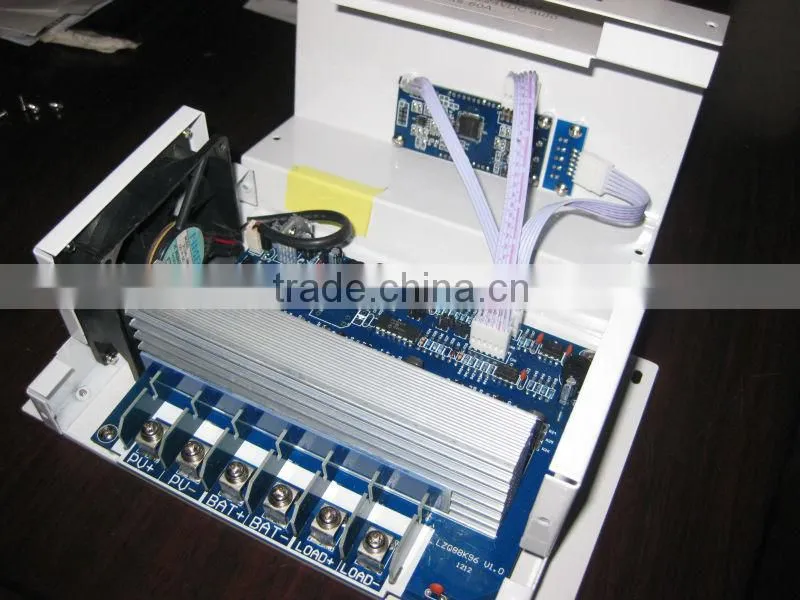

The solar controlelr with LED&LCD dispaly:
Any question pls feel free to contact me
Skype:capsolar4
Moblie:+86 13697413612
