10W COB Flood Light Led With CE Approval 120 Degree Beam Angle

10W COB Flood Light Led With CE Approval 120 Degree Beam Angle photo-1
10W COB Flood Light Led With CE Approval 120 Degree Beam Angle photo-2
10W COB Flood Light Led With CE Approval 120 Degree Beam Angle photo-3
10W COB Flood Light Led With CE Approval 120 Degree Beam Angle photo-4
US$ 4 - 7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar COB
Input Voltage(V):
AC85-265V
Lamp Power(W):
10
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epistar COB
Input Voltage(V) AC85-265V
Lamp Power(W) 10
Lamp Luminous Flux(lm) 1000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2850-6500K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name iledhl
Model Number HL-FL-10W

Product Introduction :

The Model HL-FL is made by Aluminum body with high quality heat radiator.  This kind of the lamp are widely used in the  wall lighting ,advertising board lighting, store lighting, square lighting, garden lighting, etc.

10W COB flood light led with CE Approval 120 degree beam angle



      10W COB flood light led with CE Approval 120 degree beam angle



Electrical Specifications:                                                          Photo metric Specifications:
LED power : 10W                                                                                          LED Luminous Flux : WW 890lm    CW  1000lm
Lamp's real Power : 10.5W                                                                         LED Luminous efficiency: 100-110lm/W
Operating Voltage: AC90-240V                                                                  CCT : WW 2750-2850K
Operating Temp : -20~50C                                                                                    CW 6000-6500K
Operating Humidity: 10% to 90%                                                              CRI:>80

Mechancial Specifications:                                                     Packing Specifications:

IP Rating : IP65                                                                                              PC/CTN:  30pcs/Ctn
Guarantee : 2 years warranty                                                                      Carton Size : 50x25x32cm
Body Material : Aluminum                                                                            Gross weight : 15Kg
Lens beam angel : 120degree
Fixture Dimension : 115*85*100mm
Fixture weight : 0.5KG

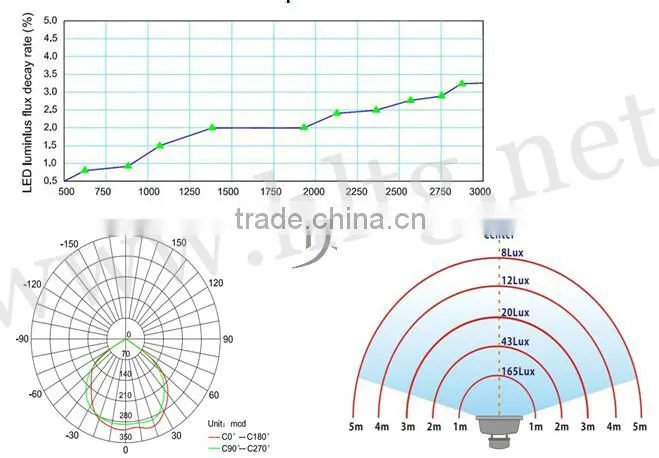

Ilumination Mechanial Specifications:

10W COB flood light led with CE Approval 120 degree beam angle

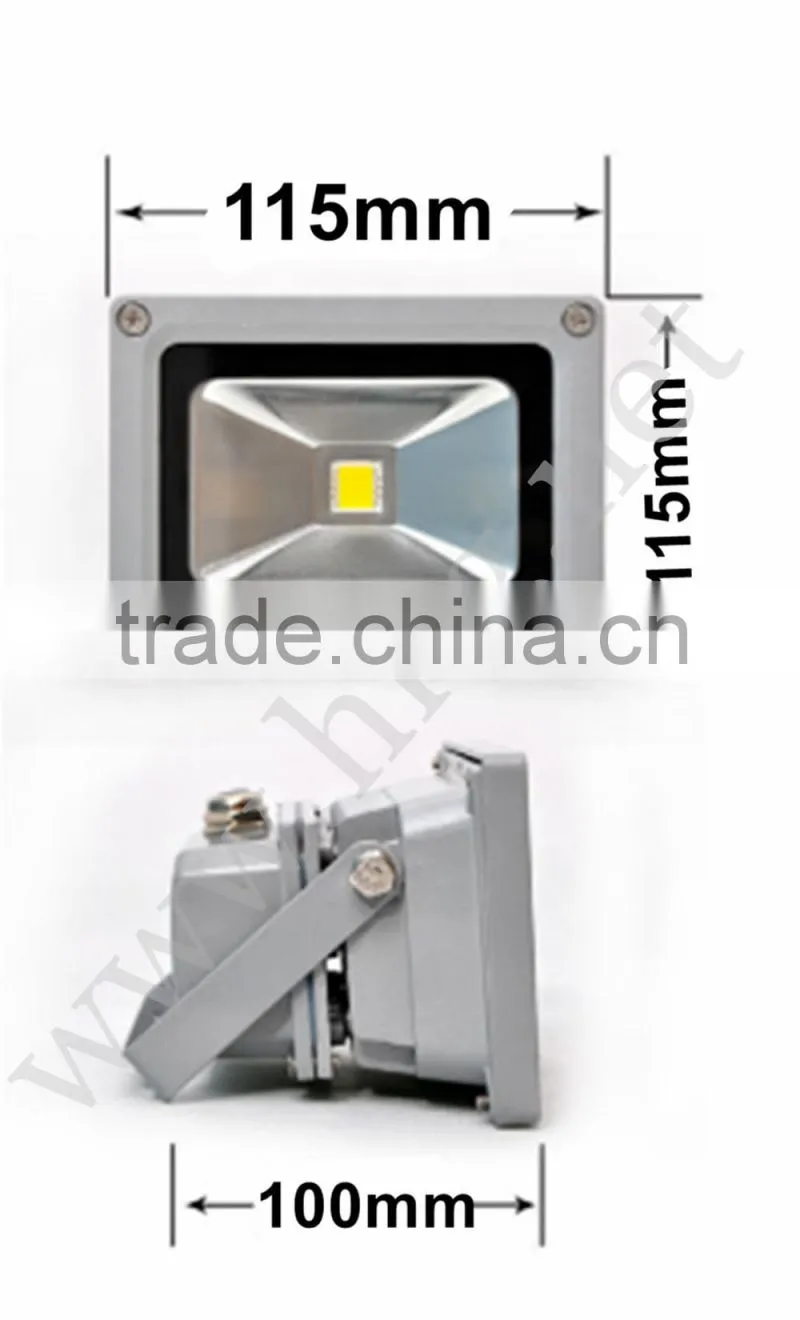

Dimension:  HL-FL-10W

 10W COB flood light led with CE Approval 120 degree beam angle

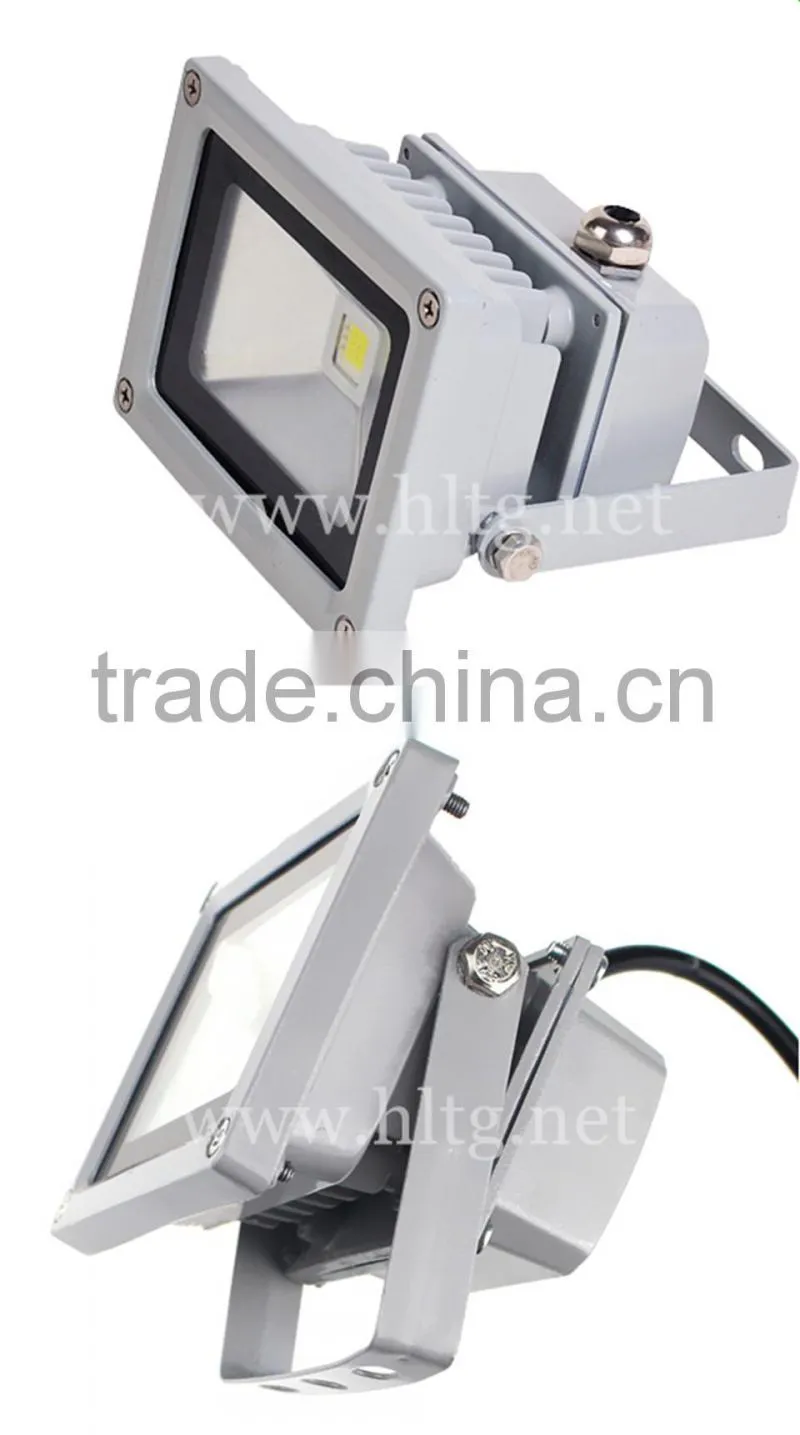

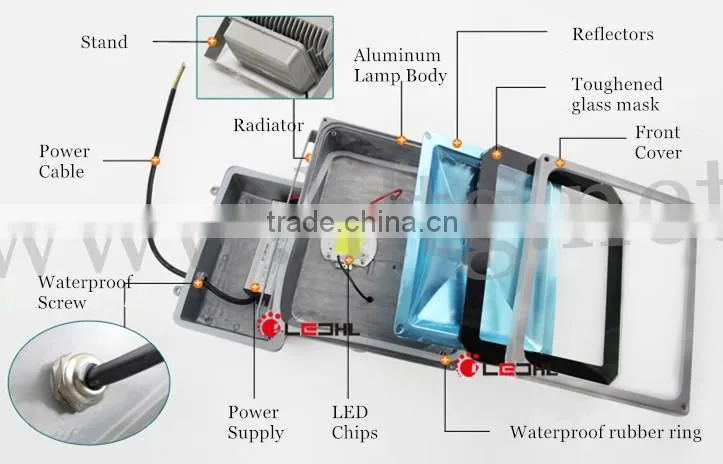

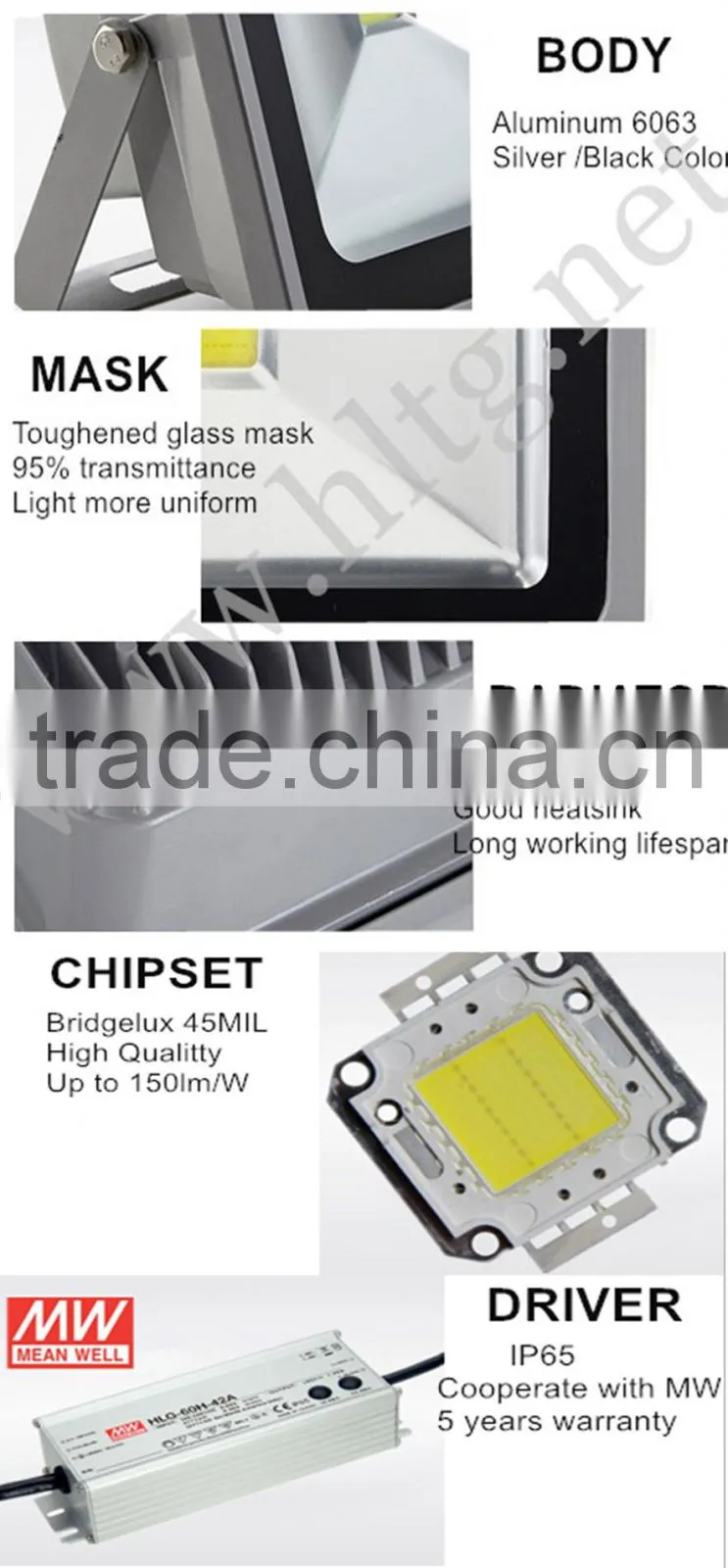

Products Details:

10W COB flood light led with CE Approval 120 degree beam angle



10W COB flood light led with CE Approval 120 degree beam angle



10W COB flood light led with CE Approval 120 degree beam angle

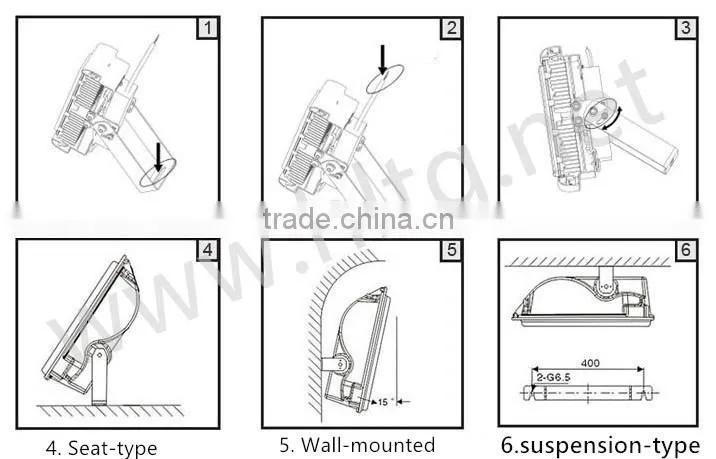

Installation:
10W COB flood light led with CE Approval 120 degree beam angle

10W COB flood light led with CE Approval 120 degree beam angle
