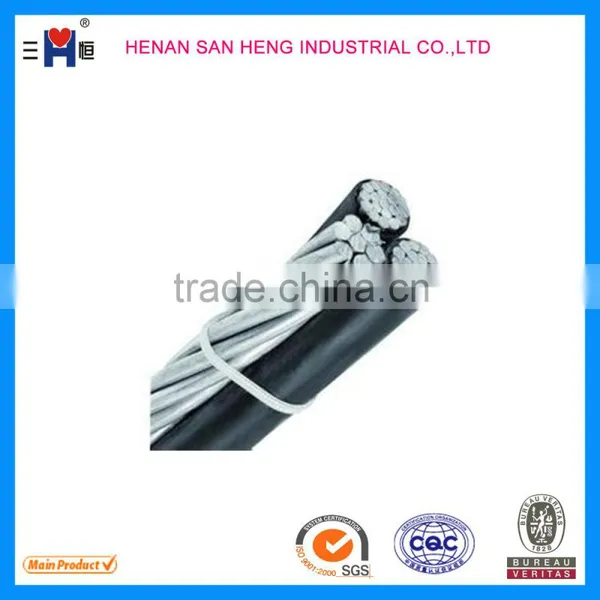

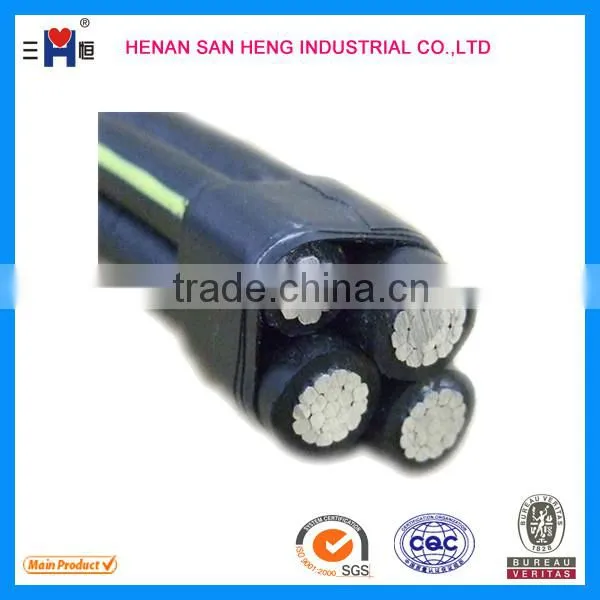

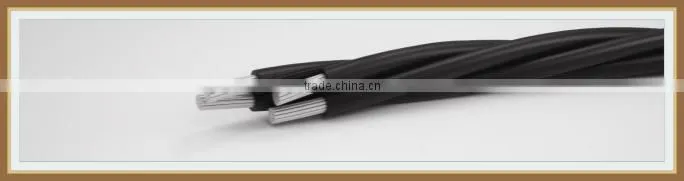

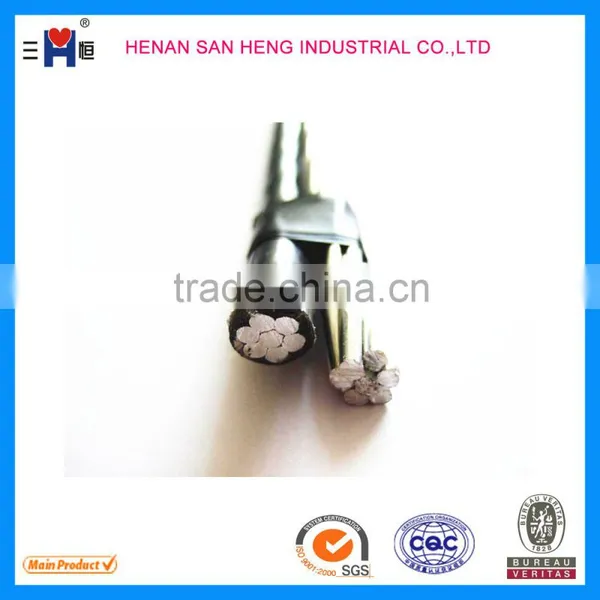

A. Application
The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used inrebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting, and temporary service for construction.
B. Standard
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5.Compressed Round Stranded Aluminum Conductors Single Input Wire. It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
C. specification
1 The basic construction is as follows: single core power core consisting of standard aluminum conductors, insulated with pvc insulation
2 Application:To be used at cottages of 600V phaseto-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
3. Packaging Detail: Wooden drums, steel drums or steel-wooden drums.
4. Delivery Detail: Within 15 working days and depending on the quantity.
ominal cross-section area (mm2) |
Conductor structure |
Insulation material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx.weight (kg/km) |
Packing meters per drum |
|||
Phase (CompactedAL) |
Neutral(bare ACSR) |
||||||||
(No./mm) |
Aluminum (No./mm) |
Steel (No./mm) |
|||||||
1x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
PVC/PE/XLPE |
1.2 |
12.5 |
121.9 |
250-4000m |
|
1x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
PVC/PE/XLPE |
1.2 |
14.9 |
182.2 |
250-4000 |
|
1x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
PVC/PE/XLPE |
1.4 |
17.5 |
254.7 |
250-3500m |
|
1x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
PVC/PE/XLPE |
1.4 |
23.6 |
382.2 |
250-3000m |
|
1x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
PVC/PE/XLPE |
1.6 |
27.6 |
528.2 |
250-3000m |
|
2x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
PVC/PE/XLPE |
1.2 |
14.2 |
187.6 |
250-4000m |
|
2x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
PVC/PE/XLPE |
1.2 |
16.7 |
273.8 |
250-3500m |
|
2x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
PVC/PE/XLPE |
1.4 |
19.7 |
386.9 |
250-3500m |
|
2x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
PVC/PE/XLPE |
1.4 |
26.1 |
617.2 |
250-3000m |
|
2x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
PVC/PE/XLPE |
1.6 |
30.5 |
850.9 |
250-3500m |
|
3x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
PVC/PE/XLPE |
1.4 |
29.7 |
1024.3 |
250-3000m |
|
3x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
PVC/PE/XLPE |
1.6 |
34.6 |
|
|
|
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
1.Q:Are you a factory or trading company?
A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A: Our factory has gained BV,SGS,CCC,ISO, certification.
