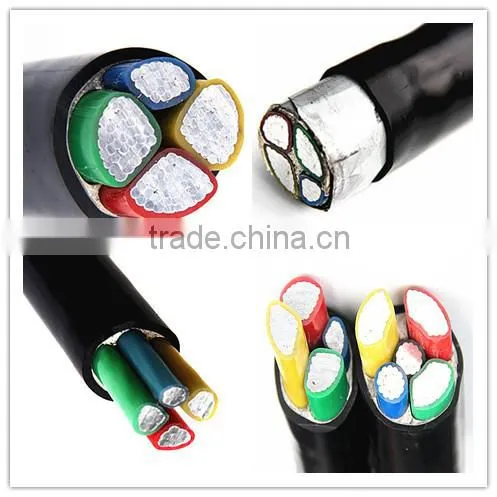

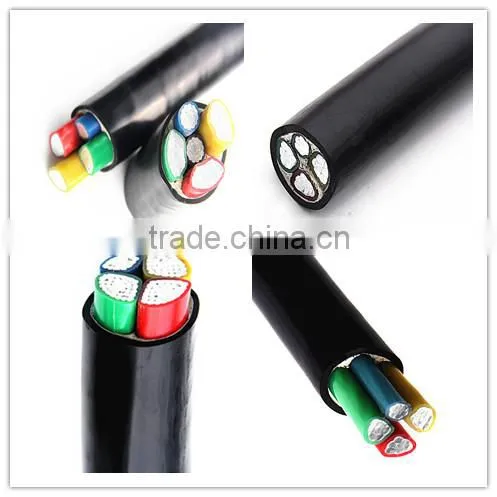

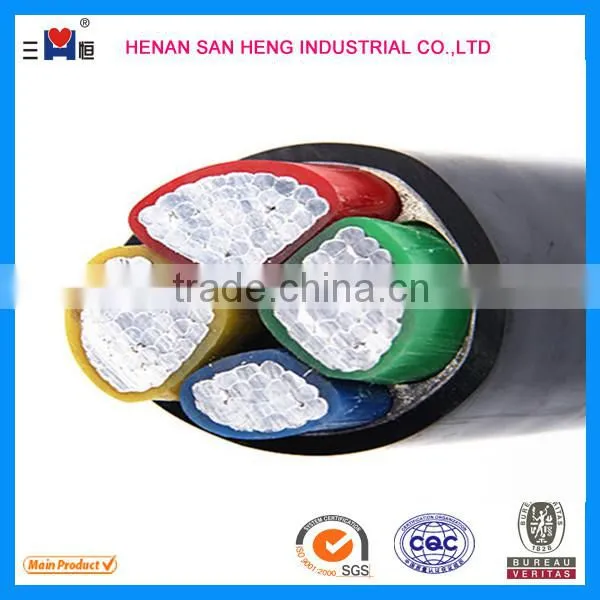

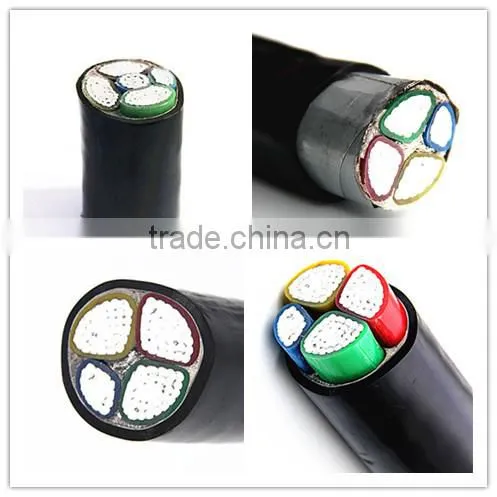

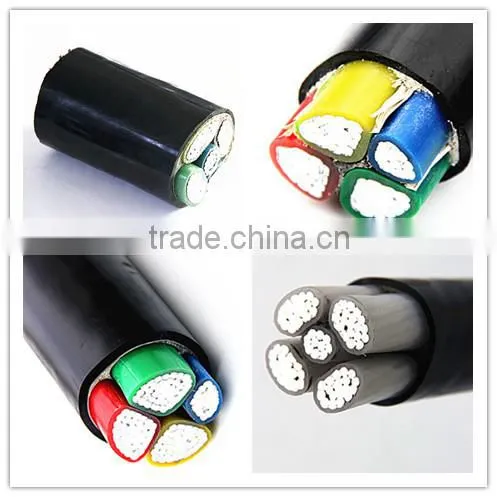

Help Center0.6/1KV High Quality3*150mm+1 Aluminum Core Power Cable NA2XY
Related Products
-
H05v-u H05v-r H05v-k/ Aluminium / PVC Coated /Electricial Building WiringUS$ 0.01 - 0.1MOQ: 5 Kilometers -
Stranded Core/low Voltage/ Aluminium / PVC Coated /housing WiringUS$ 0.01 - 0.1MOQ: 5 Kilometers
-
Aluminium PE Insulate Electric Cable Wire Annealed Copper ConductorUS$ 0.1 - 5MOQ: 5 Kilometers
-
pe Insulation Pvc Coated Aluminum Core Agricultural Buried CableUS$ 0.5 - 80MOQ: 5 Kilometers
-
PE Insulated Pvc Sheathed Agricultural Aluminum Wire Buried Cable Nlvv NlyvUS$ 0.13 - 39MOQ: 5 Kilometers
Specifications
XLPE/PVC Insulated Power Cable1. Professional QC inspection
2. Good price
3. Fast delivery
4. Manufacturer
aluminum conductor xlpe insulation power cable YJLV NA2XY
xlpe/pvc insulated power cable
1. Applications
1.1 Rated voltage U0/U should be 450/750 V~600/1000V
U0~Valid value of the voltage between main insulated conductor and earthing (metal shield, metal sheath of environment dielectric).
U~valid value of voltage between any two phases conductor in multicourse cable or single core cable system.
When AC. System is applied, the rated voltage of cables should be at least equal to the nominal voltage of the system. When DC. System is applied; the nominal voltage of this system should not be more than the rated voltage of the system by 1.5 times.
1.2 The permitting long-term operating temperature of cable conductor should be
PVC insulation: 70
Chemical Sioplascable: 90
Irradiation XLPE :105~135
1.3 The installing temperature of cable should not be less than 0. Recommending permitted bending radius:
Non-armored cable: not less than the overall diameter f cable by 6 times
Shielded flexible cable: not less than the overall diameter of cable by 6 times
2.Type & Name of Cable
Type |
Description |
Main applications |
KVV |
Copper core PVC insulated and sheathed control cable |
For laying indoor, in tunnels, ducts, conduit etc.permanent place |
KVVP |
Copper core PVC insulated and sheathed copper wire braiding shielded control cable |
For laying indoor, in tunnels, ducts, conduit etc.permanent place where shield required. |
KVVP2 |
Copper core PVC insulated and sheathed copper tape shielded control cable |
For laying indoor, in tunnels, ducts, conduit etc.permanent place where shield required. |
KVV22 |
Copper core PVC insulated and sheathed steel tape armoured control cable |
For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force |
KVV32 |
Copper core PVC insulated and sheathed steel wire armoured control cable |
For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force |
KVVR |
Copper core PVC insulated and sheathed flexible control cable |
For laying indoor, and flexible and shield required etc.place, easy to move |
KVVRP |
Copper core PVC insulated and sheathed copper wire braiding shielded flexible control cable |
For laying indoor , and flexible and shield required etc.place ,easy to move |
ZR-KVV |
Copper core PVC insulated and sheathed flame-retarding control cable |
For being applied on heat engine and heat controlling appliance |
|
1 core
|
1*10; 1*16; 1*25; 1*35; 1*50; 1*70; 1*95; 1*120; 1*150; 1*185; 1*240; 1*300; 1*400
|
|
2 core
|
2*1.5; 2*2.5; 2*4; 2*6; 2*10; 2*16; 2*25; 2*35; 2*50; 2*70; 2*95; 2*120; 2*150; 2*185; 2*240; 2*300
|
|
3core
|
3*1.5; 3*2.5; 3*4; 3*6; 3*10; 3*16; 3*25; 3*35; 3*50; 3*70; 3*95; 3*120; 3*150; 3*185; 3*240; 3*300
|
|
4 core
|
4*4; 4*6; 4*10; 4*16; 4*25; 4*35; 4*50; 4*70; 4*95; 4*120; 4*150; 4*185; 4*240 |
|
5 core
|
5*1.5; 5*2.5; 5*4; 5*6; 5*10; 5*16; 5*25; 5*35; 5*50; 5*70; 5*95; 5*120; 5*150; 5*185; 5*240; |
|
3+1 core |
3*4+1*2.5; 3*6+1*4; 3*10+1*6; 3*16+1*10; 3*25+1*16; 3*35+1*16; 3*50+1*25; 3*70+1*35. |
|
4+1 core |
4*2.5+1*1.5; 4*4+1*2.5; 4*6+1*4; 3*10+1*6; 4*16+1*10; 4*25+1*16; 4*35+1*16; 4*50+1*25; 4*70+1*35; 4*95+1*50; 4*120+1*70; 4*150+1*70; 4*185+1*95; 4*240+1*120; 4*300+1*150. |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, first-class technicians, Elite team, high quality workers.
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
