Specifications
Professional conductor manufacturerState Grid
ISO 9001
Internation compliance

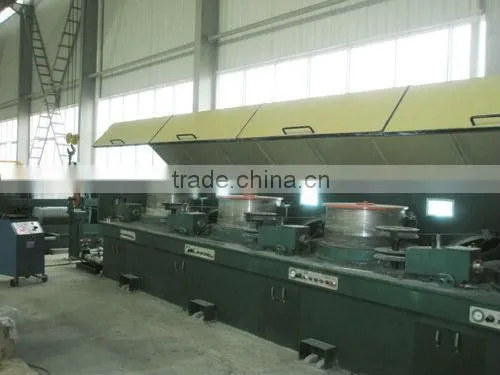

Leading CABLE production base
1. Applications
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2. Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR(Aluminum Conductor Steel Reinforced)
3)AAC(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)
3.Standard
AAAC,AAC,ACSR,AACSR,ACSR/AW Conductors can be produced fully in accordance with international standard such as IEC,BS,ASTM,DIN,JIS,NF,CSA,AS/NZS.

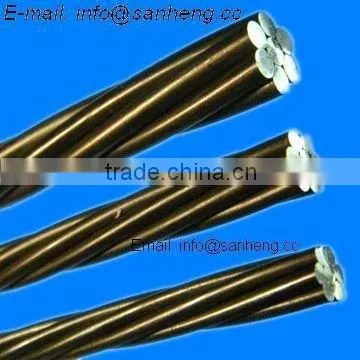

ALUMINIUM CONDUCTORS STEEL REINFORCED(ACSR)
1, ACSR is widely used in the overhead power distribution system,and it is one of the main products to form electrified wire network.
2,The standard of ACSR is identical and consulted to IEC 61089“Circular Central Stranded Overhead Cable”and the content of Appendix 1,laid down Chinese National Standard GB 1179" Circular Central Stranded Overhead Cable".
3,The recommended Specification is as the following form, We can produce products according to the requirement of our clienteles and the standard of BS215,DIN48204,JISC3109,ASTMB232.
Model:
All Aluminum Conductor (AAC)
Aluminum Conductor Steel Reinforced (ACSR)
All Aluminum Alloy Conductor (AAAC)
All Steel Stranded Conductor (ASSC)
All Aluminum Conductor Alloy Reinforced (AACAR)
Aluminum conductor reinforced is in accordance with BS215-2-70
|
Nominal Area (mm2) |
Stranding Wire No. and Dia. (No./mm) |
Calculated Area (mm2) |
Approx. Overall Dia.(mm) |
Approx. Weight (kg/km) |
Calculated Min. Resistance Load(KN) |
Calculated DC Resistance at 20°C (Ω/km) |
Code Name |
|||
Al. |
St. |
Al. |
St. |
Total. |
||||||
20 |
6/2.11 |
1/2.11 |
20.98 |
3.50 |
24.48 |
6.33 |
84.85 |
7.90 |
1.368 |
Squirrel |
25 |
6/2.36 |
1/2.36 |
26.24 |
4.37 |
30.62 |
7.08 |
106.10 |
9.61 |
1.0930 |
Gopher |
30 |
6/2.59 |
1/2.59 |
31.61 |
5.27 |
36.88 |
7.77 |
127.80 |
11.45 |
0.9077 |
Weasel |
40 |
6/3.00 |
1/3.00 |
42.41 |
7.07 |
49.48 |
9.00 |
171.50 |
15.20 |
0.6766 |
Ferret |
50 |
6/3.35 |
1/3.35 |
52.88 |
8.81 |
61.07 |
10.05 |
213.80 |
18.35 |
0.5426 |
Rabbit |
60 |
6/3.66 |
1/3.66 |
63.12 |
10.52 |
73.64 |
10.98 |
255.30 |
21.77 |
0.4546 |
Mink |
60 |
12/2.59 |
7/2.59 |
63.23 |
36.88 |
100.10 |
12.95 |
463.60 |
52.94 |
0.4566 |
Skunk |
70 |
12/2.79 |
7/2.79 |
73.37 |
42.80 |
116.20 |
13.95 |
538.10 |
61.20 |
0.3936 |
Horse |
70 |
6/4.09 |
1/4.09 |
78.84 |
13.14 |
91.98 |
12.27 |
318.90 |
27.05 |
0.3639 |
Raccoon |
100 |
6/4.72 |
7/1.57 |
105.00 |
113.55 |
118.50 |
14.15 |
394.30 |
32.70 |
0.2733 |
Dog |
150 |
30/2.59 |
7/2.59 |
158.10 |
36.88 |
194.90 |
18.13 |
725.70 |
69.20 |
0.1828 |
Wolf |
150 |
18/3.35 |
1/3.35 |
158.70 |
8.81 |
167.50 |
16.75 |
505.70 |
35.70 |
0.18158 |
Dingo |
175 |
30/2.79 |
7/2.79 |
183.40 |
42.80 |
226.20 |
19.53 |
842.40 |
79.80 |
0.1576 |
Lynx |
175 |
18/3.61 |
1/3.61 |
184.30 |
10.24 |
194.50 |
18.05 |
587.60 |
41.10 |
0.1563 |
Caracal |
200 |
30/3.00 |
7/3.00 |
212.10 |
49.48 |
261.50 |
21.00 |
973.860 |
92.25 |
0.1363 |
Panther |
200 |
18/3.86 |
1/3.86 |
210.60 |
11.70 |
222.30 |
19.30 |
671.40 |
46.55 |
0.1367 |
Jaguar |
250 |
30/3.35 |
7/3.35 |
264.40 |
61.70 |
326.10 |
23.45 |
1214.00 |
111.40 |
0.1093 |
Bear |
300 |
30/3.71 |
7/3.71 |
324.30 |
75.67 |
400.00 |
25.97 |
1489.00 |
135.70 |
0.08912 |
Goat |
300 |
18/4.78 |
7/1.68 |
323.10 |
15.52 |
338.60 |
24.16 |
1012.00 |
69.64 |
0.08914 |
Batang |
