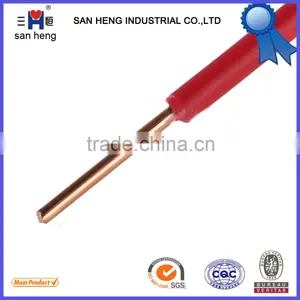

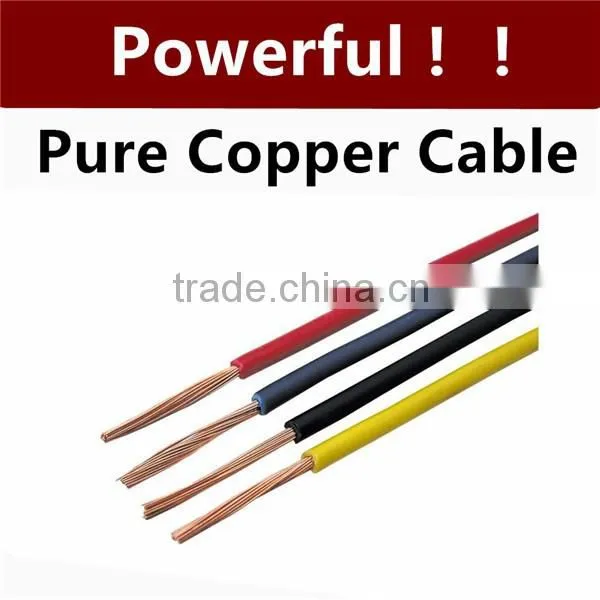

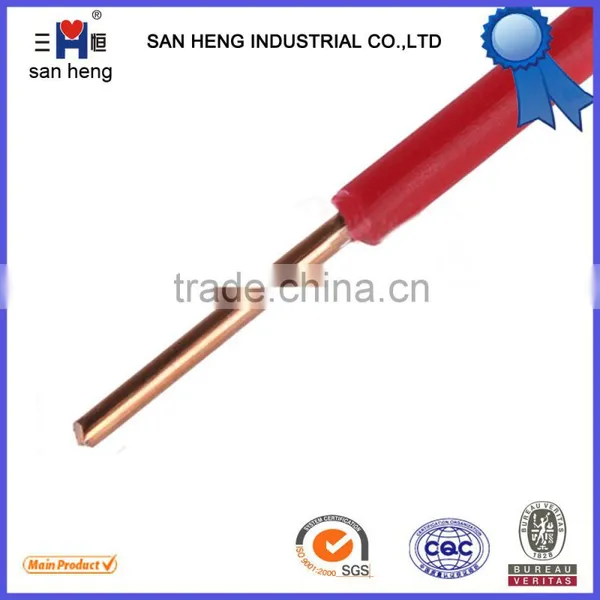

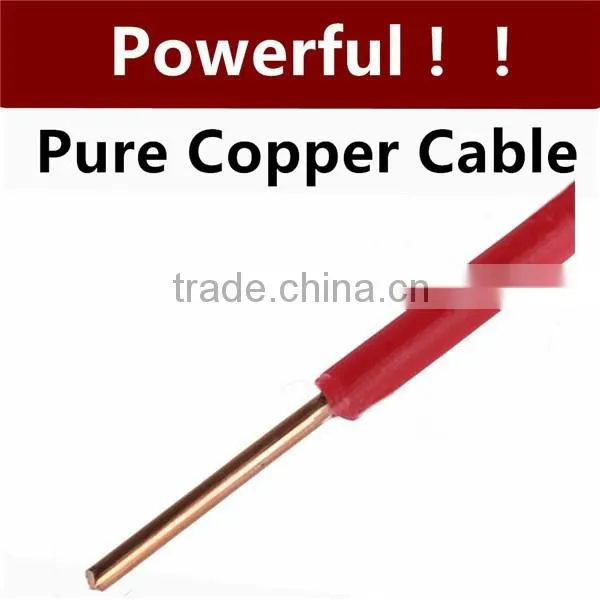

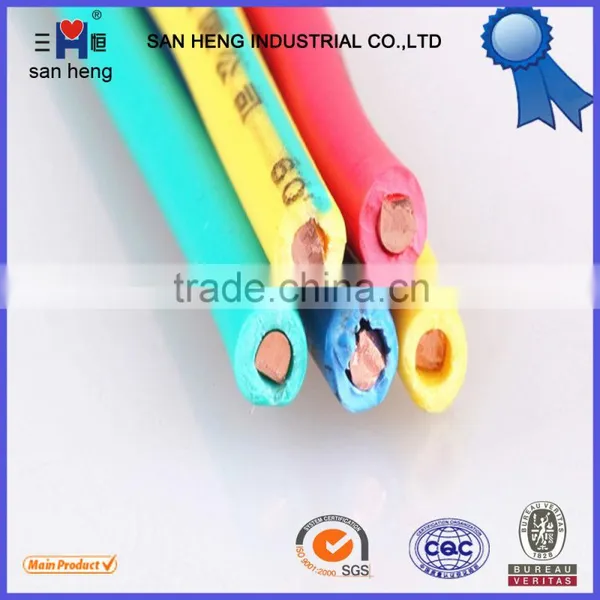

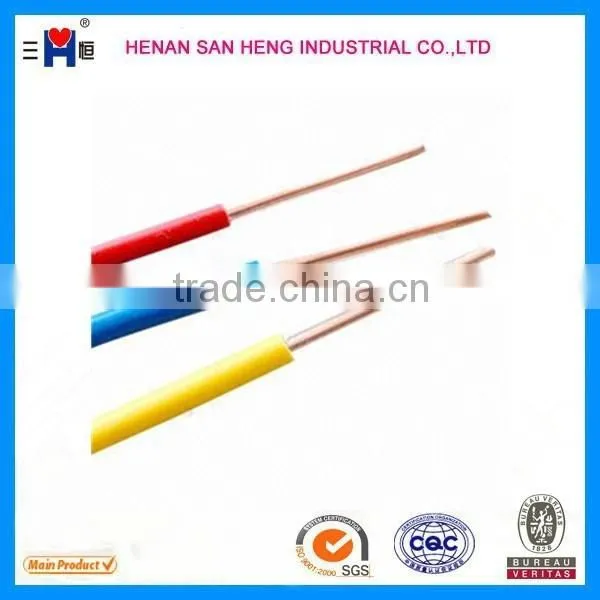

450/750V PVC insulated electrical house wire
()
alibaba china free samples electrical wiring
Copper Wire Conductor: Copper/Aluminum
Insulation: PVC
Apply voltage: 300/500V 450/750V
Ambient Temperature: Above 0°C
Operation temperature: For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.
| Type | Designation | Core No. | Sectional area (mm²) |
Rated Voltaged (V) |
| 60227IEC01 BV |
General purpose single core hard conductor wire without sheath |
1 | 1.5~400 | 450/750 |
| BLV | Al conductor PVC insulated wire | 1 | 2.5~400 | 450/750 |
| BVR | Cu conductor PVC insulated soft cable | 1 | 2.5~70 | 450/750 |
| BVV | Light type PVC sheath wire | 2~5 | 1.5~35 | 300/500 |
| BVV | Cu conductor PVC and sheath circular cable | 1 | 0.75~10 | 300/500 |
| BLVV | Al conductor PVC and sheath circular cable | 1 | 2.5~10 | 300/500 |

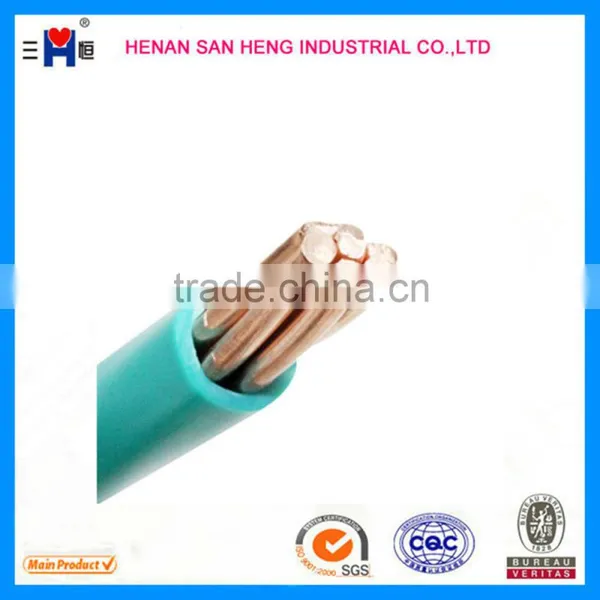

Type BVR 450/750V copper conductor PVC insulated flexible wire
| Nominal Cross- Section area mm² |
Calculation Outer Diameter mm |
Max.d.c,resistance at 20°C(Copper-cored) Ω/km |
Mini.insulation Resistance at 70°C (Copper-cored) MΩ.km |
Product approximate weight kg/km |
|
| Copper-cored | Aluminum-cored | ||||
| 1x1.5 | 2.7 | 12.2 | 0.011 | 19.5 | |
| 1x1.5 | 2.9 | 12.1 | 0.010 | 19.5 | |
| 1x2.5 | 3.3 | 7.41 | 0.010 | 30.8 | 15.4 |
| 1x2.5 | 3.6 | 7.41 | 0.010 | 31.5 | |
| 1x4 | 3.8 | 4.61 | 0.0085 | 45.6 | 21.0 |
| 1x4 | 4.1 | 4.61 | 0.0077 | 45.6 | |
| 1x6 | 4.3 | 3.08 | 0.0070 | 65.3 | 28.2 |
| 1x6 | 4.7 | 3.08 | 0.0065 | 65.3 | |
| 1x10 | 6.0 | 1.83 | 0.0065 | 111 | 49.0 |
| 1x16 | 7.1 | 1.15 | 0.000 | 169 | 69 |
| 1x25 | 8.8 | 0.727 | 0.000 | 265 | 108 |
| 1x35 | 9.9 | 0.524 | 0.0040 | 359 | 140 |
| 1x50 | 11.1 | 0.387 | 0.0045 | 485 | 190 |
| 1x70 | 13.5 | 0.268 | 0.0035 | 685 | 258 |
| 1x95 | 15.8 | 0.193 | 0.0035 | 946 | 354 |
| 1x120 | 17.4 | 0.153 | 0.0032 | 1181 | 433 |
| 1x150 | 19.4 | 0.124 | 0.0032 | 1453 | 534 |
| 1x185 | 21.6 | 0.0991 | 0.0032 | 1821 | 668 |
| 1x240 | 24.6 | 0.0754 | 0.0032 | 2383 | 869 |
| 1x300 | 27.5 | 0.0601 | 0.0030 | 2983 | 1082 |
| 1x400 | 30.8 | 0.0470 | 0.0028 | 3800 | 1369 |
Our service:
Inquiry response: Your inquiries will be reply in 24hours.
Sample support: free samples are available in 3~5 days.
Delivery time: Your shipment will be loaded in 15~25days,depends on quantity.
Payment term: T/T,L/C, Western Union.
OEM is welcomed.
Note:
All the listed price is only for references, for latest price please contact us directly
1.Q:Are you a factory or trading company?
A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained BV,SGS, CCC,ISO certification.
