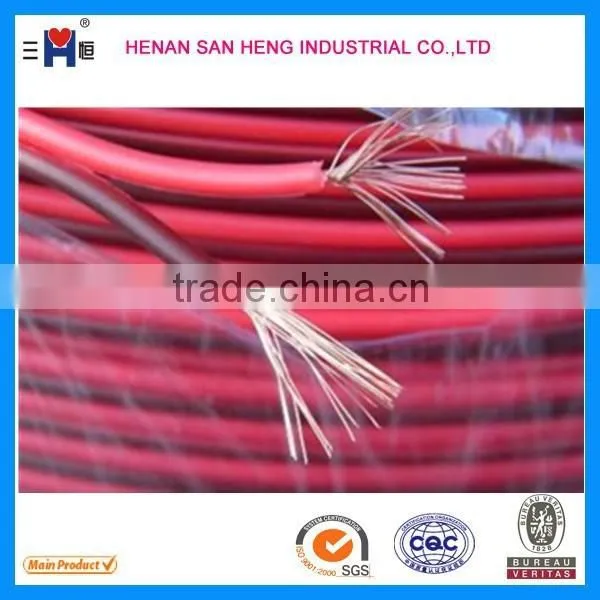

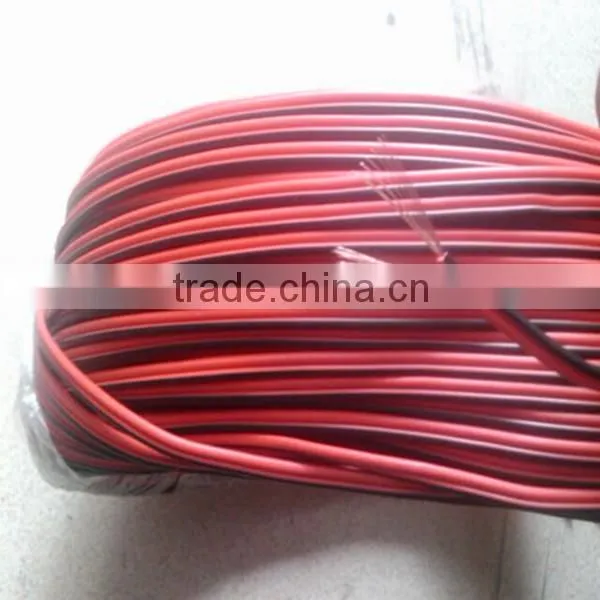

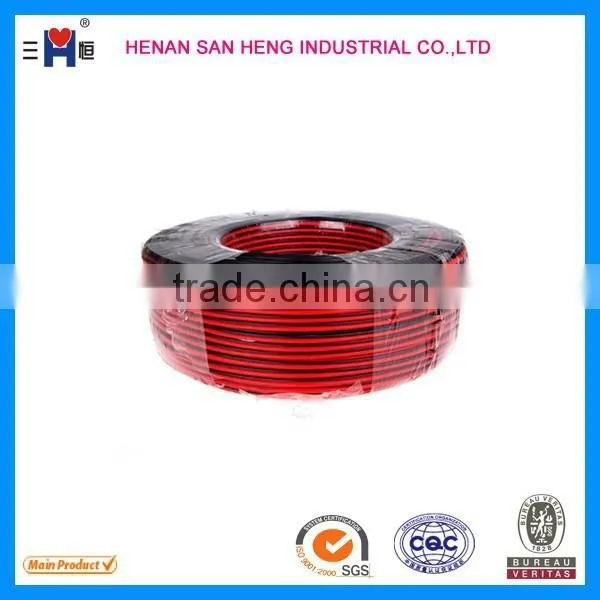

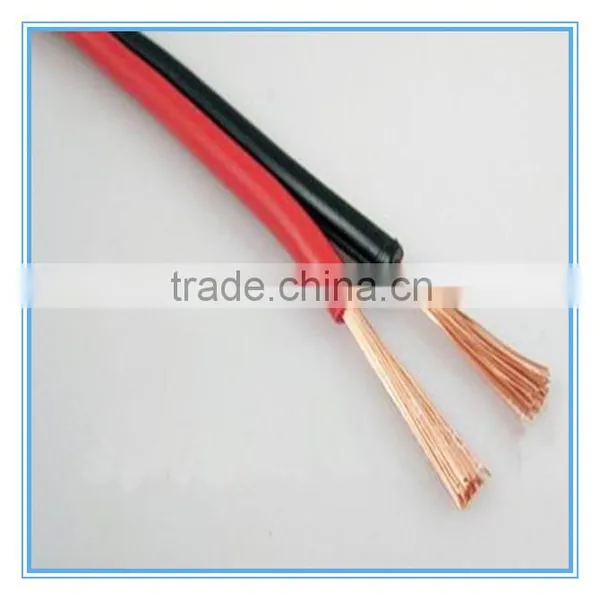

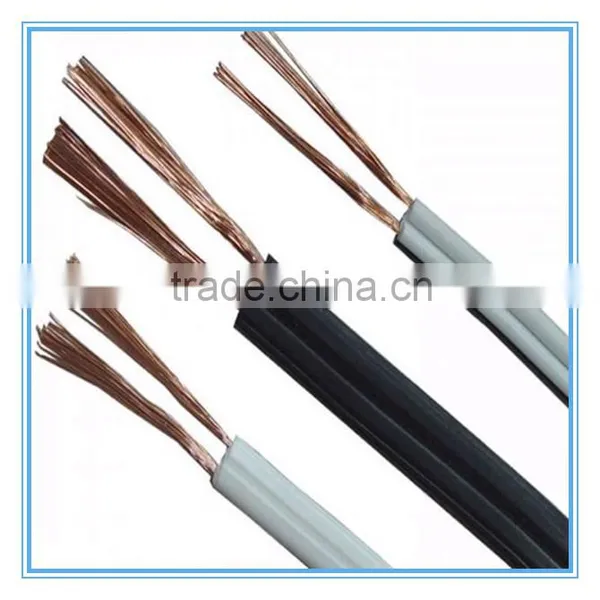

PVC Insulated flexible cord parallet twin copper wire
Applications
1.Home Applicance and Controlling Wire
2.Electric Instrument and Apparatus
3.Broadcasting System and Loudspeaker Equipment
4.Automatic Devices and Lightening
5.Audio and Power Transmission
Specification
1.Flexible OFC, Bare Copper, Tinned-Copper
2.PVC/Fire Resistant PVC/LoSH Insulated
3.Rated Voltage: 300/300V
4.Keep working under 70°C for long period operation
5.Reference Standard: GB/T5023.5-2008
Features
1.Multi-stranded/Flexible OFC, Copper, Tinned-copper wire conductor
2.Reliable Power Supply and Connection
3.RoHS Standard PVC
4.CE,SGS,ISO9001 Standard
5.Full 100M
PVC Insulated flexible cord parallet twin copper wire
Nominal section |
Core structure/diameter(mm) |
Max diameter(mm) |
Reference weight(kg/km) |
|
2*0.3 |
2*16/0.15 |
3.5 |
21.4 |
|
2*0.4 |
2*23/0.15 |
4.2 |
24.5 |
|
2*0.5 |
2*28/0.15 |
4.8 |
51.8 |
|
2*0.75 |
2*42/0.15 |
6.4 |
74.1 |
|
2*1.0 |
2*32/0.20 |
8 |
12.4 |
|
2*1.5 |
2*15/0.25 |
9.6 |
47.6 |
|
Conductor AWG Size |
Conductor Square meter (mm2) |
Conductor Diameter |
Overal 0iameter |
|
22 AWG |
2 * 0.5 |
28 * 0.15 |
2 * 4 |
|
20 AWG |
2* 0.75 |
42 * 0.15 |
2.2 * 4.4 |
|
18 AWG |
2 * 1.0 |
32 * 0.2 |
2.5 * 5 |
|
16 AWG |
2 * 1.5 |
48 * 0.2 |
3 * 6 |
|
12 AWG |
2 * 2.5 |
49 * 0.25 |
4.5 * 9 |
|
10 AWG |
2 * 4.0 |
56 * 0.3 |
5.5 * 11 |
|
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
Our packing and shipping
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
