Cast Epoxy Resin 40.5kV (35kV) Shielding Wall Through Busbar Bushing (TGZ2-35-B/TGZ2-B-40.5)
US$ 90 - 100
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang Electric
Model Number:
TGZ2-35-B (TGZ2-B-40.5)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24kV High Voltage Cast Switchgear BushingUS$ 10 - 15MOQ: 3 Pieces -
Wall Bushing InsulatorNegotiableMOQ: 3 Pieces
-
35kV Epoxy Resin Wall Bushing Suitable for SwitchgearNegotiableMOQ: 3 Pieces
-
24kV Busbar Bushing for KYN28A-24 Electrical SwitchgearNegotiableMOQ: 3 Pieces
-
24kV Busbar Bushing for MV SwitchgearUS$ 27 - 30MOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang Electric
Model Number
TGZ2-35-B (TGZ2-B-40.5)
Type
Insulation Sleeving
Material
Other, Epoxy Resin
Application
Other, High Voltage, Switchgear
Rated Voltage
40.5kV
Tensile Strength
/

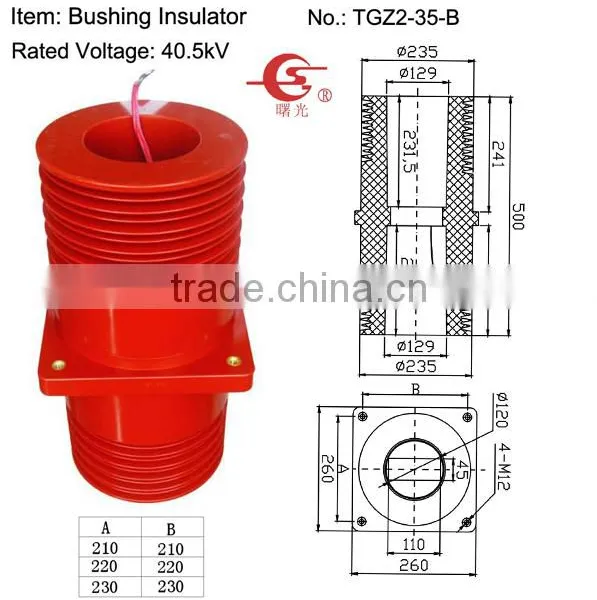

Name: 40.5kV (35kV) Sheilding Wall Through Busbar Bushing
Model: TGZ2-35-B ( TGZ2-B-40.5)
Material: Cast Epoxy Resin;
Power Frequency Withstand Voltage: 95kV/1min;
Lightening Impulse Withstand Voltage: 185kV;
Partial Discharge : less than 10 pc;
Screw Distance: 210*210mm, 220*220mm, 230*230mm;
Busbar Size: 65*15mm, 110*45mm, 110*20mm, etc., for other size, please kindly contact us.
The models shown on this website are not complete. Please contact for product catalogue if you need other model. Thank you.
