Specifications
pocket spring mattress machinery1. automatic continuous line
2. servo motor control

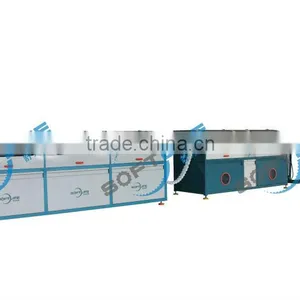

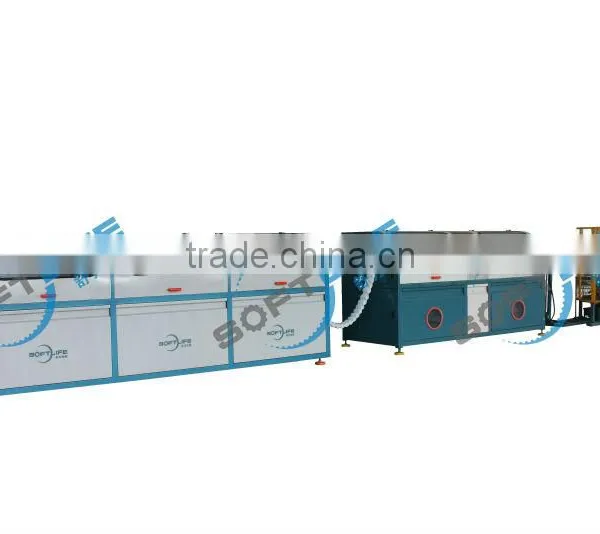

SL-12PA Auto pocket spring production line is made up of SL-12P Pocket spring machine and SL-08A Auto pocket spring assembling machine.
. Adopted automatic technique, it can finish all the process of production from pocket spring to mattress.
. Its advantage: easy to operate,high efficiency and lower noise.
. The production line is compact so it can reduce the impropriate space in the workshop. Compare to other pocket spring production line, our machine has a fairly high cost performance.
. The production line is controlled by servo motor, so it will be accurate and fluent with high stability.
. The control parameter can be setting by customer for the diversification demand.
. Auto stop when run out materials.
. With CE certificate.
Part of machine |
SL-12P + SL-08A |
Product efficiency |
70 coils / min. |
Spring diameter |
End @45-60mm; Center@60-80mm |
Spring height |
80-120mm / or 120-180mm / or 160-220mm |
Steel wire diameter |
@1.8-2.2mm |
Top and bottom non-woven |
With and without |
Max. Power |
32KW |

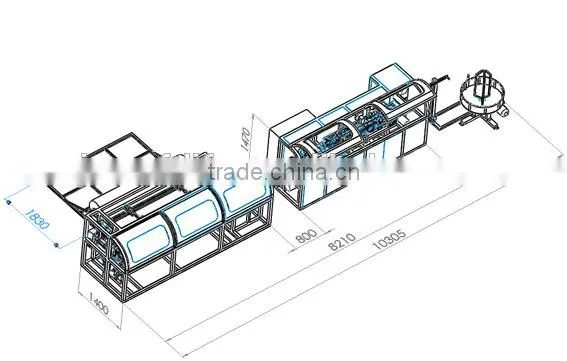

Space dimension (L x W x H) |
9500 x 3000 x 1850mm |
Weight |
4000kgs |
Send Inquiry to This Supplier
