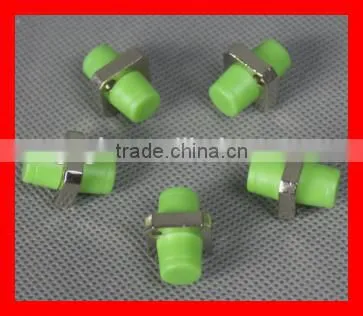

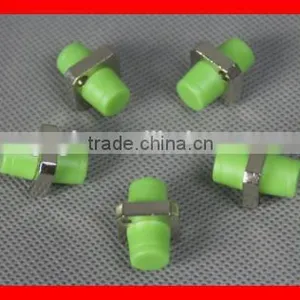

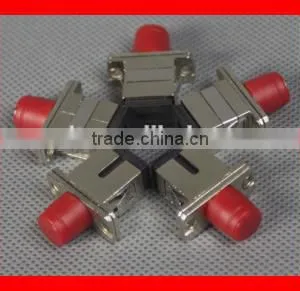

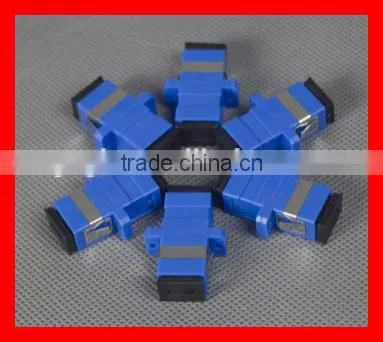

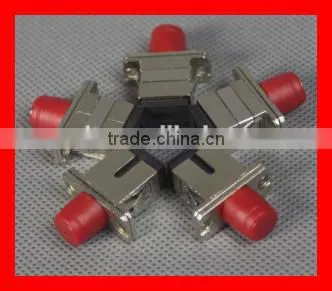

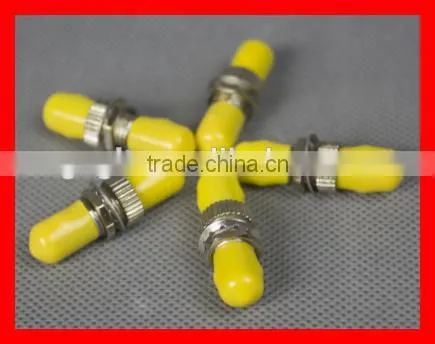

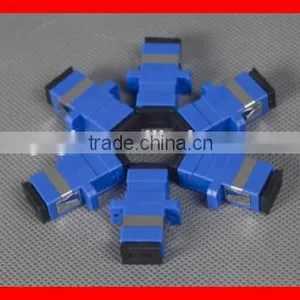

SC/LC/FC/ST Fiber Optic Adpters/Fiber Optic Adpters
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
- Zirconia sleeves or Phosphor bronze sleeves
- D-shaped easily installs into panel mount
- RoHS compliant
Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
E2000 |
||||||
|
|
SM |
MM |
SM |
MM |
SM |
||||
|
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Exchange ability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Repeat ability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Durability |
Time |
>1000 |
>1000 |
>1000 |
||||||
Operating Temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
||||||
Storage Temperature |
℃ |
-45~85 |
-45~85 |
-45~85
|
||||||
- Fiber Optic Telecommunications
- LAN (Local Area Network)
- FTTH (Fiber To The Home)
- CATV&CCTV System
- High speed transmission systems
- Fiber optic sensing
- Industtial, Mechanical and Military
