Home > Transportation > Truck > Dump Truck > Hydraulic Pump for Dump Truck SINOTRUK HOWO 375HP 6X4 DUMP TRUCK ZZ3257N3447C1

Hydraulic Pump for Dump Truck SINOTRUK HOWO 375HP 6X4 DUMP TRUCK ZZ3257N3447C1

Name: Hydraulic Pump for Dump Truck SINOTRUK HOWO 375HP 6X4 DUMP TRUCK ZZ3257N3447C1
Brand: SINOTRUK
SKU: 109822463

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

31 - 40t

Horsepower:

351 - 450hp

Evangel (Shanghai) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 31 - 40t

Horsepower 351 - 450hp

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 25000

Place of Origin China

Brand Name SINOTRUK

Model Number ZZ3257N3447C1

Dimensions (L x W x H) (mm) 8.23x2.5x3.44

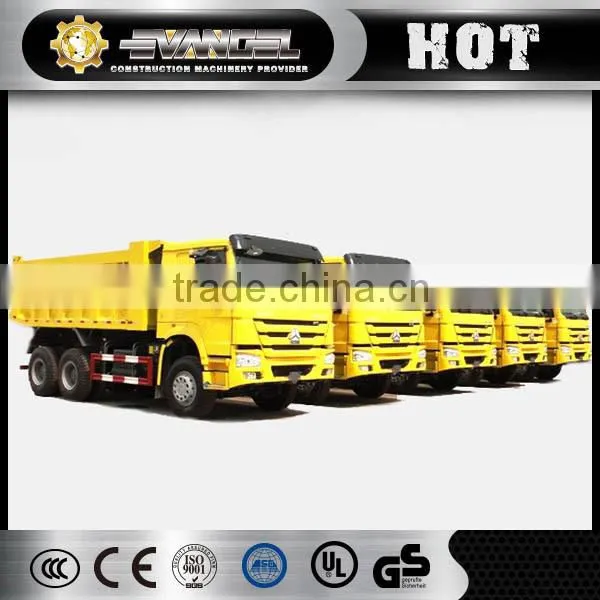

SINOTRUK HOWO 375HP 6X4 DUMP TRUCK ZZ3257N3447C1

Main technical parameters:

Model	ZZ3257N3447C1
Curb weight ( kg)	15120
Total weight (kg)	31000
Engine	Make: SINOTRUK Diesel: 4-stroke direct injection diesel engine Model:WD615.47,371HP , electronic controlled common rail engine 6-cylinder in-line with water cooling, turbo-charging and intercooling Emission standard:EURO II Output: 273KW Displacement: 9.726L
Cab	Standard cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel.
Transmission	HW19710, SINOTRUK 10forward&1reverse gearbox
Steering	ZF8098, German hydraulic steering with power assistance
Driving axle	HC16
Front axle	HF9 HOWO front axle with disc brake
Rear axle	HC16
Overhang front/rear mm	1500/1939
Wheel base mm	3625+1350
Tires	12.00-20
Approach/departure angle	19/23°
Lift of carriage	Front/Middle lift (whole HYVA NETHERLANDS hydraulic front lifting cylinder)
Van dimension mm	5600x2300x1400
Overall sizes mm	8200×2550×3450
