Specifications

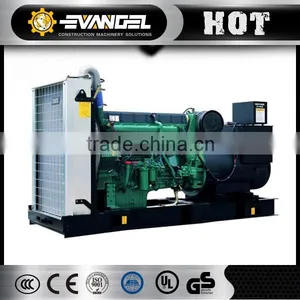

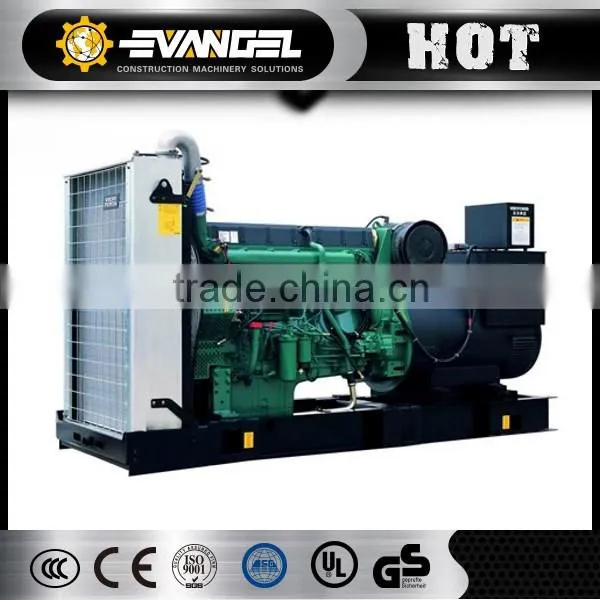

150kw Volvo Diesel engine Marine Generator Setvolvo penta marine engine
volvo penta marine diesel
Product: 150 Kw Electric Generator Volvo Diesel Generation Sets
Genset Technical Data | |
Prime power |
150 kW |
Standby power |
165 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
TAD732GE |
Alternator model |
MP-150-4 |
VOLVO Diesel Engine Technical Data | |
Engine Model |
TAD732GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged |
Bore×Stroke |
108 x130 mm |
Rated speed |
1500rpm |
Displacement |
7.15 L |
Compression Ratio |
18.0:1 |
Prime Power |
162 KW |
Speed Governor |
Electronic |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
213g/kw.h |
Starter Motor |
24V |
Marathon Alternator Technical Data | |
Alternator model |
MP-150-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
150 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400V (Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Dimension and Weight(for reference only)
Overall size (L*W*H): 2550*1050*1500 mm
Weight: 1600kg
Control System HGM6110
All gensets have a control cubicle (the smart gen HGM6110 as standard) mounted on an isolated support, which has the following features.
The control module display
Generator voltage
Generator voltage
Output frequency
Engine speed
Battery voltage
Engine run-time (Hours)
The control module display for failure information
Overspeed / underspeed
Emergency stop
Low oil pressure
High water temperature
Failure to start
Battery charger failure
Automatic shutdown
Low engine oil pressure
High engine water temperature
Overspeed/underspeed
Failure to start after three attempts
