SPM TWS 600Triplex Plunger Pump
API Standard; Cementing

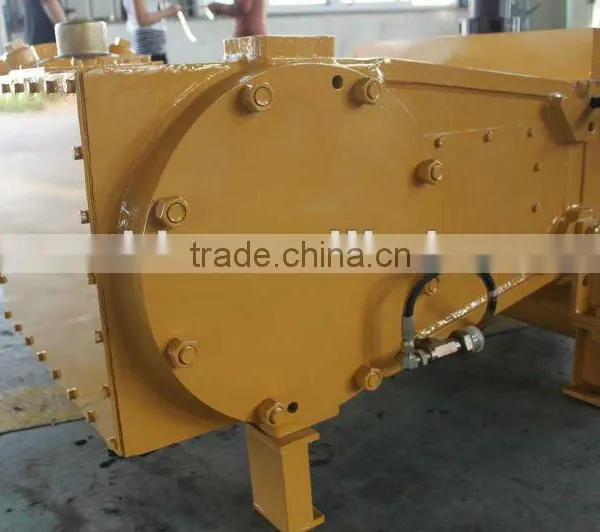

SPM TWS 600
Triplex Plunger Pump
WTD 600 Triplex plunger pump is horizontal triplex single acting plunger pump. It is with external reducing casing,which can be installed in a number of different locations as required.
The fluid end of this model is using hydraulic-quality forged alloy with various size of plunger.
The pump is with high power,high pressure,small volume,mainly used for high-pressure cementing job,and it also can be used in small fracturing equipment(Well Service).
Model: WTD 600 Triplex Plunger Pump
SPM TWS 600
(Power end parameter):
Rated Max.Brake Horsepower: 600BHP(447Kw)
Maximum Rod Load: 100000lbs(43,360Kg)
Stroke Length: 6" (152.4mm)
Gear Ratio: 4.6:1
Length: 50.25"(1276mm)
Width: 52.93"(1344mm)
Height: 23.88"(607mm)
Weight Dry(Approx): 4600lbs(2086Kg);
Performance Date:
Plunger Diameter |
Output per Rev |
Displacement at pump Strokes per Minute/Pinion RPM |
|||||||||
50/230 |
120/552 |
200/920 |
300/1380 |
450/2070 |
|||||||
In(mm) |
Gal/Rev (Liter/rev) |
gpm (ipm) |
psi (kg/cm2) |
gpm (ipm) |
psi (kg/cm2) |
gpm (ipm) |
psi (kg/cm2) |
gpm (ipm) |
psi (kg/cm2) |
gpm (ipm) |
psi (kg/cm2) |
2-1/2"(63.5) |
0.38(1.4) |
19 (72) |
20,372 (1436) |
46 (174) |
20,165 (1421) |
76 (290) |
12,099 (853) |
115 (434) |
8,066 (568) |
172 (651) |
5,377 (379) |
2-3/4"(69.9) |
0.46(1.8) |
23 (87) |
16,836 (1186) |
56 (210) |
16,665 (1174) |
93 (350) |
9,999 (705) |
139 (526) |
6,666 (470) |
208 (788) |
4,444 (313) |
3"(76.2) |
0.55(2.1) |
28 (104) |
14,147 (997) |
66 (250) |
14,003 (987) |
110 (417) |
8,402 (592) |
165 (625) |
5,601 (395) |
248 (938) |
3,734 (263) |
3-1/2"(88.9) |
0.75(2.8) |
37 (142) |
10,394 (732) |
90 (341) |
10,288 (725) |
150 (568) |
6,173 (435) |
225 (851) |
4,115 (290) |
337 (1277) |
2,744 (193) |
4"(101.6) |
0.98(3.7) |
49 (185) |
7,958 (561) |
118 (445) |
7,877 (555) |
196 (741) |
4,726 (333) |
294 (1112) |
3,151 (222) |
441 (1668) |
2,100 (148) |
4-1/2"(114.3) |
1.24(4.7) |
62 (235) |
6,288 (443) |
149 (563) |
6,224 (439) |
248 (938) |
3,734 (263) |
372 (1407) |
2,489 (175) |
558 (2111) |
1,660 (117) |
Input Power:BHP(Kw) |
253(188) |
600(448) |
600(448) |
600(448) |
600(448) |
||||||
