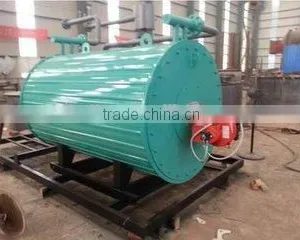

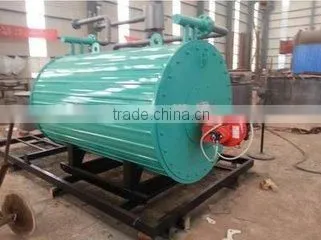

700kw Diesel Oil Molten Salt Furnace for Distillation
US$ 32,000 - 36,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gas/Oil Fired Thermal Oil Heater/ Thermal Oil BoilerNegotiableMOQ: 1 Set -
Commercial Boilers Save Energy Boiler High Efficient BoilerNegotiableMOQ: 1 Set
-
for Textile Industry Gas Thermal Fluid HeaterNegotiableMOQ: 1 Set
-
Textile Printing and Dyeing Industry Gas Fired Thermal Oil HeaterUS$ 1 - 9MOQ: 1 Set
-
80% Efficency Vertical Woodchip Fired Thermal Oil BoilerUS$ 0.01 - 1MOQ: 1 Set
Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Water Tube
Pressure
High Pressure
Style
Horizontal
Fuel
Oil-fired
Place of Origin
China
Brand Name
Bidragon
Model Number
RYQ
Output
Other, hot liquid salt, Hot liquid salt
Dimension(L*W*H)
5000*1900*2420MM
Weight
7812.236 kg
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Diesel Oil Molten Salt Furnace
1. Brief introduction:

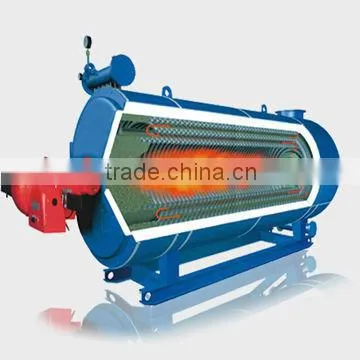

Molten salt furnace takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it’s thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.
All Urnaqce are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.
2. Main characters:
- High automaticity, prompt start and stop, high reliability.
- High thermal efficiency, completely burning, stable output, better adaptability to variable load.
- Compact structure, small area requirement.
- Less auxiliaries, easy installation.
- Less pollutant emission, can reach higher Environmental protection index.
- Long lifespan.
3. Parameters:
| Type | YYW60 Y(Q) | YYW120 Y(Q) | YYW180 Y(Q) | YYW240 Y(Q) | YYW350 Y(Q) | YYW470 Y(Q) | YYW700 Y(Q) | YYW950 Y(Q) | YYW1200 Y(Q) | YYW1400 Y(Q) |
| Capacity104kcal/h | 5 | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 |
| Capacity MW | 0.06 | 0.12 | 0.18 | 0.24 | 0.35 | 0.47 | 0.7 | 0.95 | 1.2 | 1.4 |
| Thermal Efficiency % | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 83 | 84 |
| Pressure Map | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. Temp. °C | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Circulation Oil m3/h | 10 | 12.5 | 20 | 20 | 40 | 60 | 80 | 100 | 100 | 100 |
| Pipe DN | 50 | 50 | 65 | 65 | 80 | 100 | 100 | 125 | 125 | 125 |
| System Power KW | 5 | 5 | 5 | 8 | 10 | 15 | 20 | 45 | 55 | 55 |
| Fule | diesel.oil.gas.etc. | |||||||||
