Specifications

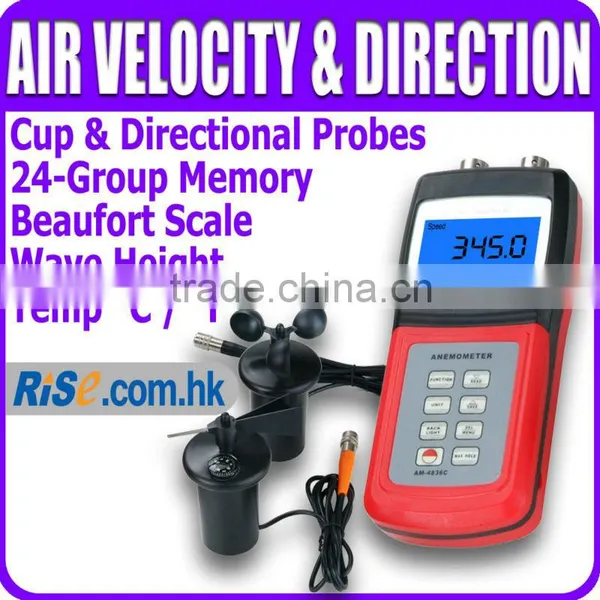

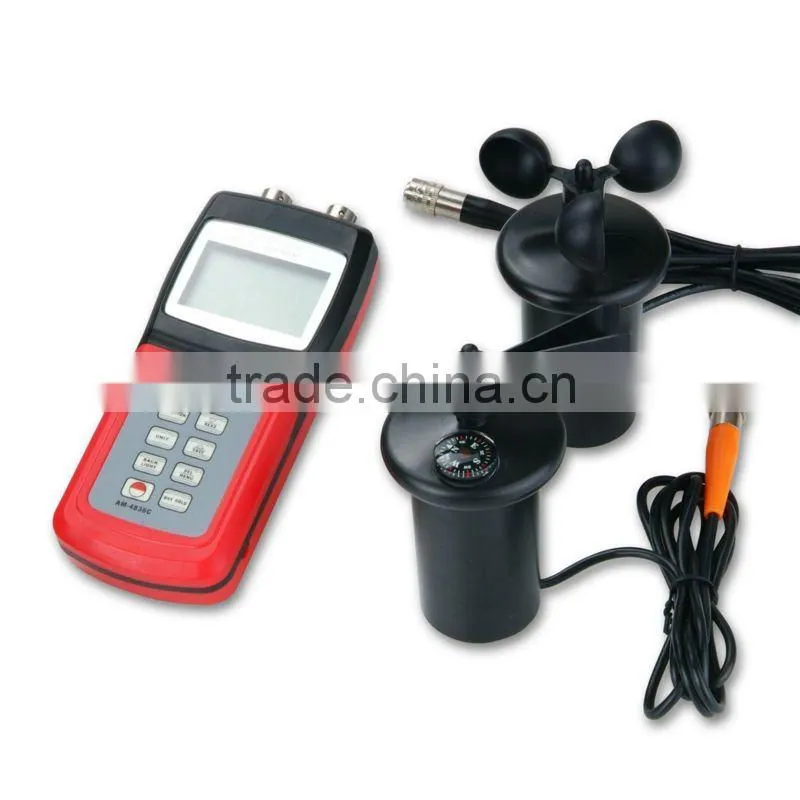

Professional Thermo-Anemometer with 3-Cup and Directional ProbesBrief Description
This professional anemometer (AM-4836C) works with a3-cup velocity probe and directional probe for collecting various data with high accuracy. The useful device can determine and memorize 24 groups of following data: air velocity, air flow, Beaufort Scale, Wind Direction, Wave Height and Air Temperature.
Features
Wide applications for professionals covering:
a. Data collection for boiler
b. Refrigeration industry
c. Ventilation duct
d. Navigation measurement
e. Weather forecast
f. Collection of weather datum for outdoor busywork and fire department
Specification
A. General Specifications

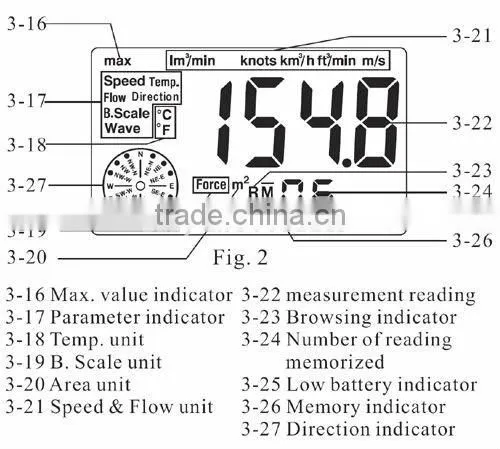

- LCD display : 4 digits, 0.5" (13mm) LCD
- Measurement units
a. Air Velocity: m/s, km/h, ft/min, knots
b. Air Flow: CMM (m3 / min) ; CFM (ft3 / min)
c. Beaufort Scale: Force
d. Wave Height: m
e. Direction : ° from the North direction
f. Temp: °C and °F - Data hold : Maximum value
- Can memorize 24 groups of obtained data and be able to recall from the meter at anytime.
- Sampling rate: reading per second approx.

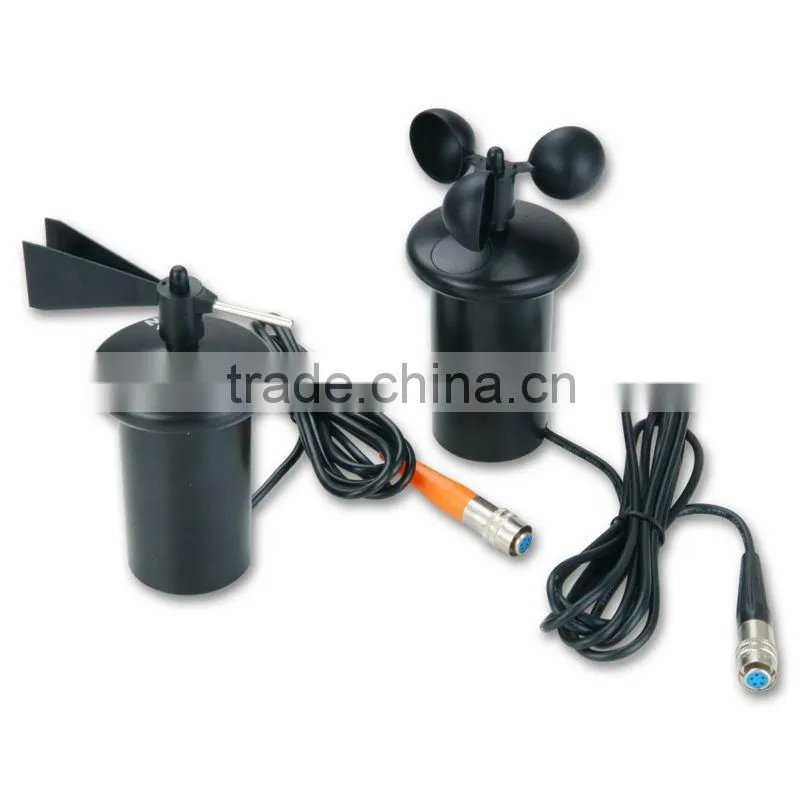

- Air velocity / flow sensor: 3-cup probe
- Direction probe : Low friction probe
- Temperature sensor : Precision thermistor
- Automatic power off : 0 - 9 minutes set by users
- Operating Temperature : 0 °C to 50 °C (32 °F to 122 °F)
- Operating Humidity: Max. 80% RH
- Power Supply : 4 x 1.5 AAA size Batteries (included)
- Item weight : 260g (after inserting batteries and including probe)
- Dimensions of main unit : 156 x 67 x 28 mm (6.14' x 2.64 x 1.1' inch)
- Dimensions of Velocity sensor : 65 x 65 x 115 mm (2.56 x 2.56 x 4.53' inch)
- Dimensions of Direction sensor : 86 x 69 x 115 mm (3.39 x 2.72 x 4.53' inch)
B. Range Specifications
|
Range |
Resolution |
Accuracy |
Air Velocity |
|
|
|
m/s (meters per sec) |
0.4 - 45.0 m/s |
0.1 m/s |
± (2% + 0.1m/s) |
km/h (kilometers per hour) |
1.4-162.0 km/hr |
0.1km/hr |
± (2% + 0.1km/hr) |
ft/min (feet per min) |
80 - 8860 ft/min |
0.1ft/min |
± (2%+1ft/min) |
knots (nautical MPH) |
0.8-88.0knots |
0.1 knots |
± (2% + 0.1 knots) |
Air Flow |
|
|
|
CMM (cubic meters/min) |
0 - 9999 m3/min |
0.001 to 1 |
± (2% + 1 m3/min) |
CFM (cubic ft/min) |
0 - 9999 ft3/min |
0.001 to 1 |
± (2% + 1 ft3/min) |
Beaufort Scale |
0 - 12 |
0.1 |
± 0.5 |
Direction |
0 - 360° |
22.5° |
± 22.5° |
Wave Height |
0 - 14 |
0.1 |
± 0.1 |
Air Temperature |
32°F - 140°F |
0.1°F |
0.9°F |
|
0°C -60°C |
0.1°C |
0.5°C |

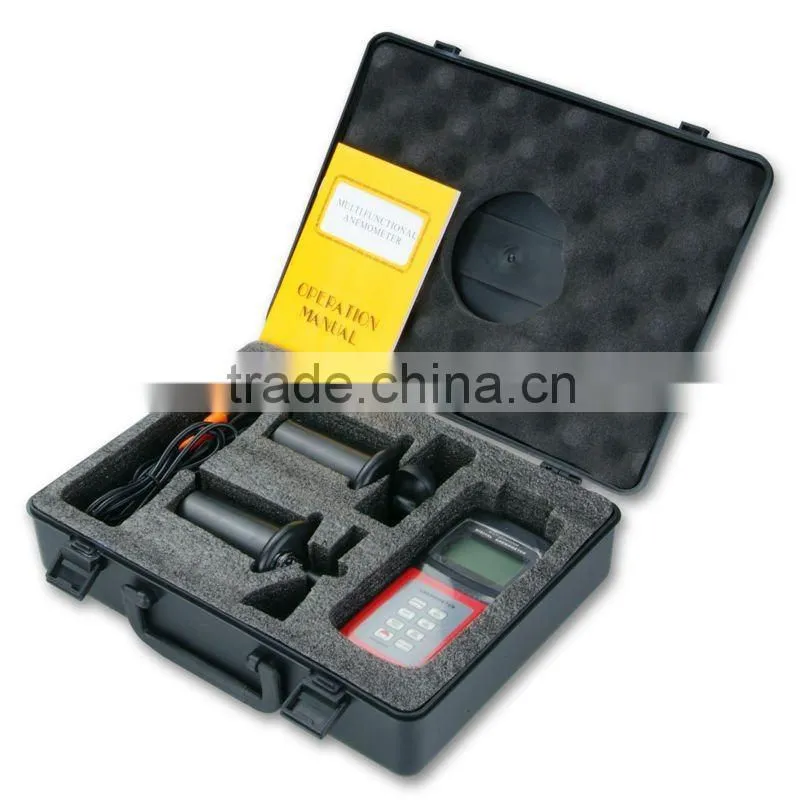

One Set Included
- 1pc x 3-cup Thermo-Anemometer (main unit)
- 1pc x 3-cup Velocity Probe
- 1pc x Direction Probe
- 4pcs x AAA 1.5V batteries
- 1 x instruction booklet
- Standard factory package
