Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter

Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter thumbnail-1
Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
AN-103
Contact Supplier Request Quote Chat Now
Rise Enterprise Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number AN-103

Specifications

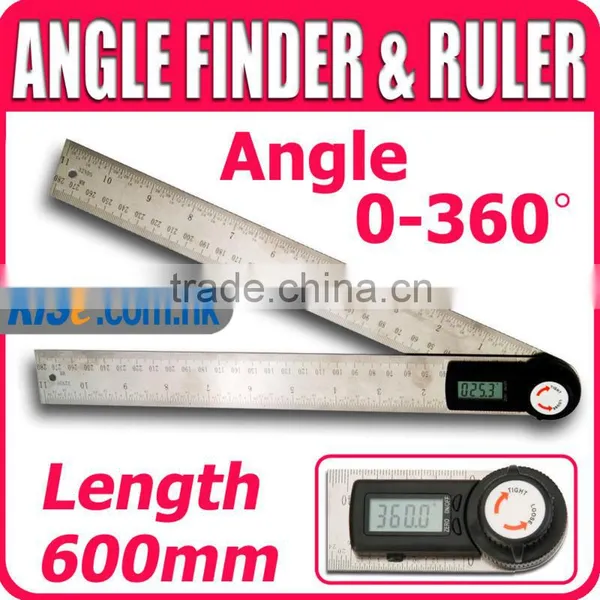

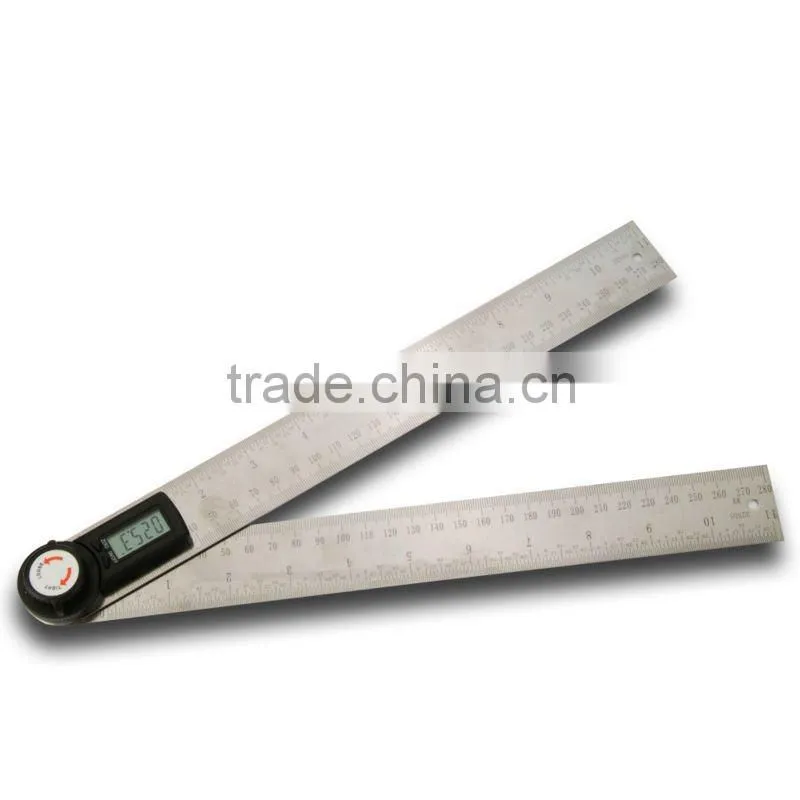

2-in-1 360 Degree Angle Finder with 600mm Ruler

Brief Description



This 2-in-1 Angle Meter with Rulermeasures and lays out both angle and lengthaccurately and quickly. The total length of ruler is long and up to 600 mm. This angle meter is featured with wide measuring range up to 360° , High Resolution (0.1° ) and High Accuracy (0.3°). It has stable locking function can lock the measurement at any angle.

You can instantly measure angles within a 360° range, making it useful for layout work, machine set-up (table-saw blades, jointer fence etc) and trim installation. The flat andstraight edges of the meter areperfect for marking accurate lines with a marker or pencil. It could be well used into various fields besides of Angle ruler, Straight ruler and Square Ruler.





Features

  • Measure angle and length (metric and imperial scale)
  • Easy to measure all kinds of angle and draw lines
  • Well used into various fields Angle Ruler, Straight Ruler and Square Ruler

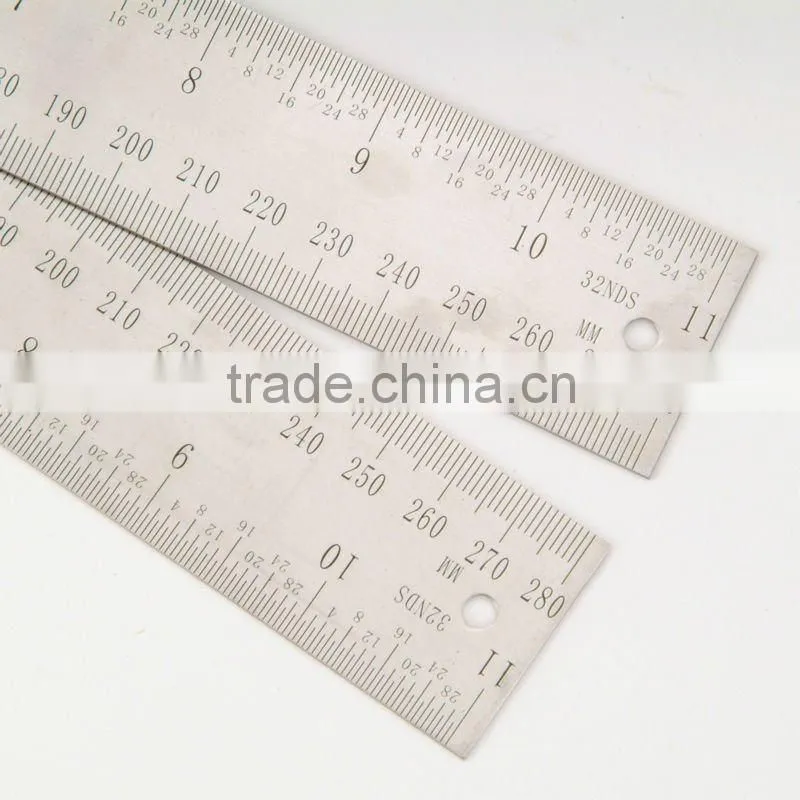

  • Ruler made by durable stainless steel
  • Wide measuring range up to 360°
  • Total Length up to 600 mm
  • High resolution of 0.1° and easily transfer miter angles with no calculations
  • Zero Setting function

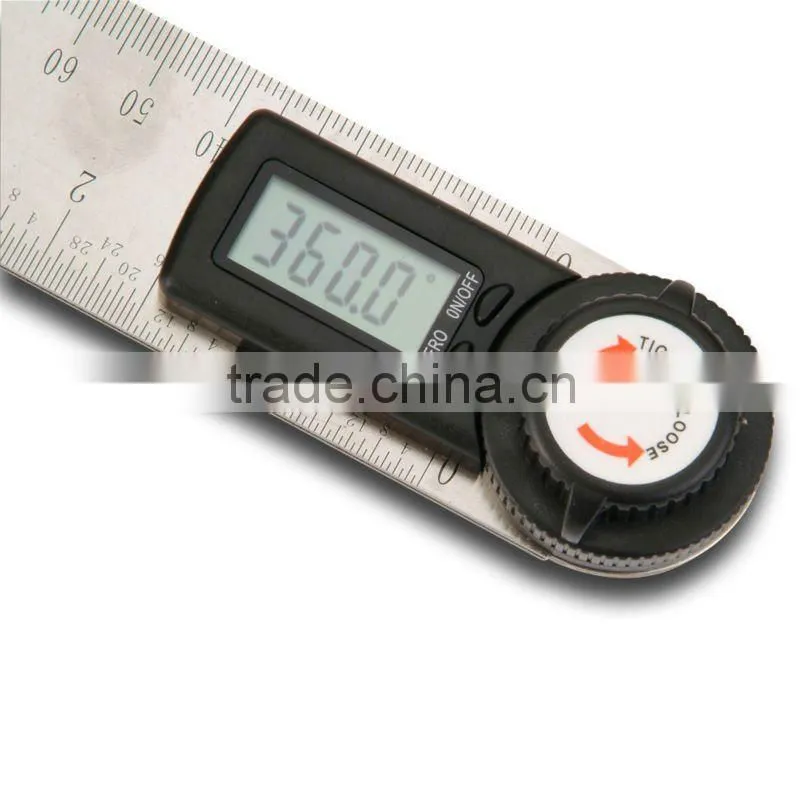

  • Analogue quadrant for easy reading
  • Long Battery Life (more than 5000 hours in continuous use)
  • Stable locking function can lock the measurement at any angle
  • Compact structure to achieve convenient carrying and use





Specifications

  • Measuring Range (Angle): 000.0 ~ 999.9° (More than 999.9° incorrect display)
  • Measuring Range (Ruler): 280 mm (11 inch) each blade/arm
  • Resolution: 0.1°
  • Accuracy: 0.3°

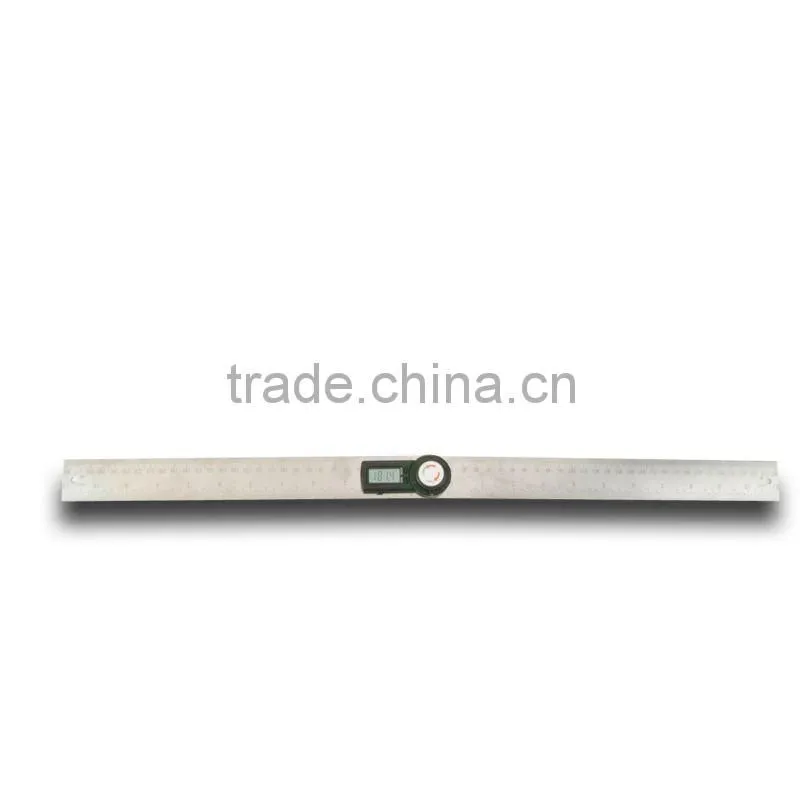

  • Total Ruler Length: 600 mm
  • Working Temperature: 0~ 50 °C (32 ~ 122 °F)
  • Working Humidity: ≤85 % R.H.
  • Working Current: ≤30 µA (More than 5000 hours in continuous use)
  • Power: 1 x CR2032 3V Lithium Battery (not Included)
  • Item Size: approx. 317 (L) x 35 (W) x 20 (D) mm (12.5' x 1.38' x 0.79' inch)
  • Item Weight: approx. 245 g (8.64 oz)



One Set Included

  • 1 x Digital Angle Meter with Ruler (360°)
  • 1 x Instruction Sheet
  • Standard Factory Package

 Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter

Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter

Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter

Digital AngleFinder 360 Degree 2in1 Protractor Ruler Angle Meter
