Help CenterAcceleration Mechanical Shock Tester
Related Products
Specifications

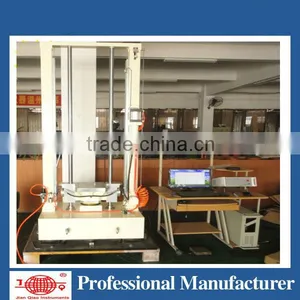

Hydraulic Hoist Vertical Shock TesterJQ-2500 Hydraulic Hoist Vertical Shock System

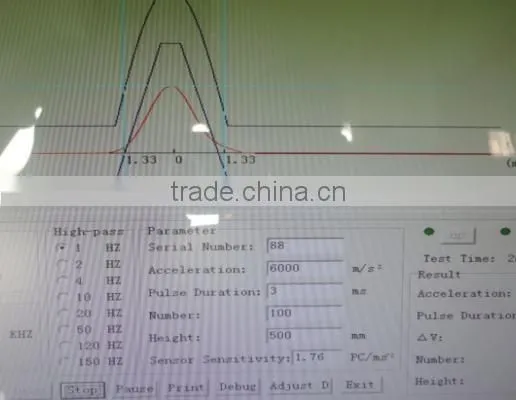

Automatic hydraulic hoist type; used to simulate the actual shock in the real world, measure and identify product fragility levels and evaluate protective packaging for structure optimization and improvement. Support half-sine wave, terminal-peak sawtooth wave and square wave shock tests.
Features
1.Two or more guidance shafts, hydraulic hoist type. Lifting with high balance and little noise.
2. Optimized smithing or foundry table made of magnesium alloy is of high rigidity and noiseless at high frequency
3. Inner brake system generates great skid force and guarantees anti-second shock.
4.Digital controller for hoist height, with perfect repeatability.
5.Buffer base effectively reduces the shock effect for the house floor, there is no need to build special base. It's quite convenient for the installation.
Model |
JQ-1500 |
JQ-2500 |
Test Load(KG) |
2 |
5 |
Shock impact Acceleration(M/s2) |
15000 |
6000 |
Impulse Duration (ms) |
0.5-11 |
0.1-11 |
Platform size(mm) |
120*120 |
500*400 |
Platform weight(KG) |
1100 |
1200 |
Dimension(mm) |
700*400*2240 |
1000*800*2000 |
Power Consumption(kVA) |
0.5 |
0.5 |
Power supply |
AC 380V,50Hz |
|
Applicable standard |
GB/T2423.5,GB/T2423.6,IEC68-2-27 |
|
Send Inquiry to This Supplier
