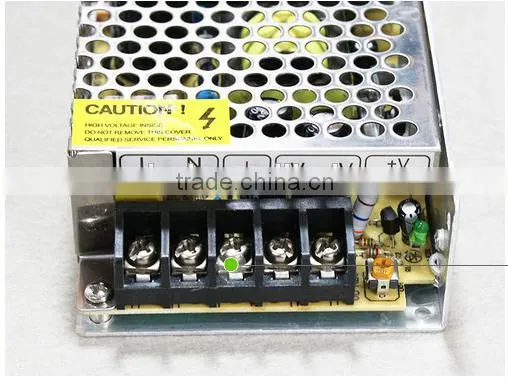

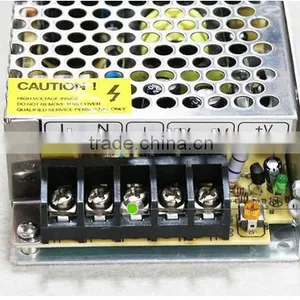

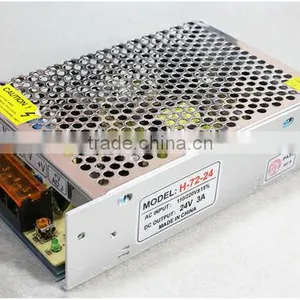

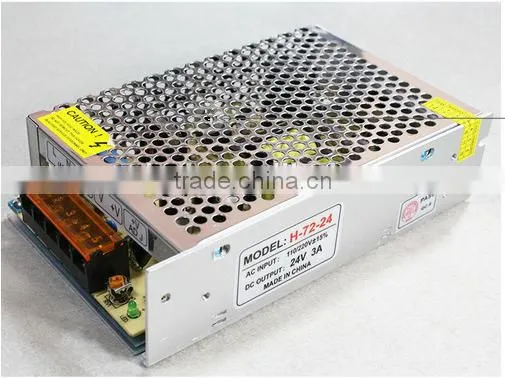

Switching Power Supply 24v 3a for Cctv Camera,led

Name: Switching Power Supply 24v 3a for Cctv Camera,led
Brand: Meind
SKU: 109936047

US$ 4.72 - 4.72 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Meind

Model Number:

MND-24V 3A

Shenzhen Meind Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shekou Yantian or as appointed

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Meind

Model Number MND-24V 3A

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 110V-264VAC

Output Voltage 24V

Output Frequency 47-63HZ

Output Current 3A

Product Description

Specifications

MODEL		S-75-5	S-75-12	S-75-24	S-75-48
OUTPUT	DC VOLTAGE	5V	12V	24V	48V
	RATED CURRENT	12A	6A	3A	1.6A
	CURRENT RANGE	0 ~ 12A	0 ~ 6A	0 ~ 3A	0 ~ 1.6A
	RATED POWER	60W	72W	72W	72W
	RIPPLE & NOISE (max.)	70mVp-p	120mVp-p	120mVp-p	200mVp-p
	VOLTAGE ADJ. RANGE	+10,-5%	±10%	±10%	±10%
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	200ms,100ms,30ms at full load
	HOLD TIME	100ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	85~264VAC or 240~370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	77%	80%	84%	85%
	AC CURRENT	2A/115VAC 1A/230VAC
	INRUSH CURRENT (max.)	COLD START 18A/115V 36A/230V
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVERLOAD	Above 105%~150% rated output power
	OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75~6.75V	13.8~16.2V	27.6~32.4V	52.2~64.81V
	OVER VOLTAGE	Protection type :Shut off
ENVIRONMENT	WORKING TEMP.	-20 ~ +60°C
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30 ~ +85°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ (0 ~ 40°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min
SAFETY & EMC	SAFETY STANDARDS	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMC EMISSION & IMMUNITY	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS	MTBF	500K hrs min
OTHERS	DIMENSION	159×97×38mm (LWH) 0.49kg
