Home > Instruments & Meters > Meter for Electricity > Multimeter > Digital Ohm USB CD Degree Continuity Frequency Diode Voltmeter Thermometer Multimeter

Digital Ohm USB CD Degree Continuity Frequency Diode Voltmeter Thermometer Multimeter

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

MM-102

Measuring Current Range:

600μA-10A

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number MM-102

Measuring Current Range 600μA-10A

Measuring Voltage Range 600mV-1000V(DC);600mV-700V(AC)

Measuring Resistance Range 600 Ω-60 MΩ

Measuring Capacitance Range 60 nF-300 μF

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F)

Dimensions 180 (L) x 85 (W) x 40 (H) mm (7.01 x 3.35 x 1.57 inch)

Specifications

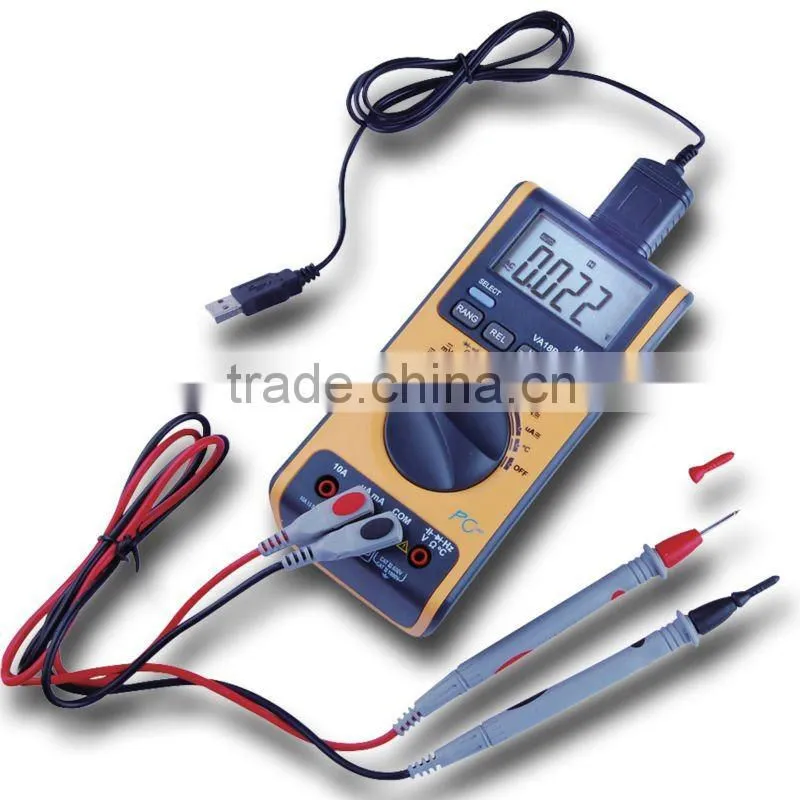

Digital Multimeter with PC Connection (Windows 7 / Vista / XP)

Brief Description

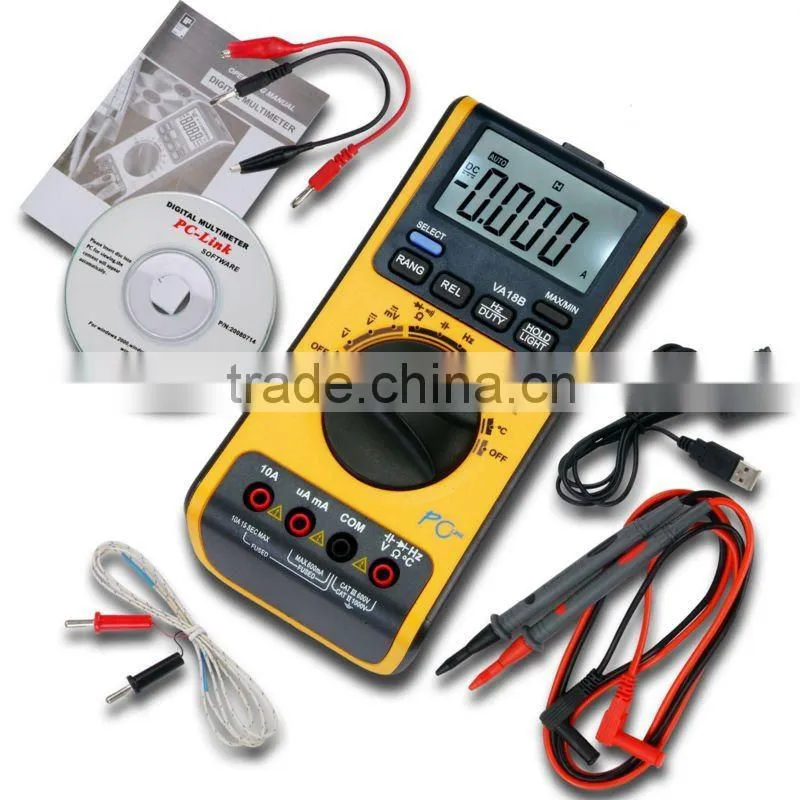

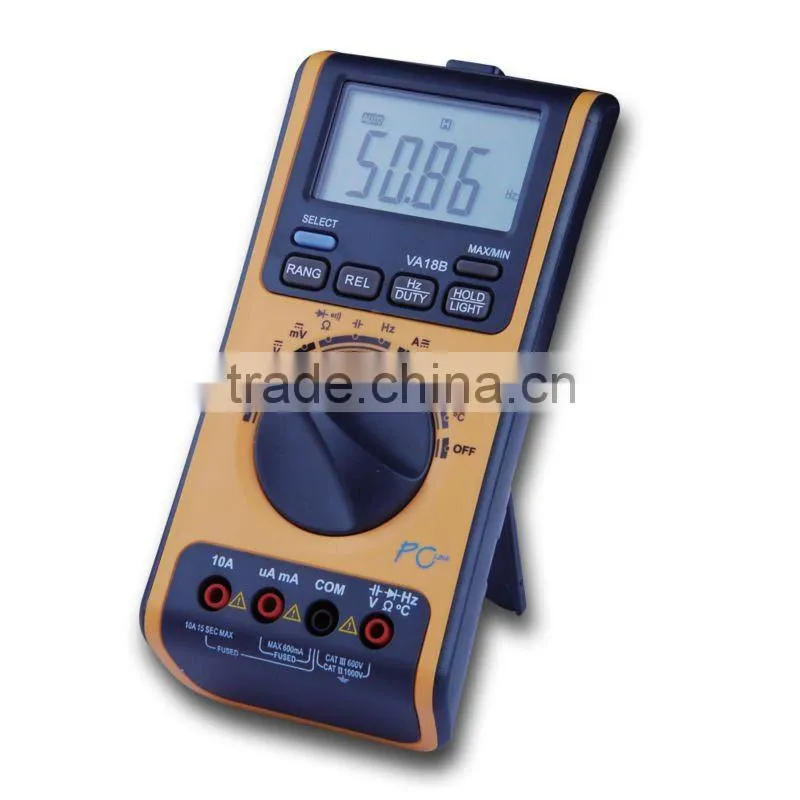

This is a digital Multimeter with PC Connection. The multimeter has auto and manual range options. With autorange, the meters can select the best range for the input detected and allows you to set testing point without resetting the range. With manual range, you can select the range whatever you want and allows you to lock the meter in a specific range. With novel design and functionality, the multimeter was grantediF product design award in Hannover.

This meter measures DC & AC Current and Voltage, Resistance, Capacitance, Frequency, Temperature (°C), Diode and Continuity Test. All these measured data can be recorded, analyzed and processed in a computer. The meter also has functions of Data Hold, Over range protection, Backlight LCD display and Auto Power Off.

This is an ideal tool for in schools, laboratories, industries and home applications.

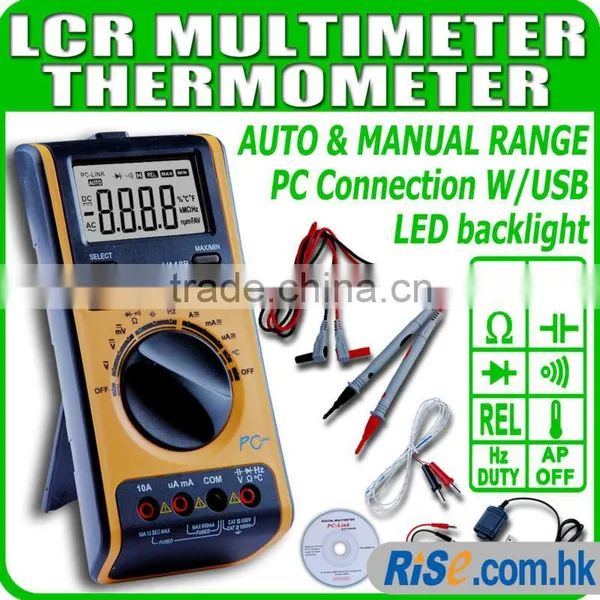

Features

Large LCD display with LED backlight

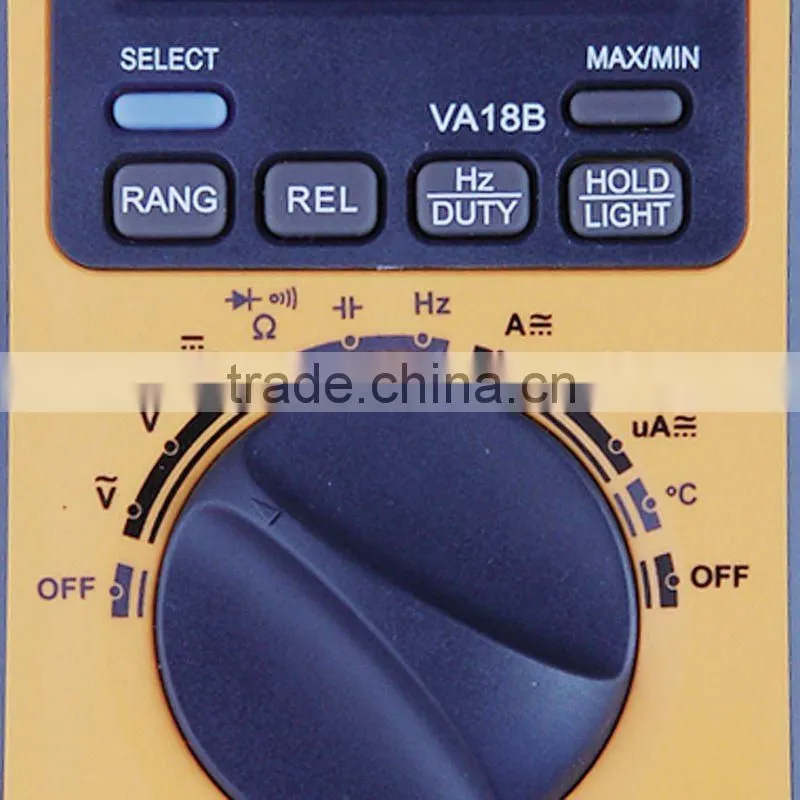

Auto and Manual Range

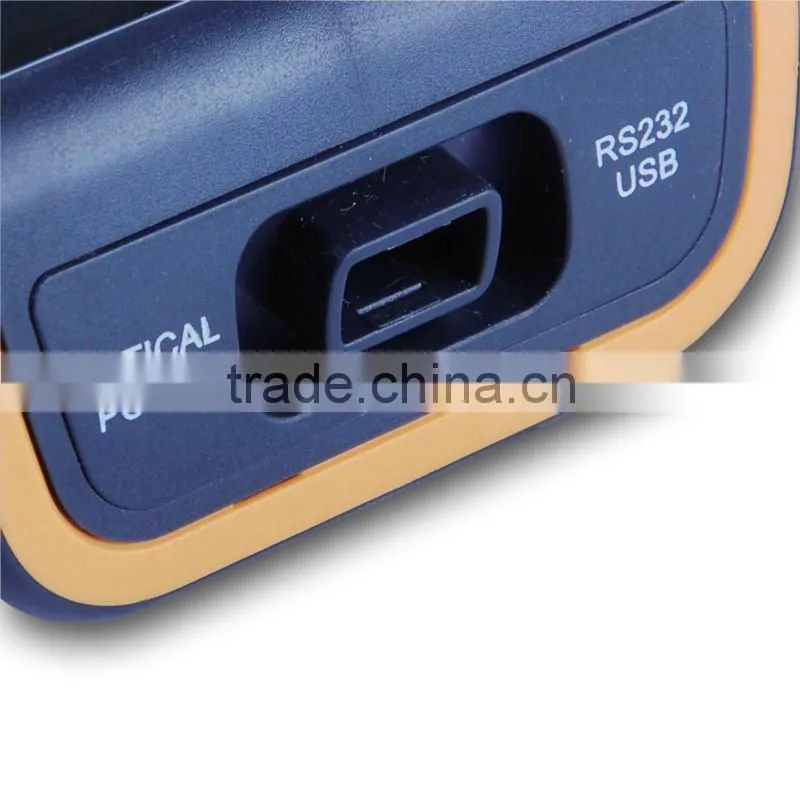

6000 counts full feature with PC-Link software interface (USB)
Performs Diode test, Temperature Measurement, Frequency and Duty Cycle, Relative Measurement
Data hold function, Minimum and Maximum value
Auto power off and low power indication
Over range indicator
In conformity with IEC1010-1, CAT.II 1000 V, CAT. III 600 V
Fuse and diode protected circuit
Electronic protection system with double insulation
Convenient fuse and battery change design
Compatible with Windows 7 (32 & 64 bit), Vista (32 & 64 bit), XP, 2000, ME

Specifications:

Electrical Specifications:

Circumstance Temperature: 18 ~ 28 °C (64.4 ~ 82.4 °F)

Relative Humidity: 0 ~ 75 %

DC Voltage

Range	Resolution	Accuracy
600 mV	0.1 mV	± (0.5 % of reading + 8 digits)
6 V	1 mV	± (0.8 % of reading + 5 digits)
60 V	10 mV
600 V	100 mV
1000 V	1 V	± (1.0 % of reading + 10 digits)

Input Impedance: > 10 MΩ

Common Mode Rejection Ratio: DC voltage: > 100 dB at DC 50 or 60 Hz

Normal Mode Rejection Radio: DC voltage: > 45 dB at 50 Hz or 60 Hz

AC Voltage

Range	Resolution	Accuracy
600 mV	0.1 mV	± (3.0 % of reading + 3 digits) Manual Range Only
6 V	1 mV	± (1.0 % of reading + 3 digits)
60 V	10 mV
600 V	100 mV
700 V	1 V	± (1.5 % of reading + 3 digits)

Frequency Range for AC Voltage: 40 to 400 Hz

Response for AC Voltage: Average, calibrated in rms of sine wave.

Overload Protection: 1000 V DC or 700 V AC rms

Input Impedance (Nominal): AC voltage: > 10 MΩ

Common Mode Rejection Ratio: AC voltage: > 60 dB at DC 50 or 60 Hz

Normal Mode Rejection Ratio: DC voltage: > 45 dB at 50 or 60 Hz

DC Current

Range	Resolution	Accuracy
600 μA	0.1 μA	± (1.5 % of reading + 3 digits)
6000 μA	1 μA	± (1.5 % of reading + 3 digits)
60 mA	0.01 mA	± (1.8 % of reading + 5 digits)
600 mA	0.1 mA	± (1.8 % of reading + 5 digits)
6 A	1 mA	± (2.0 % of reading + 5 digits)
10 A	10 mA	± (2.0 % of reading + 5 digits)

AC Current

Range	Resolution	Accuracy
600 μA	0.1 μA	± (1.8 % of reading + 5 digits)
6000 μA	1 μA	± (1.8 % of reading + 5 digits)
60 mA	0.01 mA	± (2.0 % of reading + 8 digits)
600 mA	0.1 mA	± (2.0 % of reading + 8 digits)
6 A	1 mA	± (3.0 % of reading + 8 digits)
10 A	10 mA	± (3.0 % of reading + 8 digits)

Frequency Range for AC Current: 40 to 400 Hz

Response for AC Current: Average, calibrated in rms of sine wave

Overload Protection: F 10A / 600 V fuse for 10 A range. F 750 mA / 600 V fuse for μA and mA ranges.

Maximum Input Current: 600 mA DC or 600 mA AC rms for μA and mA ranges, 10 A DC or 10 A AC rms for 10 A ranges

For measurements > 6 A, 4 minutes maximum ON to measure 10 minutes OFF; Above 10 A unspecified.

Frequency (10 Hz ~ 1 MHz)

Range	Resolution	Accuracy
99.99 Hz	0.01 Hz	± (0.1 % of reading + 3 digits)
999.9 Hz	0.1 Hz
9.999 kHz	0.001 kHz
99.99 kHz	0.01 kHz
999.9 kHz	0.1 kHz

Overload Protection: 250 V DC or 250 V AC rms

Resistance

Range	Resolution	Accuracy
600.0 Ω	0.1 Ω	± (0.5 % of reading + 3 digits)
6.000 kΩ	1 Ω	± (0.5 % of reading + 2 digits)
60.00 kΩ	10 Ω
600.0 kΩ	100 Ω
6.0 MΩ	1 kΩ
60.00 MΩ	10 kΩ	± (1.5 % of reading + 3 digits)

Overload Protection: 250 V DC or 250 V rms AC

Diode Test

Range	Resolution	Accuracy
1 V	0.001 V	1.0 % uncertainty

Forward DC current approximately 1 mA

Reversed DC Voltage approximately 1.5 V

Overload protection: 250 V DC or 250 V rms AC

Continuity Check

Range	Resolution	Test Condition
600 Ω	0.1 Ω	Open Circuit Voltage: approx. 0.5 V

Description: Continuity beep ≤ 50 Ω

Overload Protection: 250 V DC or 250 V rms AC

Temperature

Range	Resolution	Accuracy
-55 ~ 0 °C	0.1 °C	± (5.0 % of reading + 4 °C)
1 ~ 400 °C	0.1 °C	± (2.0 % of reading + 3 °C)
401 ~ 1000 °C	1 °C	± (2.0 % of reading)

Note: The specifications of temperature don’t include thermocouple errors.

Overload Protection: 250 V DC or 250 V rms AC

Capacitance

Range	Resolution	Accuracy
60 nF	10 pF	± (3.0 % of reading + 20 digits)
600 nF	100 pF	± (3.0 % of reading + 10 digits)
6 μF	1 nF
60 μF	10 nF
300 μF	100 nF	± (5.0 % of reading + 10 digits)

Overload Protection: 250 V DC or rms AC

General Specifications

Display: 3 5/6 digits LCD display. Automatic Indication of functions and symbols
Auto and manual range
Environmental conditions: 1000 V CAT.II and 600 V CAT. III
Pollution degree: 2
Maximum Voltage between Terminals and Earth Ground: 700 V AC rms or 1000V DC
Polarity indication: “-“ indicates negative polarity
Sample Rate: 3 times/second for digital data
Fuse Protection: μA and mA: F 750 mA / 250 V Ø5x20; A: F 10A/250 V Ø6.35x31.8
Over range indication: Display ‘0L’
Low battery indication
Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18 °C or > 28°C)
Operating Altitude: < 2000 m (7000 feet)
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F) (<80% R.H., <10 °C non-condensing)
Storage Temperature: -10 ~ 60 °C (14 ~ 140 °F) (<70% R.H., battery removed)
Power Supply: 9 V PP3 Battery (battery not included)
Dimension: approx. 180 (L) x 85 (W) x 40 (H) mm (7.01’ x 3.35’ x 1.57’ inch)
Weight: approx. 310g
