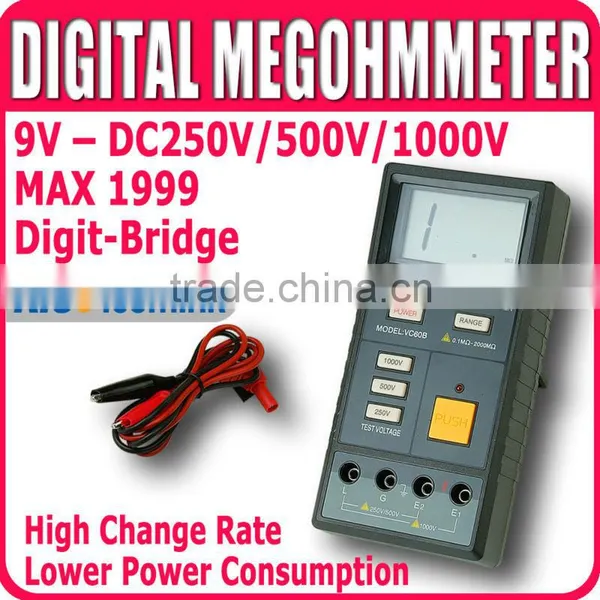

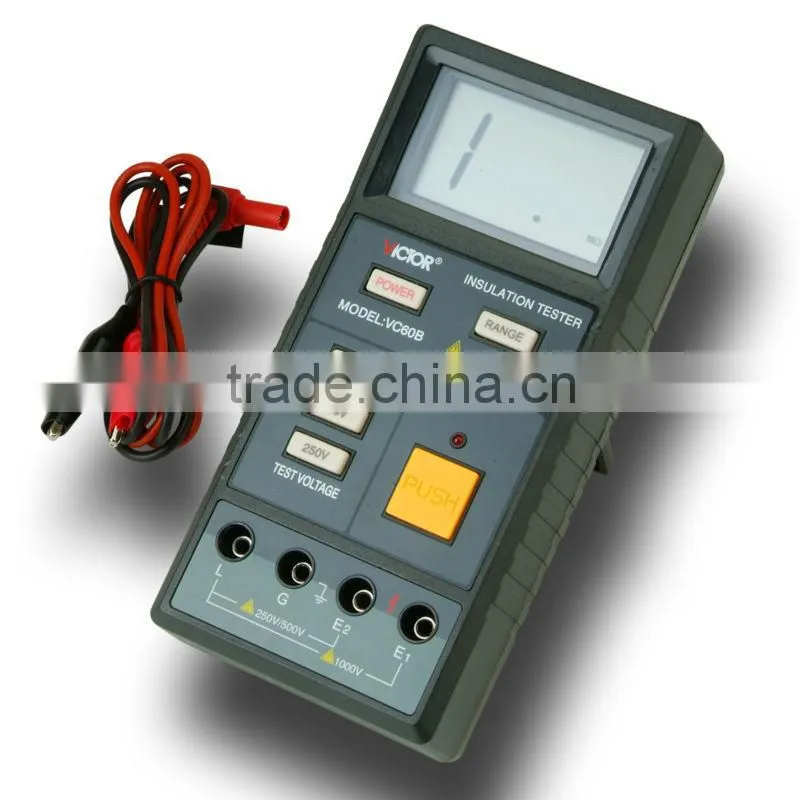

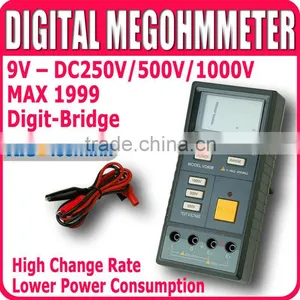

Megohmmeter Meter 9V DC1000V VC60B Megger Megohm Resistance Insulation Tester
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
IT-101
Power:
Electronic
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Air Pressure Meter Manometer Gauge and Differential Pressure -13.79kPa ~ 13.79kPaNegotiableMOQ: 1 Piece -
Digital Air Pressure Meter Manometer Gauge and Differential Pressure Max 20psiNegotiableMOQ: 1 Piece
-
RFID Writer 5 M1 USB SDK Contactless FeliCa ACR122U NFC Smart Card ReaderNegotiableMOQ: 1 Piece
-
5 Gallons Solar Heating Camping Shower Bag 20L Thermometer 92-128 Fahrenheit Hot WaterNegotiableMOQ: 1 Piece
-
5 Gallons/20 Liters Solar Heating Camping Shower Bag Hot Water 45 Centigrade HikingNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
IT-101
Power
Electronic
Specifications
Megohmmeter / Insulation Tester (9V ~ DC 250V / 500V / 1000V)Brief Description
The Digital Meg-Ohmmeter instrument (VC60B) is made by VICTORbrand. It uses lower power consumption, high change rate, inductance energy-DCV converter, change 9 V to DC 250 V / 500 V / 1000 V. Also, it uses digit-bridge resistance measurement for measuring electric insulation resistance.
Features
- Easy and correct readout
- Wide measurement range
- High stability and reliability
- LCD display for low power consumption and clear readout
- Light weight and compact construction for easy operation
- Auto power off and asleep mode
General Specifications
- Display: 60 x 32 mm (2.36 x 1.26 inch) large window LCD with maximum reading of 1999
- Over range indication: MSD "1" display
- Power supply: One 9 V PP3 Battery (not included)
- Power Consumption: unload consumption is less than 300 mW
- Operating Temperature: 0 ~ 40 °C
- Operating Humidity: 30% ~ 85% RH
- Dimension: 80 (W) x 185 (L) x 45 (H) mm (3.15' x 7.28' x 1.77' inch)
- Weight: approx. 360g (12.69 oz)
Electrical Specifications
Test Voltage |
250 V ± 10% |
500 V ± 10% |
1000 V ± 10% |
Range |
0.1 MΩ - 20 MΩ |
0.1 Ω - 50 MΩ |
0.1 MΩ - 100 MΩ |
20 MΩ - 500 MΩ |
50 MΩ - 1000 MΩ |
100 MΩ - 2000 MΩ |
|
Accuracy |
± (4% of reading + 2d) |
||
Short current |
1.7 mA |
1.7 mA |
1.4 mA |
Median Resistance |
2 MΩ |
2 MΩ |
5 MΩ |

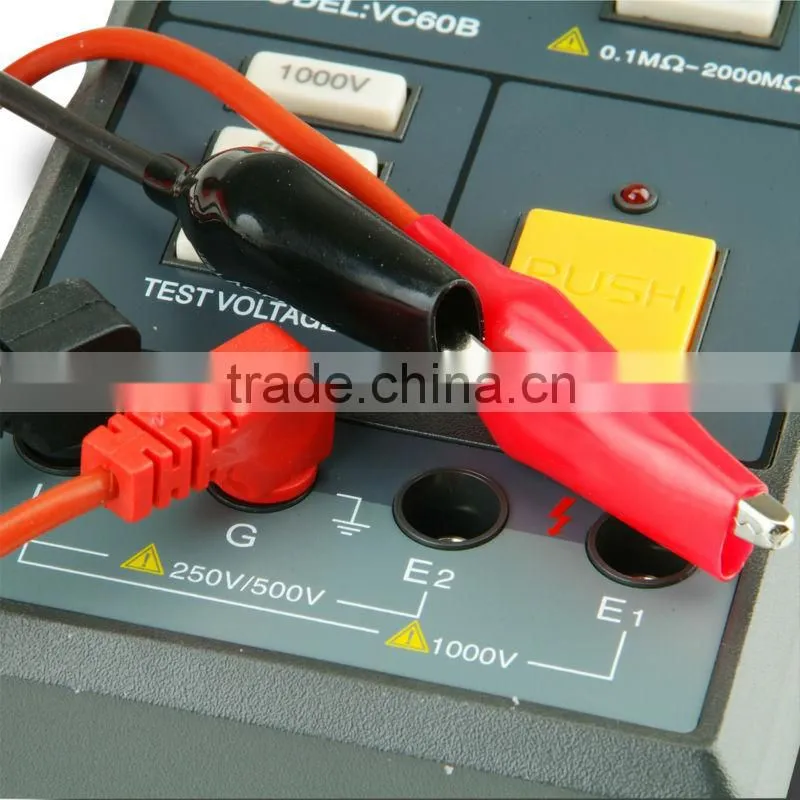

Jack Position |
L, E2 |
L, E2 |
L, E1 |
Note: Median resistance ensures that two terminal voltages is not less than 90% of test voltage of low terminal limit value of measure resistance.
One Set Included
- 1 x Insulation Tester
- 2 x Measurement cables with Clips
- 1 x Instruction Manual
- Standard Factory Package
