Modified Polyester Trickle Varnish R-510
posed of modified heat resistant unsaturated polyester and thinners presented in two-component form.
2.It has gained UL certification (No: E227128) and UL insulation system certification (No: E242776).

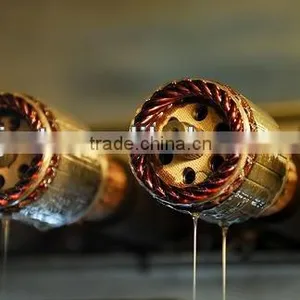

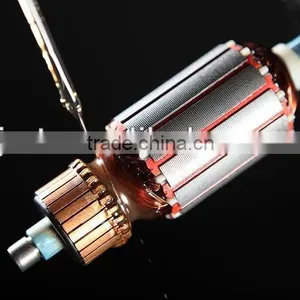

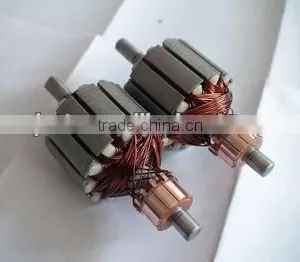

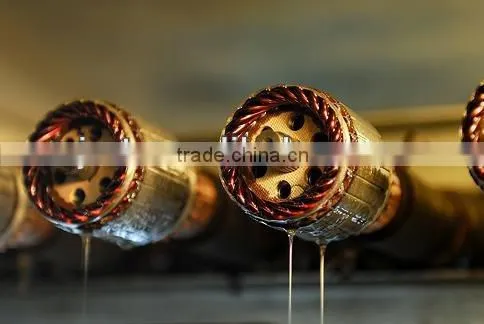

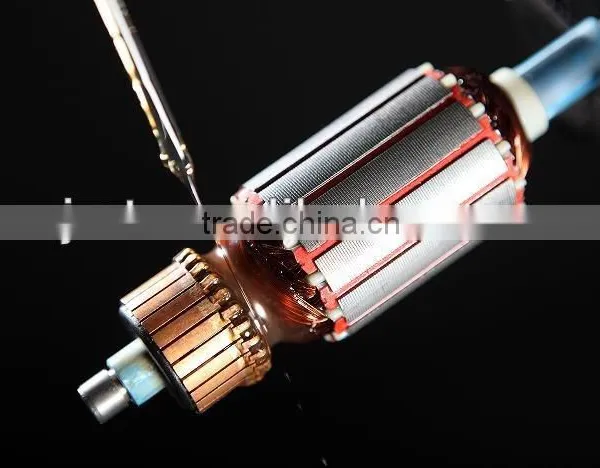

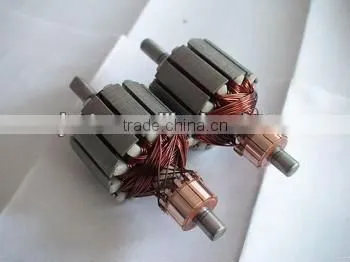

3. With trickling method for high rotation speed rotor, class F and H electrical tools motor and cleaners.
4. also ideal for auto and refrigeration compressor motor.
No. |
Test Item |
Test Method |
Unit |
Value |
1 |
Appearance |
Test Tube |
- |
Brown transparent liquid, no mechanical admixture |
2 |
Viscosity |
4#cup, 23±1°C |
s |
60-100 |
3 |
Gel time |
120°C |
min |
2-6 |
4 |
Curing in thick layer |
110±2°C,1h |
- |
No worse than S1U1I3,2, uniform |
5 |
Dielectric strength |
Normalcy |
MV/m |
≥20 |
6 |
Volume Resistivity |
Normalcy |
Ω·m |
≥1×1013 |
After immersion in water |
≥1×1012 |
|||
Thermal state |
≥1×107 |
|||
7 |
Pot life |
Below 30°C, no gel |
h |
≥8 |
Established in 1992, Rota Group is one of the most professional manufacturers of impregnating varnish, mica tape, potting resin and embedding resin in China. Most products have been approved by ISO9001, 14000, UL, TUV, FDA, RoHS and REACH, widely used in high-voltage motors, wires and cables, household appliances, industrial pumps, and metallurgy equipments etc. We win the trust of the majority of well-known manufactures, like BOSCH, BLACK & DECKER, Fujitsu, Shibaura, REGAL, Siemens, EPCOS, N.P.V. and so on.
Professional quality, creating value for customers. Rota Group lead in the aspects of industry scale, product technology and innovation capacity, we will provide quality products and professional services for you. Welcome you!
