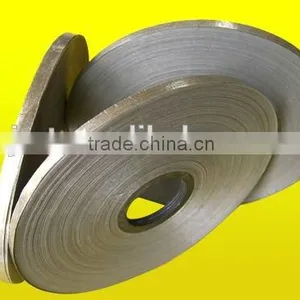

Help CenterFire-Fesistant Mica Tape for Electrical Cables
Related Products
-
Glass Fabric Resin Rich Mica Tape for Large and Medium High Pressure Motor Etc.US$ 11.5 - 11.5MOQ: 1 Roll -
Polmide Film-backed Mica TapeNegotiableMOQ: 1 Roll
-
Resin Poor Electrical Insulation Mica Tape for MotorNegotiableMOQ: 1 Roll
-
Electrical Insulation Mica Tape for High-end Electromagnetic Wire WrappingUS$ 9.2 - 13.4MOQ: 1 Roll
-
Resin Poor Mica Tape R-5442-1ZN Jiaxing VPI Electrical Insulation TapeUS$ 8.2 - 8.2MOQ: 50 Kilograms

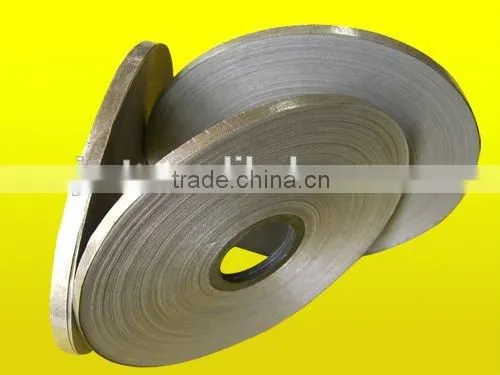

Fire-Resistant Mica Tape
Introduction
R-5461 serials of Fire-resistant Mica Tapes consist of phlogopite mica paper (or synthetic mica paper) impregnated with a special silicone resin and a glass fiber cloth (or Polyethylene film) as supporting agent. These tapes have great flexibility and high tensile strength, and they can be used to create inorganic, fire-resistant insulation for electrical cables.
Tapes
According to mica paper and support agent, R-5461 mica tape has follow different types.
R-5461-P-GS: Single side reinforce phlogopite mica tape with glass fiber cloth;
R-5461-S-GS: Single side synthetic mica tape with glass fiber cloth;
R-5461-P-GD: Double sides reinforce phlogopite mica tape with glass fiber cloth;
R-5461-S-GD: Double sides synthetic mica tape with glass fiber cloth;
R-5461-P-GFD: Double sides reinforce phlogopite mica tape with glass fiber cloth and film;
R-5461-S-GFD: Double sides synthetic mica tape with glass fiber cloth and film;
Qualification (as the Q/R 101-2010 company standard)
Product mode |
R-5461-P-GS |
R-5461-P-GD |
R-5461-P-GFD |
R-5461-S-GS |
R-5461-S-GD |
R-5461-S-GFD |
Normal Thickness (mm) |
0.08-0.15 |
0.14/0.16 |
0.14/0.16 |
0.09-0.15 |
0.14/0.16 |
0.14/0.16 |
Tolerance (mm) |
±0.015 |
±0.015 |
±0.015 |
±0.015 |
±0.015 |
±0.015 |
Length (m) |
500,1000,2000 |
200,500,1000 |
500,1000,2000 |
200,500,1000 |
||
Mica content (%) |
>60 |
>60 |
>60 |
>55 |
>60 |
>60 |
Breakdown Voltage (KV) |
>1.0 |
>1.0 |
>1.0 |
>1.0 |
>1.0 |
>1.0 |
Tensile Strength (N/15mm) |
≥150 |
≥150 |
≥150 |
≥160 |
≥160 |
≥160 |
Binder content (%) |
13±3 |
10±3 |
10±3 |
13±3 |
10±3 |
10±3 |
Fire Grades (°C) |
750°C-840°C,IEC331 |
950°C-1000°C,IEC331 |
||||
