French-Type Plug Automatic Assembly MachineCapacity:30-40PCS/Min
Applied to plugs in switches products for automatic assembly

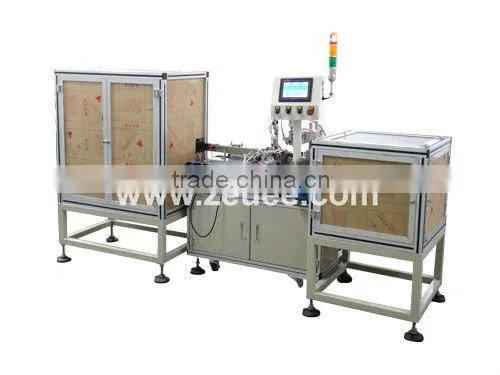

French-Type Plug Automatic Assembly Machine
Specification:
Model:ZEUEE-20120811
Capacity:30-40PCS/Min
Power:AC220V 50HZ 1200W
Pressure:0.5-0.8Mpa
Weight:150KG
Size:2530(L)*1100(W)*1570(H)mm
Usage:Applied to plugs in switches serial products for automatic assembling
Quality:
The accessories of the machine adopted FESTO/SMC original pneumatic component, Taiwan HIWIN precision linear guide, and precision module, which are made of S136, the Mitsubishi PLC , HMI, and other electrical components, which are all using German brand.
Efficiency:
lAutomatically feeding the plug base, plug pole
lFully Automatic assembly, riveting, process monitoring, detecting and sorting of “good” product and “rejected” product
lUnloading the finished product automatically
Intelligence:
It equips with automatic alarming system, which reporting irregular operations and giving the relative solutions in the form of message. It also can induct the incoming materials automatically and point out the lack of materials, predict and record the capacity.
